SPEC® CINT2006 Result

HITACHI

BladeSymphony BS320 (Intel Xeon X5570)

Hardware
CPU Name:	Intel Xeon X5570
CPU Characteristics:	Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz:	2933
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB(6 x 4 GB PC3-10600R, 2 rank, CL=9)
Disk Subsystem:	1 x 73 GB 10000 rpm SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.3, Advanced Platform, Kernel 2.6.18-128.el5 on an x86_64
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081
Auto Parallel:	Yes
File System:	ext3
System State:	Multi-user run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1

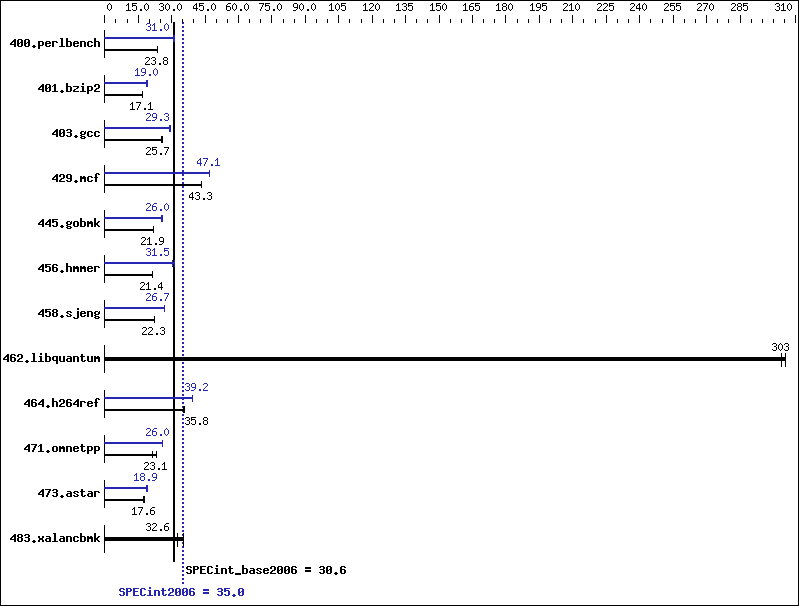

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	411	23.8	411	23.8	410	23.8	315	31.0	314	31.2	316	30.9
401.bzip2	567	17.0	565	17.1	565	17.1	510	18.9	501	19.3	508	19.0
403.gcc	313	25.7	313	25.7	313	25.7	275	29.3	277	29.0	275	29.3
429.mcf	210	43.3	210	43.3	211	43.2	193	47.1	195	46.9	193	47.2
445.gobmk	478	21.9	478	21.9	478	22.0	409	25.6	403	26.0	404	26.0
456.hmmer	436	21.4	435	21.4	434	21.5	305	30.6	296	31.5	297	31.5
458.sjeng	542	22.3	542	22.3	544	22.2	454	26.7	454	26.7	453	26.7
462.libquantum	68.3	303	67.9	305	68.3	303	68.3	303	67.9	305	68.3	303
464.h264ref	623	35.5	618	35.8	617	35.9	564	39.2	564	39.2	564	39.2
471.omnetpp	271	23.1	292	21.4	271	23.1	241	26.0	240	26.0	242	25.8
473.astar	399	17.6	402	17.4	398	17.6	370	18.9	374	18.8	370	19.0
483.xalancbmk	211	32.6	196	35.1	212	32.5	211	32.6	196	35.1	212	32.5

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores
KMP_AFFINITY set to physical,0

BIOS Settings:
 Intel HT Technology = Disabled

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include
456.hmmer:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include
458.sjeng:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include

icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
