SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Supermicro X8DAI (Intel Xeon W3570, 3.2 GHz)

CPU2006 license: 13 Test date: Mar-2009
Test sponsor: Intel Corporation Hardware Availability: Mar-2009
Tested by: Intel Corporation Software Availability: Nov-2007

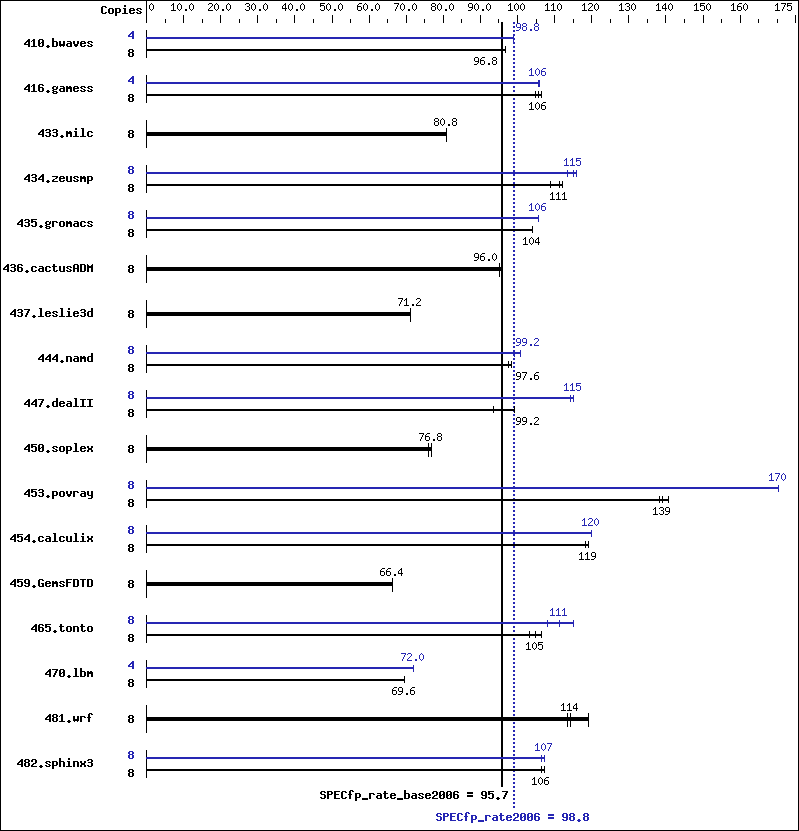

Benchmark results graph
Hardware
CPU Name: Intel Xeon W3570
CPU Characteristics: Intel Turbo Boost Technology up to 3.46 GHz
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 12 GB (3 x 4GB DDR3-1333 CL9, IMHH4GP12A1F1C-13H
T2)
Disk Subsystem: Western Digital Raptor WD740, 10k rpm, 74GB SATA
Other Hardware: None
Software
Operating System: Windows* XP* Professional x64 Edition SP2 Build
3790
Compiler: Intel C++ Compiler Professional 11.0 for Intel 64
Build 20090131 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler Professional 11.0
for Intel 64
Build 20090131 Package ID: w_cprof_p_11.0.072
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1130 96.0 1128 96.8 1128 96.8 4 551 98.8 551 98.8 551 98.8
416.gamess 8 1473 106   1486 106   1493 105   4 741 106   740 106   740 106
433.milc 8 913 80.8 913 80.8 913 80.8 8 913 80.8 913 80.8 913 80.8
434.zeusmp 8 654 111   667 109   649 112   8 629 116   634 115   641 114
435.gromacs 8 550 104   548 104   548 104   8 541 106   541 106   540 106
436.cactusADM 8 1000 95.2 997 96.0 998 96.0 8 1000 95.2 997 96.0 998 96.0
437.leslie3d 8 1058 71.2 1057 71.2 1056 71.2 8 1058 71.2 1057 71.2 1056 71.2
444.namd 8 650 98.4 658 97.6 655 97.6 8 639 101   648 99.2 646 99.2
447.dealII 8 920 99.2 924 99.2 979 93.6 8 799 114   796 115   796 115
450.soplex 8 875 76.0 872 76.8 871 76.8 8 875 76.0 872 76.8 871 76.8
453.povray 8 306 139   307 138   303 141   8 250 170   250 170   250 170
454.calculix 8 556 118   555 119   555 119   8 550 120   551 120   551 120
459.GemsFDTD 8 1277 66.4 1278 66.4 1279 66.4 8 1277 66.4 1278 66.4 1279 66.4
465.tonto 8 751 105   761 103   738 106   8 684 115   728 108   710 111
470.lbm 8 1573 69.6 1572 69.6 1572 69.6 4 764 72.0 764 72.0 764 72.0
481.wrf 8 752 119   783 114   787 114   8 752 119   783 114   787 114
482.sphinx3 8 1469 106   1458 107   1462 106   8 1468 106   1455 107   1455 107

Submit Notes

The config file option 'submit' was used.
the start command with /affinity was used to bind copies to cores

General Notes

 System can be built with an extended ATX case like SuperChassis
 743TQ-865B-SQ and an 885W power supply.

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /Qlowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000
482.sphinx3:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qauto-ilp32   /F1000000000

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE
450.soplex:  basepeak = yes
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.html,
http://www.spec.org/cpu2006/flags/Intel-Winx64-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.xml,
http://www.spec.org/cpu2006/flags/Intel-Winx64-Platform.xml.
