| CPU2006 license: | 19 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5520 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
| Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

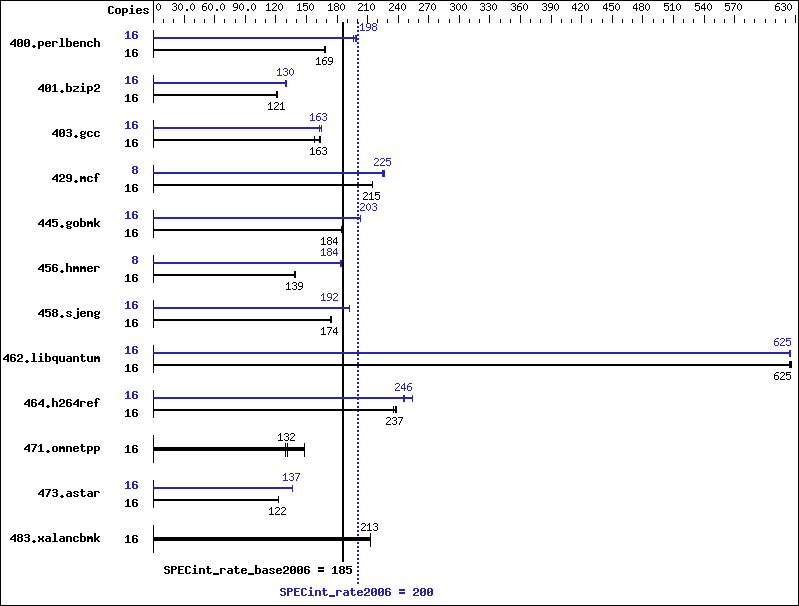

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 925 | 169 | 927 | 169 | 930 | 168 | 16 | 788 | 198 | 787 | 199 | 795 | 197 |
| 401.bzip2 | 16 | 1278 | 121 | 1271 | 122 | 1274 | 121 | 16 | 1186 | 130 | 1190 | 130 | 1186 | 130 |
| 403.gcc | 16 | 790 | 163 | 787 | 164 | 818 | 158 | 16 | 792 | 163 | 791 | 163 | 784 | 164 |
| 429.mcf | 16 | 678 | 215 | 680 | 215 | 679 | 215 | 8 | 322 | 226 | 324 | 225 | 324 | 225 |
| 445.gobmk | 16 | 911 | 184 | 909 | 185 | 912 | 184 | 16 | 828 | 203 | 827 | 203 | 826 | 203 |
| 456.hmmer | 16 | 1072 | 139 | 1076 | 139 | 1071 | 139 | 8 | 406 | 184 | 406 | 184 | 406 | 184 |
| 458.sjeng | 16 | 1111 | 174 | 1111 | 174 | 1112 | 174 | 16 | 1009 | 192 | 1009 | 192 | 1009 | 192 |
| 462.libquantum | 16 | 531 | 625 | 530 | 625 | 531 | 624 | 16 | 531 | 625 | 531 | 624 | 530 | 625 |
| 464.h264ref | 16 | 1502 | 236 | 1483 | 239 | 1493 | 237 | 16 | 1438 | 246 | 1393 | 254 | 1446 | 245 |
| 471.omnetpp | 16 | 759 | 132 | 770 | 130 | 674 | 148 | 16 | 759 | 132 | 770 | 130 | 674 | 148 |
| 473.astar | 16 | 918 | 122 | 917 | 122 | 915 | 123 | 16 | 822 | 137 | 821 | 137 | 823 | 136 |
| 483.xalancbmk | 16 | 518 | 213 | 518 | 213 | 519 | 213 | 16 | 518 | 213 | 518 | 213 | 519 | 213 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
This result was measured on the PRIMERGY TX300 S5. The PRIMERGY TX300 S5 and the PRIMERGY RX300 S5 are electronically equivalent. For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
