| CPU2006 license: | 9006 | Test date: | Feb-2009 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Feb-2009 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7310 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x146.5 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20081105 Package ID: l_cproc_p_11.0.074 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

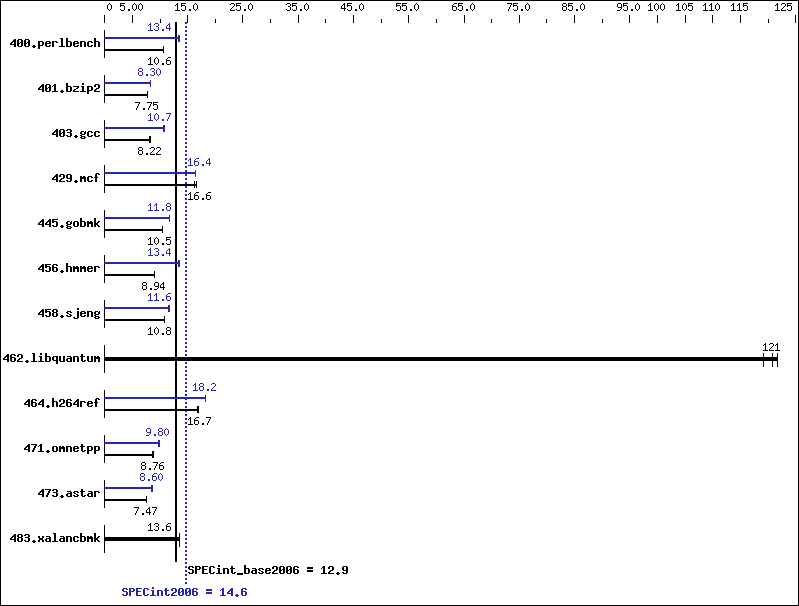

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 926 | 10.5 | 922 | 10.6 | 913 | 10.7 | 729 | 13.4 | 726 | 13.4 | 726 | 13.5 |
| 401.bzip2 | 1239 | 7.79 | 1245 | 7.75 | 1250 | 7.72 | 1164 | 8.29 | 1162 | 8.30 | 1163 | 8.30 |
| 403.gcc | 975 | 8.25 | 979 | 8.22 | 987 | 8.16 | 748 | 10.8 | 758 | 10.6 | 751 | 10.7 |
| 429.mcf | 560 | 16.3 | 549 | 16.6 | 550 | 16.6 | 554 | 16.5 | 555 | 16.4 | 555 | 16.4 |
| 445.gobmk | 999 | 10.5 | 999 | 10.5 | 1000 | 10.5 | 892 | 11.8 | 892 | 11.8 | 891 | 11.8 |
| 456.hmmer | 1043 | 8.94 | 1043 | 8.95 | 1043 | 8.94 | 695 | 13.4 | 695 | 13.4 | 694 | 13.4 |
| 458.sjeng | 1119 | 10.8 | 1120 | 10.8 | 1118 | 10.8 | 1045 | 11.6 | 1047 | 11.6 | 1039 | 11.6 |
| 462.libquantum | 172 | 121 | 170 | 122 | 174 | 119 | 172 | 121 | 170 | 122 | 174 | 119 |
| 464.h264ref | 1307 | 16.9 | 1321 | 16.7 | 1324 | 16.7 | 1217 | 18.2 | 1218 | 18.2 | 1220 | 18.1 |
| 471.omnetpp | 714 | 8.76 | 714 | 8.76 | 717 | 8.72 | 638 | 9.80 | 638 | 9.80 | 637 | 9.81 |
| 473.astar | 939 | 7.48 | 941 | 7.46 | 940 | 7.47 | 816 | 8.60 | 823 | 8.53 | 814 | 8.62 |
| 483.xalancbmk | 508 | 13.6 | 509 | 13.6 | 510 | 13.5 | 508 | 13.6 | 509 | 13.6 | 510 | 13.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to "physical,0"
Platform Notes
Bios settings: Hardware Prefetcher: Enabled Adjacent Cache Line Prefetch: Enabled FSB High Bandwidth Optimization: Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
