SPEC® CFP2006 Result

Bull SAS

NovaScale R480 E1
(Intel Xeon E7430, 2.13 GHz)

SPECfp®_rate2006 = 113

SPECfp_rate_base2006 = 107

CPU2006 license:	20	Test date:	Feb-2009
Test sponsor:	Bull SAS	Hardware Availability:	Nov-2008
Tested by:	Bull SAS	Software Availability:	Nov-2008

Hardware
CPU Name:	Intel Xeon E7430
CPU Characteristics:	1066 MHz system bus
CPU MHz:	2133
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	6 MB I+D on chip per chip, 3 MB shared / 2 cores
L3 Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16 x 2GB DDR2-667 FBDIMM)
Disk Subsystem:	1x146 GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.18.50.0.7.20080502

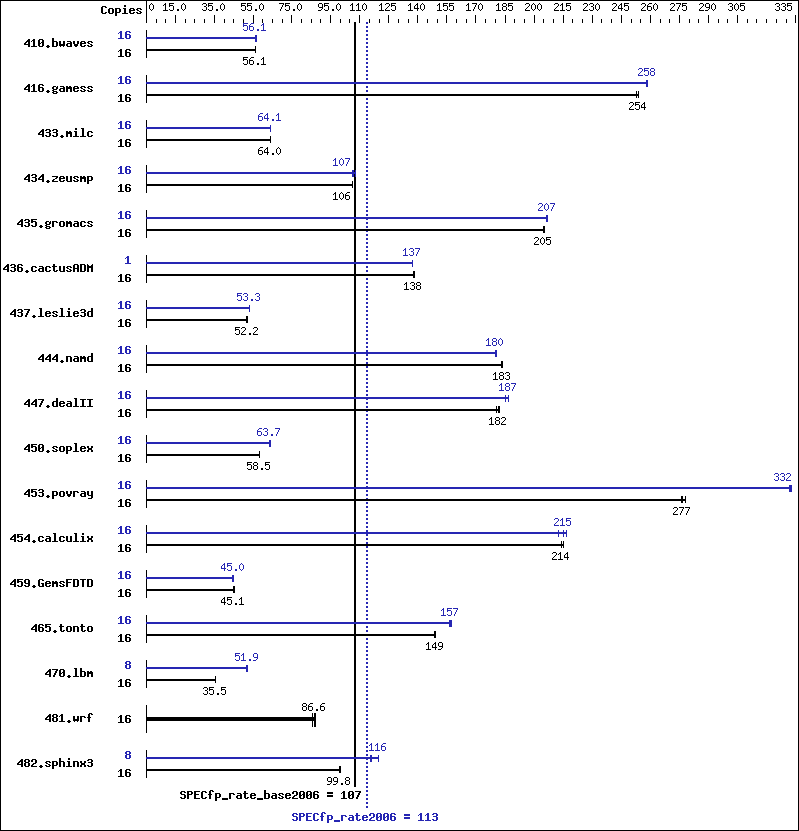

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	16	3875	56.1	3874	56.1	3873	56.1	16	3874	56.1	3841	56.6	3874	56.1
416.gamess	16	1234	254	1234	254	1238	253	16	1214	258	1212	258	1212	258
433.milc	16	2304	63.7	2295	64.0	2296	64.0	16	2295	64.0	2291	64.1	2292	64.1
434.zeusmp	16	1371	106	1367	107	1369	106	16	1364	107	1372	106	1353	108
435.gromacs	16	557	205	557	205	558	205	16	553	207	553	207	553	207
436.cactusADM	16	1389	138	1387	138	1384	138	1	87.0	137	87.2	137	87.2	137
437.leslie3d	16	2902	51.8	2883	52.2	2878	52.3	16	2823	53.3	2821	53.3	2825	53.2
444.namd	16	699	183	699	184	700	183	16	713	180	710	181	712	180
447.dealII	16	1006	182	1014	181	1008	182	16	981	187	981	187	988	185
450.soplex	16	2279	58.5	2280	58.5	2281	58.5	16	2095	63.7	2094	63.7	2093	63.7
453.povray	16	306	278	308	276	308	277	16	257	332	256	333	256	332
454.calculix	16	616	214	616	214	613	215	16	609	217	614	215	621	212
459.GemsFDTD	16	3778	44.9	3758	45.2	3762	45.1	16	3804	44.6	3776	45.0	3770	45.0
465.tonto	16	1058	149	1057	149	1058	149	16	1006	157	1002	157	1005	157
470.lbm	16	6199	35.5	6187	35.5	6189	35.5	8	2125	51.7	2117	51.9	2116	51.9
481.wrf	16	2065	86.6	2087	85.6	2055	87.0	16	2065	86.6	2087	85.6	2055	87.0
482.sphinx3	16	3124	99.8	3113	100	3125	99.8	8	1347	116	1341	116	1303	120

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except
 for 436.cactusADM peak
 For peak modules using 1/2 the number of available cores, copies
 were each assigned to a single L2 cache using mysubmit.pl script.
 See the flags description file for mysubmit.pl details.

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 64M

Platform Notes

 BIOS Settings:
 Adjacent Cache Line Prefetch = Disabled
 Hardware Prefetcher = Disabled
 High Bandwidth option = Enabled

General Notes

 The NEC Express5800/R140a-4(Intel Xeon E7430) and
 the Bull NovaScale R480 E1(Intel Xeon E7430, 2.13 GHz) models are electronically equivalent.
 The results have been measured on a Bull NovaScale R480 E1(Intel Xeon E7430, 2.13 GHz) model.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks (except as noted below):

	icc
482.sphinx3:	/opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Fortran benchmarks (except as noted below):

	ifort
437.leslie3d:	/opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias
470.lbm:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
482.sphinx3:	-xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static
437.leslie3d:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32
454.calculix:	-xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.00.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.00.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.xml.
