SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/R140a-4
(Intel Xeon E7440)

CPU2006 license: 9006 Test date: Jan-2009
Test sponsor: NEC Corporation Hardware Availability: Nov-2008
Tested by: Bull SAS Software Availability: Nov-2008

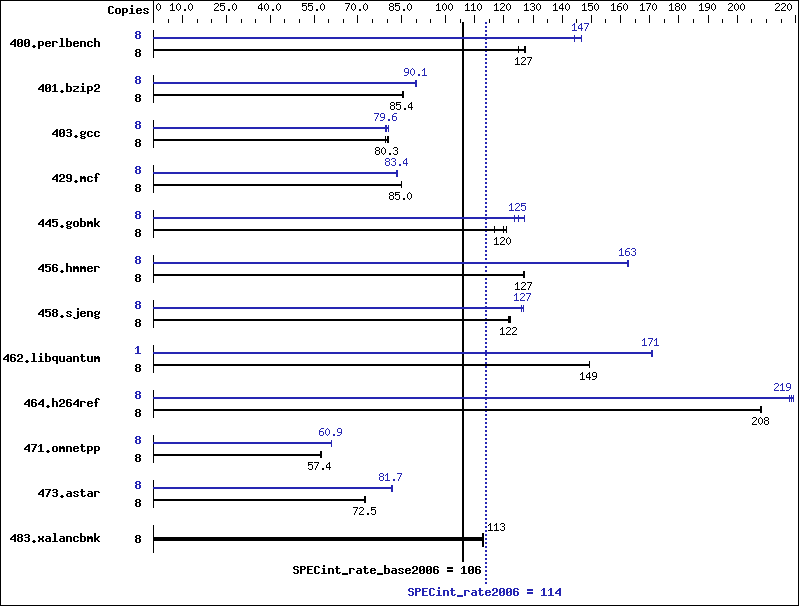

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7440
CPU Characteristics: 1066 MHz system bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip, 3 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16 x 2GB DDR2-667 FBDIMM)
Disk Subsystem: 1x146 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 614 127   615 127   626 125   8 533 147   542 144   534 147
401.bzip2 8 905 85.3 903 85.5 904 85.4 8 856 90.2 861 89.6 857 90.1
403.gcc 8 811 79.4 802 80.3 802 80.3 8 809 79.6 801 80.4 811 79.4
429.mcf 8 858 85.0 859 85.0 858 85.1 8 875 83.4 874 83.5 875 83.4
445.gobmk 8 694 121   719 117   701 120   8 661 127   670 125   679 124
456.hmmer 8 587 127   587 127   589 127   8 459 163   458 163   459 162
458.sjeng 8 792 122   793 122   796 122   8 764 127   767 126   764 127
462.libquantum 8 1110 149   1110 149   1110 149   1 122 171   121 171   121 171
464.h264ref 8 852 208   851 208   850 208   8 808 219   812 218   810 219
471.omnetpp 8 872 57.4 871 57.4 871 57.4 8 821 60.9 821 60.9 821 60.9
473.astar 8 776 72.3 774 72.5 772 72.7 8 689 81.5 688 81.7 687 81.8
483.xalancbmk 8 489 113   489 113   490 113   8 489 113   489 113   490 113

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except
 for 462.libquantum peak

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 64M

Platform Notes

 BIOS Settings:
 Adjacent Cache Line Prefetch = Disabled
 Hardware Prefetcher = Disabled

General Notes

 The NEC Express5800/R140a-4(Intel Xeon E7440) and
 the Bull NovaScale R480 E1(Intel Xeon E7440, 2.40 GHz) models are electronically equivalent.
 The results have been measured on a Bull NovaScale R480 E1(Intel Xeon E7440, 2.40 GHz) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -parallel   -par-runtime-control   -opt-prefetch
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090713.01.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.01.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090713.01.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.01.xml.
