SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/320Fd-LR
(Intel Xeon E5405)

CPU2006 license: 9006 Test date: Dec-2008
Test sponsor: NEC Corporation Hardware Availability: Oct-2008
Tested by: NEC Corporation Software Availability: Nov-2008

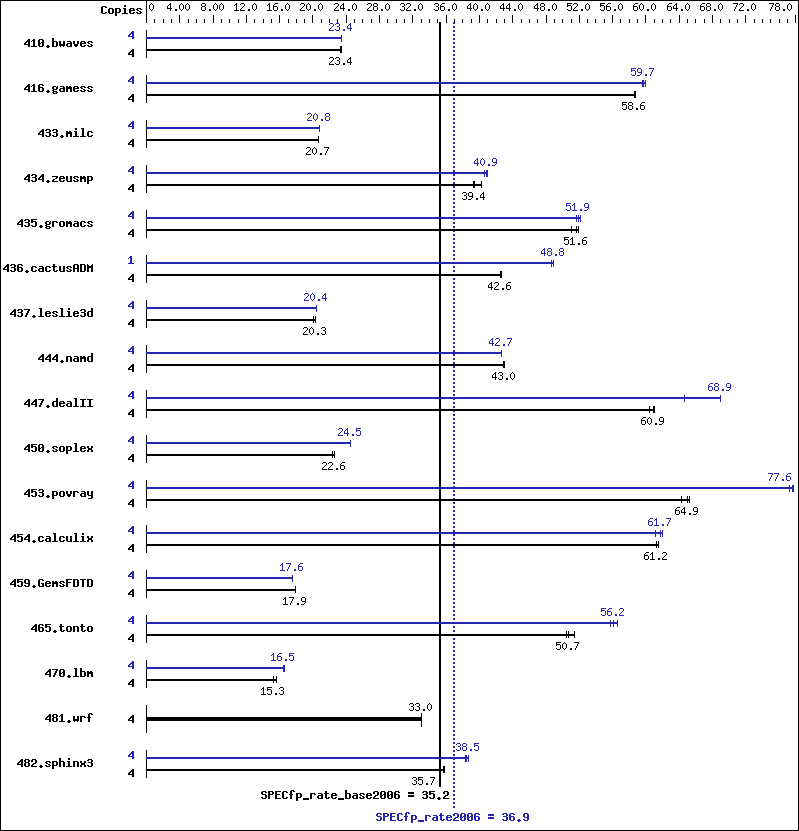

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5405
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips (fault tolerant, see Platform Notes)
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (6x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 2x146.5 GB SAS, 15000 RPM, Software RAID Level1
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.2
Advanced Platform, Kernel 2.6.18-92.1.13.el5 on
an x86_64
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20081105 Package ID: l_cproc_p_11.0.074,
l_cprof_p_11.0.074
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: ft Server Control Software 6.0.2-198

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2333 23.3 2325 23.4 2325 23.4 4 2326 23.4 2326 23.4 2322 23.4
416.gamess 4 1333 58.8 1337 58.6 1336 58.6 4 1313 59.6 1307 59.9 1312 59.7
433.milc 4 1780 20.6 1776 20.7 1773 20.7 4 1771 20.7 1768 20.8 1768 20.8
434.zeusmp 4 926 39.3 924 39.4 905 40.2 4 897 40.6 891 40.9 889 41.0
435.gromacs 4 560 51.0 550 51.9 553 51.6 4 548 52.1 553 51.6 551 51.9
436.cactusADM 4 1121 42.6 1123 42.6 1125 42.5 1 246 48.6 245 48.8 244 48.9
437.leslie3d 4 1878 20.0 1853 20.3 1848 20.3 4 1839 20.4 1843 20.4 1838 20.5
444.namd 4 746 43.0 747 42.9 747 43.0 4 751 42.7 752 42.7 753 42.6
447.dealII 4 751 60.9 758 60.4 751 61.0 4 664 68.9 708 64.6 664 69.0
450.soplex 4 1493 22.4 1477 22.6 1479 22.6 4 1360 24.5 1361 24.5 1364 24.5
453.povray 4 326 65.2 328 64.9 331 64.2 4 274 77.7 274 77.6 276 77.2
454.calculix 4 539 61.2 539 61.2 537 61.5 4 533 61.9 535 61.7 540 61.1
459.GemsFDTD 4 2367 17.9 2374 17.9 2367 17.9 4 2415 17.6 2412 17.6 2413 17.6
465.tonto 4 780 50.5 776 50.7 765 51.5 4 707 55.7 701 56.2 695 56.6
470.lbm 4 3592 15.3 3608 15.2 3522 15.6 4 3351 16.4 3325 16.5 3334 16.5
481.wrf 4 1354 33.0 1353 33.0 1351 33.1 4 1354 33.0 1353 33.0 1351 33.1
482.sphinx3 4 2180 35.8 2182 35.7 2186 35.7 4 2036 38.3 2026 38.5 2015 38.7

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except
 for 436.cactusADM peak

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Platform Notes

 This Express5800/320Fd-LR is a fault-tolerant server.
 Two modules are installed in this server.
 Each module physically has "1CPU chips,12GB memory", The total physical configuration
 is "2CPU chips,24GB memory".
 Using fault-tolerant lockstep technology, these two modules communicate with each other
 and execute the same instructions at the same time, The operating system only sees
 "1CPU chips,12GB memory" as the other components add only redundancy and do not
 contribute to any performance benefit.

General Notes

 The NEC Express5800/320Fd-LR(Intel Xeon E5405) and
 the Bull NovaScale R630 E1 LR(Intel Xeon E5405, 2.00 GHz) models are electronically equivalent.
 The results have been measured on a NEC Express5800/320Fd-LR(Intel Xeon E5405) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Fortran benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  /opt/intel/Compiler/11.0/074/bin/ia32/icc   -L/opt/intel/Compiler/11.0/074/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/074/ipp/ia32/include

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.0/074/bin/ia32/icpc   -L/opt/intel/Compiler/11.0/074/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/074/ipp/ia32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/Compiler/11.0/074/bin/ia32/ifort   -L/opt/intel/Compiler/11.0/074/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/074/ipp/ia32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias
470.lbm:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
482.sphinx3:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -opt-prefetch
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -opt-prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revE.20090710.html,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revE.20090710.xml,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.xml.
