SPEC® CINT2006 Result

Tyan (Test Sponsor: Advanced Micro Devices)

Transport TX46, AMD Opteron 8376 HE

SPECint®_rate2006 = 219

SPECint_rate_base2006 = 178

CPU2006 license:	49	Test date:	Nov-2008
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Jan-2009
Tested by:	Advanced Micro Devices	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8376 HE
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16x4 GB, DDR2-800, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.2, Advanced Platform, Kernel 2.6.18-92.el5
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries SmartHeap 8.1 32-bit Library for Linux

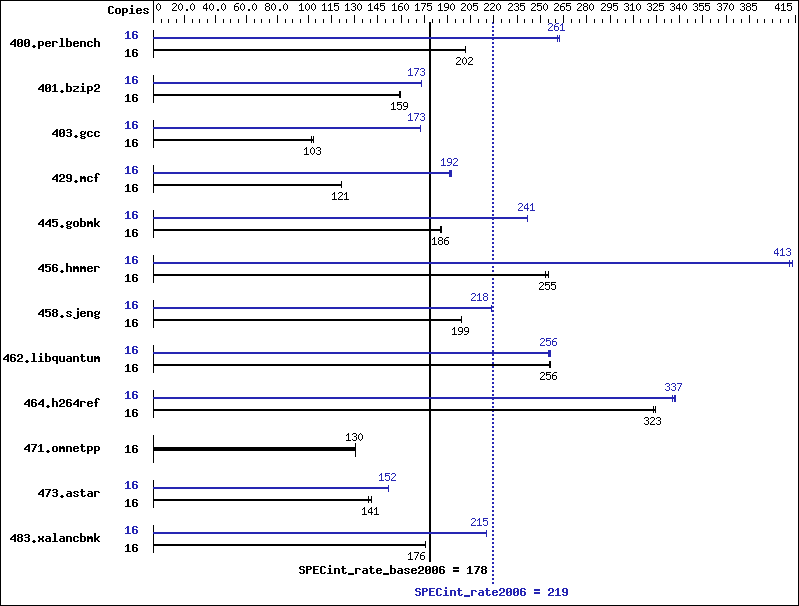

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	776	201	774	202	774	202	16	598	261	599	261	596	262
401.bzip2	16	968	160	971	159	969	159	16	890	173	892	173	891	173
403.gcc	16	1259	102	1245	103	1244	104	16	746	173	747	172	745	173
429.mcf	16	1202	121	1203	121	1203	121	16	760	192	763	191	759	192
445.gobmk	16	904	186	903	186	903	186	16	695	241	695	241	695	241
456.hmmer	16	589	254	584	256	584	255	16	362	413	363	411	362	413
458.sjeng	16	974	199	973	199	973	199	16	887	218	885	219	887	218
462.libquantum	16	1293	256	1295	256	1297	256	16	1295	256	1299	255	1292	257
464.h264ref	16	1095	323	1092	324	1096	323	16	1056	335	1052	337	1050	337
471.omnetpp	16	767	130	767	130	767	130	16	767	130	767	130	767	130
473.astar	16	799	141	796	141	808	139	16	738	152	739	152	738	152
483.xalancbmk	16	628	176	628	176	629	176	16	514	215	513	215	513	215

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd909gh-libs/64:/root/work/cpu2006v1.1/amd909gh-libs/32"

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
456.hmmer:	pgcc
462.libquantum:	pgcc

C++ benchmarks (except as noted below):

	pgcpp
483.xalancbmk:	pathCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -Ofast -IPA:plimit=20000 -IPA:field_reorder=on -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-march=barcelona -O3 -OPT:alias=disjoint -OPT:Ofast -OPT:goto=off -INLINE:aggressive=on -CG:local_sched_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=1 -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:prefer_lru_reg=off -m32
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -L/usr/lib -lhugetlbfs
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -OPT:alias=restrict -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on
456.hmmer:	-Mvect=cachesize:6291456 -fastsse -Mvect=partial -Munroll=n:8 -Msmartalloc=huge -Msafeptr -Mprefetch=t0 -Mfprelaxed -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on
462.libquantum:	-Mvect=cachesize:6291456 -fastsse -Munroll=m:8 -Msmartalloc=huge -Mprefetch=distance:4 -Mfprelaxed -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -Mvect=cachesize:6291456 -fastsse -O4 -Msmartalloc=huge -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:	-Mipa=jobs:4
462.libquantum:	-Mipa=jobs:4

C++ benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
483.xalancbmk:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
