| CPU2006 license: | 97 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Sep-2008 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73GB 10K RPM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

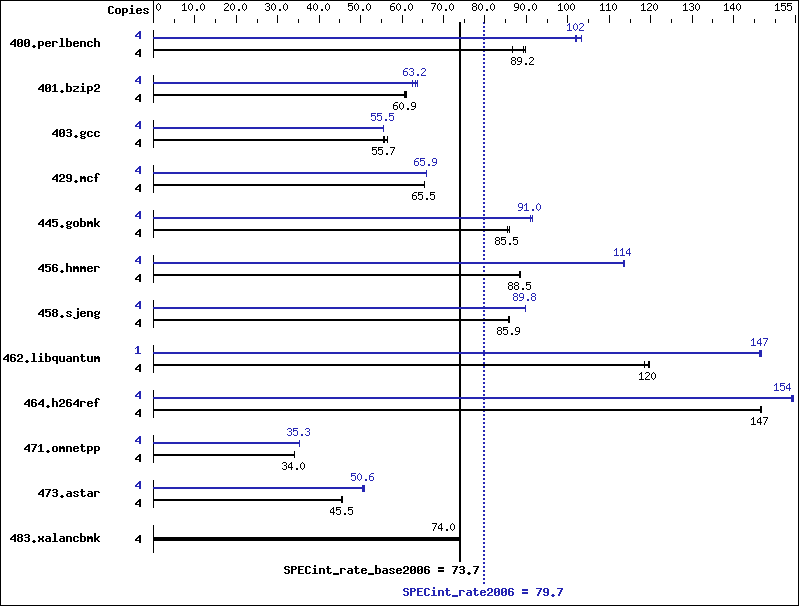

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 452 | 86.5 | 438 | 89.2 | 435 | 89.7 | 4 | 382 | 102 | 384 | 102 | 378 | 103 |
| 401.bzip2 | 4 | 634 | 60.9 | 633 | 61.0 | 637 | 60.6 | 4 | 605 | 63.8 | 610 | 63.2 | 617 | 62.6 |
| 403.gcc | 4 | 581 | 55.4 | 570 | 56.4 | 578 | 55.7 | 4 | 580 | 55.5 | 579 | 55.6 | 580 | 55.5 |
| 429.mcf | 4 | 557 | 65.5 | 557 | 65.5 | 558 | 65.3 | 4 | 553 | 65.9 | 554 | 65.9 | 554 | 65.8 |
| 445.gobmk | 4 | 491 | 85.5 | 489 | 85.8 | 492 | 85.3 | 4 | 459 | 91.4 | 462 | 90.9 | 461 | 91.0 |
| 456.hmmer | 4 | 421 | 88.7 | 422 | 88.5 | 422 | 88.4 | 4 | 329 | 114 | 329 | 113 | 329 | 114 |
| 458.sjeng | 4 | 564 | 85.7 | 563 | 85.9 | 563 | 86.0 | 4 | 539 | 89.8 | 540 | 89.7 | 539 | 89.8 |
| 462.libquantum | 4 | 693 | 120 | 693 | 120 | 700 | 118 | 1 | 141 | 147 | 141 | 147 | 142 | 146 |
| 464.h264ref | 4 | 604 | 147 | 604 | 147 | 603 | 147 | 4 | 573 | 154 | 575 | 154 | 574 | 154 |
| 471.omnetpp | 4 | 736 | 34.0 | 736 | 34.0 | 736 | 34.0 | 4 | 708 | 35.3 | 708 | 35.3 | 707 | 35.4 |
| 473.astar | 4 | 617 | 45.5 | 618 | 45.4 | 617 | 45.5 | 4 | 556 | 50.5 | 551 | 50.9 | 555 | 50.6 |
| 483.xalancbmk | 4 | 373 | 73.9 | 373 | 74.0 | 372 | 74.2 | 4 | 373 | 73.9 | 373 | 74.0 | 372 | 74.2 |
Submit Notes
The config file option 'submit' was used.
Platform Notes
BIOS Settings Adjacent Cache Line Prefetch set to OFF Hardware Prefetch set to ON Optimization for high-frequency FSB applications set to ON
General Notes
taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M 'ulimit -s unlimited' was set for stacksize unlimited This result was measured on the Acer Altos R520. The Altos R720 and Altos R520 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
