SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale T860 E1
(Intel Xeon X5470, 3.33 GHz)

SPECfp®2006 = 26.2

CPU2006 license: 20 Test date: Nov-2008
Test sponsor: Bull SAS Hardware Availability: Oct-2008
Tested by: NEC Corporation Software Availability: Nov-2008

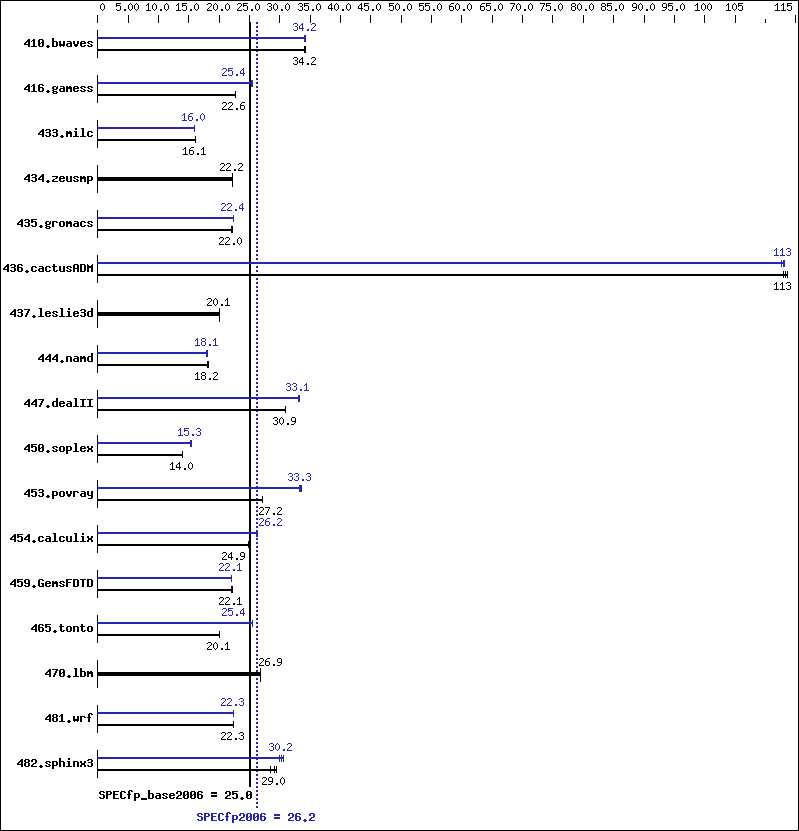

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5470
CPU Characteristics: 3.33 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.044,
l_fproc_b_11.0.044
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 399 34.1 397 34.2 397 34.3 398 34.1 398 34.2 398 34.2
416.gamess 866 22.6 864 22.6 864 22.7 770 25.4 771 25.4 770 25.4
433.milc 569 16.1 571 16.1 571 16.1 575 16.0 575 16.0 576 16.0
434.zeusmp 409 22.2 410 22.2 409 22.2 409 22.2 410 22.2 409 22.2
435.gromacs 324 22.0 324 22.0 322 22.2 320 22.3 319 22.4 319 22.4
436.cactusADM 106 113   106 113   105 114   106 113   106 113   106 113
437.leslie3d 469 20.1 469 20.1 469 20.0 469 20.1 469 20.1 469 20.0
444.namd 443 18.1 442 18.2 441 18.2 443 18.1 446 18.0 444 18.1
447.dealII 371 30.9 371 30.9 371 30.9 345 33.1 345 33.2 345 33.1
450.soplex 596 14.0 596 14.0 596 14.0 546 15.3 544 15.3 542 15.4
453.povray 196 27.2 196 27.1 196 27.2 160 33.3 159 33.5 160 33.3
454.calculix 331 24.9 331 24.9 331 24.9 314 26.3 315 26.2 316 26.1
459.GemsFDTD 480 22.1 480 22.1 480 22.1 481 22.0 481 22.1 481 22.1
465.tonto 490 20.1 491 20.1 491 20.1 390 25.2 387 25.4 386 25.5
470.lbm 512 26.8 512 26.9 511 26.9 512 26.8 512 26.9 511 26.9
481.wrf 500 22.3 500 22.3 500 22.4 500 22.4 500 22.3 500 22.3
482.sphinx3 685 28.5 662 29.5 671 29.0 636 30.6 644 30.2 649 30.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 200M

Platform Notes

Bios settings:
Hardware Prefetcher:          Enabled
Adjacent Cache Line Prefetch: Enabled

General Notes

 The NEC Express5800/120Lj(Intel Xeon X5470) and
 the Bull NovaScale T860 E1(Intel Xeon X5470, 3.33 GHz) models are electronically equivalent.
 The results have been measured on a NEC Express5800/120Lj(Intel Xeon X5470) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Fortran benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  /opt/intel/Compiler/11.0/044/bin/ia32/icc   -L/opt/intel/Compiler/11.0/044/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/044/ipp/ia32/include

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.0/044/bin/ia32/icpc   -L/opt/intel/Compiler/11.0/044/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/044/ipp/ia32/include

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias
470.lbm:  basepeak = yes
482.sphinx3:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-   -opt-prefetch
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -parallel
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -opt-prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -parallel   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revD.html,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revD.xml,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.xml.
