SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge T300 (Intel Xeon X5460, 3.16 GHz)

CPU2006 license: 55 Test date: Nov-2008
Test sponsor: Dell Inc. Hardware Availability: Mar-2008
Tested by: Dell Inc. Software Availability: Nov-2008

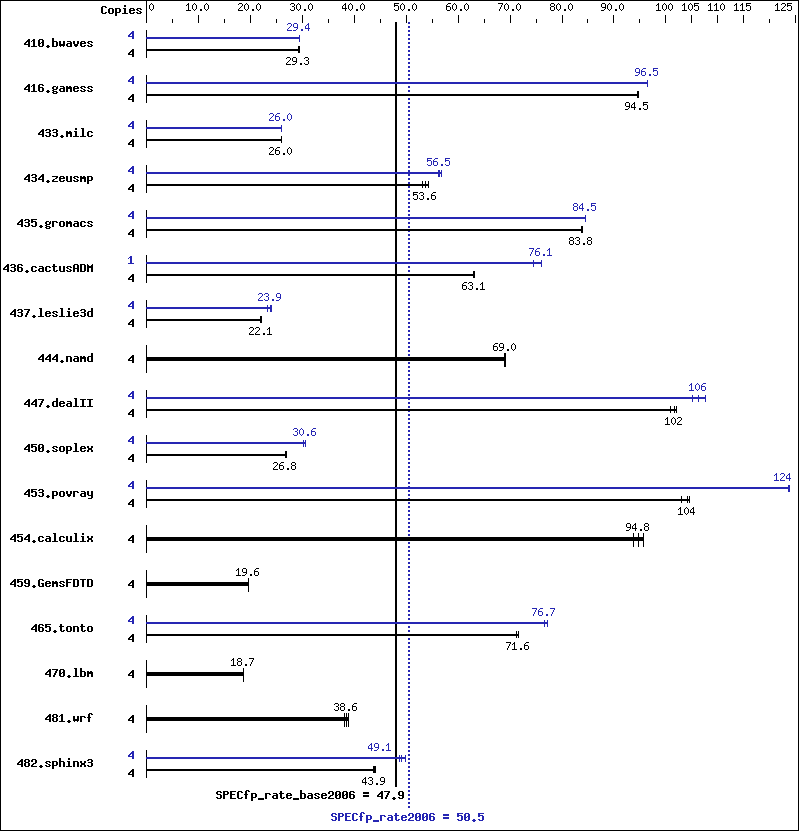

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics:
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (4 x 4 GB DDR2-667 FBDIMM)
Disk Subsystem: 1 x 300 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042,
l_fproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1858 29.3 1854 29.3 1847 29.4 4 1846 29.4 1847 29.4 1844 29.5
416.gamess 4 829 94.5 827 94.7 829 94.4 4 812 96.4 811 96.5 812 96.5
433.milc 4 1409 26.1 1410 26.0 1410 26.0 4 1411 26.0 1411 26.0 1411 26.0
434.zeusmp 4 670 54.3 679 53.6 684 53.2 4 647 56.2 642 56.7 644 56.5
435.gromacs 4 340 83.9 341 83.8 341 83.8 4 338 84.4 338 84.5 338 84.5
436.cactusADM 4 759 63.0 756 63.2 758 63.1 1 160 74.5 157 76.1 157 76.1
437.leslie3d 4 1701 22.1 1712 22.0 1701 22.1 4 1609 23.4 1576 23.9 1561 24.1
444.namd 4 465 69.0 464 69.1 465 69.0 4 465 69.0 464 69.1 465 69.0
447.dealII 4 449 102   454 101   450 102   4 431 106   425 108   435 105
450.soplex 4 1240 26.9 1247 26.7 1243 26.8 4 1106 30.2 1087 30.7 1090 30.6
453.povray 4 204 104   206 103   204 104   4 172 124   172 124   172 124
454.calculix 4 348 94.8 352 93.8 345 95.7 4 348 94.8 352 93.8 345 95.7
459.GemsFDTD 4 2159 19.7 2165 19.6 2168 19.6 4 2159 19.7 2165 19.6 2168 19.6
465.tonto 4 550 71.6 552 71.3 549 71.7 4 513 76.7 514 76.6 510 77.2
470.lbm 4 2937 18.7 2934 18.7 2939 18.7 4 2937 18.7 2934 18.7 2939 18.7
481.wrf 4 1172 38.1 1151 38.8 1159 38.6 4 1172 38.1 1151 38.8 1159 38.6
482.sphinx3 4 1783 43.7 1774 43.9 1771 44.0 4 1588 49.1 1601 48.7 1563 49.9

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

General Notes

 taskset was used to bind processes to cores except
 for 436.cactusADM peak
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Fortran benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  /opt/intel/Compiler/11.0/042/bin/ia32/icc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.0/042/bin/ia32/icpc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/Compiler/11.0/042/bin/ia32/ifort   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias
470.lbm:  basepeak = yes
482.sphinx3:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.11.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.11.xml.
