SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel QX9650, 3.00 GHz)

SPECfp®2006 = 23.4

CPU2006 license: 55 Test date: Nov-2008
Test sponsor: Dell Inc. Hardware Availability: Jun-2008
Tested by: Dell Inc. Software Availability: Nov-2008

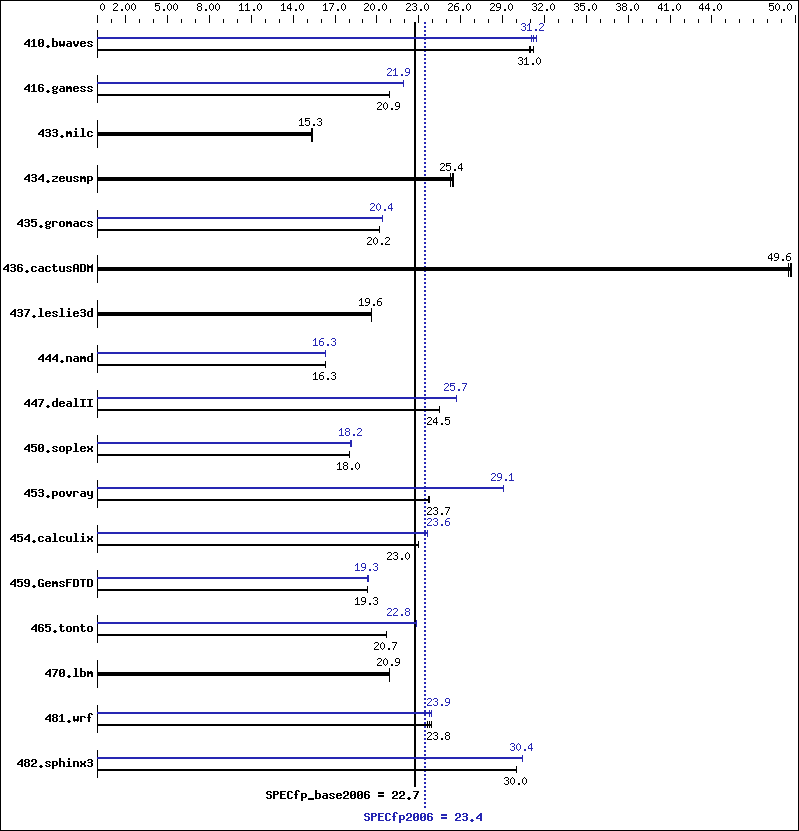

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9650
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2-800 ECC, CL6)
Disk Subsystem: 1 x 160 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20080930 Package ID: w_cproc_p_11.0.061
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20080930 Package ID: w_cprof_p_11.0.061
Microsoft Visual Studio 2008 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 440 30.9 438 31.0 436 31.2 436 31.2 436 31.1 432 31.4
416.gamess 937 20.9 939 20.9 939 20.9 894 21.9 894 21.9 895 21.9
433.milc 600 15.3 598 15.4 598 15.3 600 15.3 598 15.4 598 15.3
434.zeusmp 358 25.4 359 25.3 357 25.5 358 25.4 359 25.3 357 25.5
435.gromacs 353 20.2 353 20.2 353 20.2 350 20.4 350 20.4 350 20.4
436.cactusADM 241 49.6 242 49.5 240 49.7 241 49.6 242 49.5 240 49.7
437.leslie3d 479 19.6 480 19.6 479 19.6 479 19.6 480 19.6 479 19.6
444.namd 491 16.3 491 16.3 491 16.3 493 16.3 493 16.3 493 16.3
447.dealII 468 24.5 468 24.5 468 24.5 446 25.7 446 25.7 446 25.7
450.soplex 464 18.0 464 18.0 464 18.0 460 18.1 459 18.2 459 18.2
453.povray 224 23.7 224 23.8 224 23.7 183 29.1 183 29.1 183 29.1
454.calculix 359 23.0 358 23.0 359 23.0 350 23.6 350 23.6 350 23.6
459.GemsFDTD 550 19.3 550 19.3 549 19.3 548 19.4 549 19.3 549 19.3
465.tonto 475 20.7 475 20.7 476 20.7 432 22.8 432 22.8 432 22.8
470.lbm 658 20.9 658 20.9 658 20.9 658 20.9 658 20.9 658 20.9
481.wrf 473 23.6 469 23.8 468 23.9 468 23.9 468 23.9 469 23.8
482.sphinx3 650 30.0 650 30.0 649 30.0 640 30.4 641 30.4 641 30.4

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.1   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:42:54 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 December 2008.
