SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge T605 (AMD Opteron 2382, 2.60 GHz)

CPU2006 license: 55 Test date: Nov-2008
Test sponsor: Dell Inc. Hardware Availability: Nov-2008
Tested by: Dell Inc. Software Availability: Oct-2008

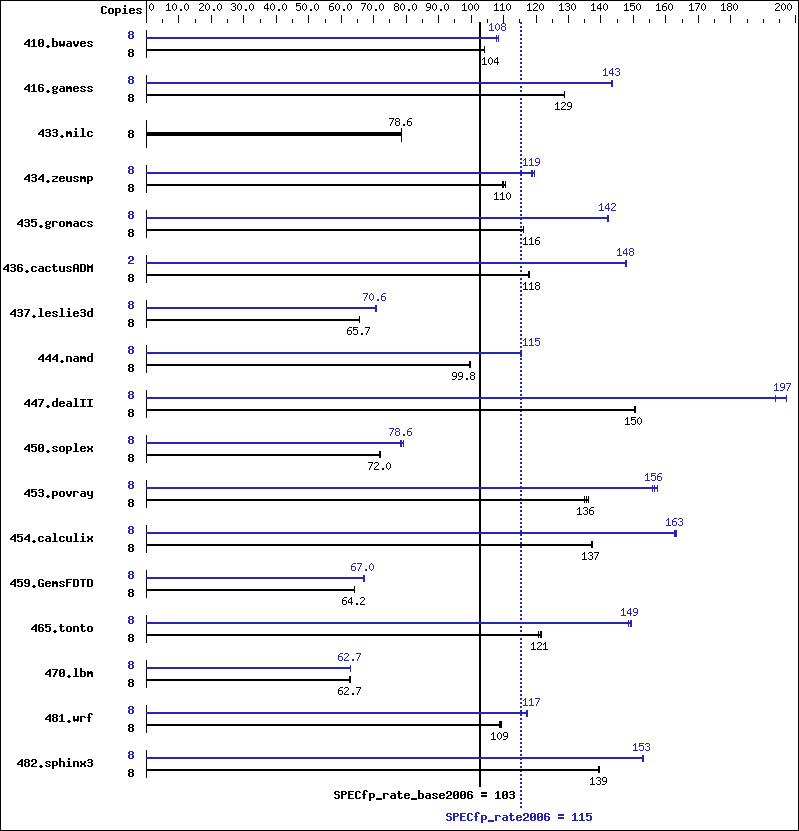

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2382
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB DDR2-800)
Disk Subsystem: 2 x 250 GB 7200 RPM SATA
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2
Kernel 2.6.16.60-0.21-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.2
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
32-bit and 64-bit libhugetlbfs libraries

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1044 104   1044 104   1044 104   8 1004 108   1003 108   1008 108
416.gamess 8 1217 129   1217 129   1216 129   8 1092 143   1092 143   1093 143
433.milc 8 936 78.4 934 78.7 934 78.6 8 936 78.4 934 78.7 934 78.6
434.zeusmp 8 665 110   658 111   662 110   8 614 119   612 119   609 120
435.gromacs 8 492 116   491 116   492 116   8 402 142   402 142   402 142
436.cactusADM 8 812 118   812 118   810 118   2 162 148   162 148   162 148
437.leslie3d 8 1145 65.7 1144 65.7 1145 65.7 8 1065 70.6 1065 70.6 1064 70.7
444.namd 8 643 99.8 645 99.5 643 99.8 8 557 115   556 115   555 116
447.dealII 8 609 150   608 150   608 150   8 472 194   464 197   464 197
450.soplex 8 928 71.9 926 72.0 925 72.1 8 849 78.6 853 78.2 842 79.2
453.povray 8 314 136   313 136   315 135   8 273 156   272 156   271 157
454.calculix 8 481 137   482 137   481 137   8 406 163   405 163   405 163
459.GemsFDTD 8 1322 64.2 1326 64.0 1322 64.2 8 1267 67.0 1268 67.0 1267 67.0
465.tonto 8 647 122   648 121   652 121   8 528 149   527 149   530 149
470.lbm 8 1753 62.7 1753 62.7 1753 62.7 8 1752 62.7 1752 62.8 1752 62.7
481.wrf 8 818 109   820 109   822 109   8 761 117   762 117   762 117
482.sphinx3 8 1119 139   1118 139   1118 140   8 1020 153   1018 153   1020 153

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=7168 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006_1.1/amd909gh-libs/64:/root/cpu2006_1.1/amd909gh-libs/32"
NCPUS = "4"

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Fortran benchmarks:

 -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95
437.leslie3d:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
435.gromacs:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mloop32   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -fno-exceptions   -m32
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -L/usr/lib -lhugetlbfs(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc   -Mprefetch=nta   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:prefer_lru_reg=off   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -OPT:rsqrt=2   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Mconcur   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -OPT:malloc_alg=1   -m3dnow   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Peak Other Flags

C benchmarks:

 -Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:  -Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

 -Mipa=jobs:4(pass 2)
416.gamess:  No flags used
459.GemsFDTD:  No flags used
465.tonto:  No flags used

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:4(pass 2)
435.gromacs:  No flags used
481.wrf:  No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
