| CPU2006 license: | 9006 | Test date: | Nov-2008 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Oct-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | 3.33 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.044 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

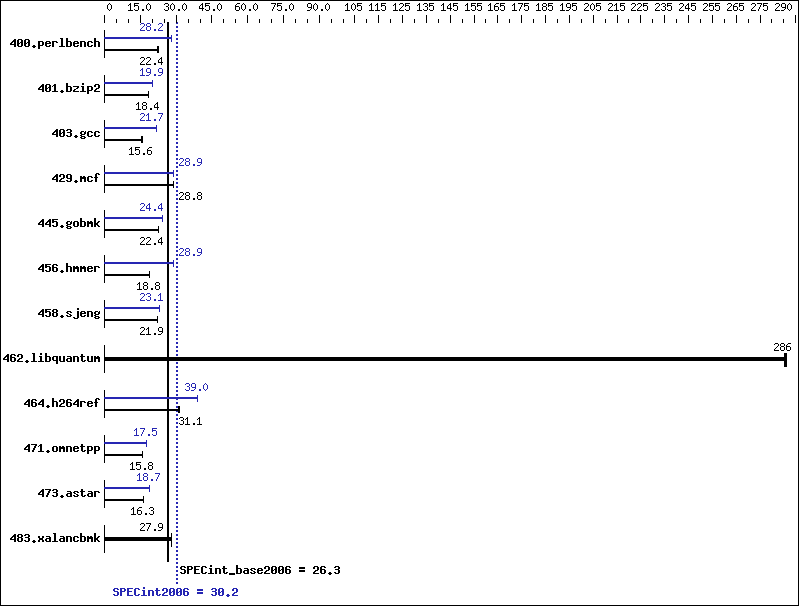

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 438 | 22.3 | 437 | 22.4 | 436 | 22.4 | 347 | 28.2 | 347 | 28.1 | 346 | 28.2 |
| 401.bzip2 | 526 | 18.4 | 525 | 18.4 | 527 | 18.3 | 485 | 19.9 | 483 | 20.0 | 484 | 19.9 |
| 403.gcc | 517 | 15.6 | 517 | 15.6 | 514 | 15.7 | 372 | 21.7 | 372 | 21.7 | 371 | 21.7 |
| 429.mcf | 318 | 28.7 | 317 | 28.8 | 317 | 28.8 | 316 | 28.9 | 318 | 28.7 | 315 | 28.9 |
| 445.gobmk | 469 | 22.4 | 469 | 22.4 | 469 | 22.4 | 430 | 24.4 | 431 | 24.3 | 430 | 24.4 |
| 456.hmmer | 496 | 18.8 | 496 | 18.8 | 496 | 18.8 | 323 | 28.9 | 322 | 29.0 | 323 | 28.9 |
| 458.sjeng | 551 | 22.0 | 551 | 21.9 | 552 | 21.9 | 525 | 23.1 | 524 | 23.1 | 525 | 23.0 |
| 462.libquantum | 72.7 | 285 | 72.5 | 286 | 72.5 | 286 | 72.7 | 285 | 72.5 | 286 | 72.5 | 286 |
| 464.h264ref | 707 | 31.3 | 715 | 31.0 | 711 | 31.1 | 568 | 39.0 | 567 | 39.0 | 567 | 39.0 |
| 471.omnetpp | 394 | 15.8 | 393 | 15.9 | 395 | 15.8 | 359 | 17.4 | 358 | 17.5 | 358 | 17.5 |
| 473.astar | 430 | 16.3 | 430 | 16.3 | 430 | 16.3 | 372 | 18.9 | 375 | 18.7 | 375 | 18.7 |
| 483.xalancbmk | 248 | 27.8 | 247 | 28.0 | 247 | 27.9 | 248 | 27.8 | 247 | 28.0 | 247 | 27.9 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to "physical,0"
Platform Notes
Bios settings: Hardware Prefetcher: Enabled Adjacent Cache Line Prefetch: Enabled
General Notes
The NEC Express5800/120Lj(Intel Xeon X5470) and the Bull NovaScale T860 E1(Intel Xeon X5470, 3.33 GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/120Lj(Intel Xeon X5470) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
