| CPU2006 license: | 55 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB 667 MHz ECC CL5 FB-DIMM) |
| Disk Subsystem: | 1 x 73 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

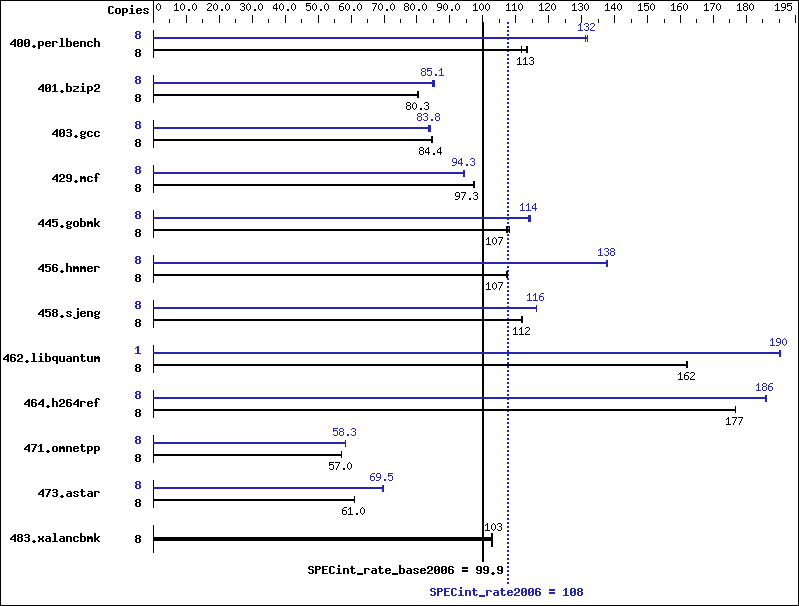

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 699 | 112 | 689 | 113 | 689 | 113 | 8 | 594 | 132 | 595 | 131 | 593 | 132 |
| 401.bzip2 | 8 | 962 | 80.2 | 960 | 80.4 | 961 | 80.3 | 8 | 906 | 85.2 | 910 | 84.8 | 908 | 85.1 |
| 403.gcc | 8 | 759 | 84.8 | 764 | 84.3 | 763 | 84.4 | 8 | 773 | 83.3 | 765 | 84.1 | 769 | 83.8 |
| 429.mcf | 8 | 750 | 97.3 | 750 | 97.3 | 750 | 97.3 | 8 | 774 | 94.2 | 774 | 94.3 | 773 | 94.4 |
| 445.gobmk | 8 | 777 | 108 | 781 | 107 | 782 | 107 | 8 | 734 | 114 | 737 | 114 | 734 | 114 |
| 456.hmmer | 8 | 696 | 107 | 695 | 107 | 696 | 107 | 8 | 542 | 138 | 541 | 138 | 542 | 138 |
| 458.sjeng | 8 | 865 | 112 | 865 | 112 | 867 | 112 | 8 | 833 | 116 | 833 | 116 | 832 | 116 |
| 462.libquantum | 8 | 1023 | 162 | 1024 | 162 | 1023 | 162 | 1 | 109 | 190 | 109 | 190 | 109 | 190 |
| 464.h264ref | 8 | 1001 | 177 | 1002 | 177 | 1002 | 177 | 8 | 952 | 186 | 951 | 186 | 953 | 186 |
| 471.omnetpp | 8 | 876 | 57.1 | 878 | 57.0 | 877 | 57.0 | 8 | 858 | 58.3 | 858 | 58.3 | 858 | 58.3 |
| 473.astar | 8 | 921 | 61.0 | 921 | 61.0 | 921 | 61.0 | 8 | 805 | 69.8 | 808 | 69.5 | 809 | 69.4 |
| 483.xalancbmk | 8 | 536 | 103 | 536 | 103 | 537 | 103 | 8 | 536 | 103 | 536 | 103 | 537 | 103 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Platform Notes
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
General Notes
taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
