| CPU2006 license: | 22 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Oct-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap Library, Version 8.1 Binutils 2.18.50.0.7.20080502 |

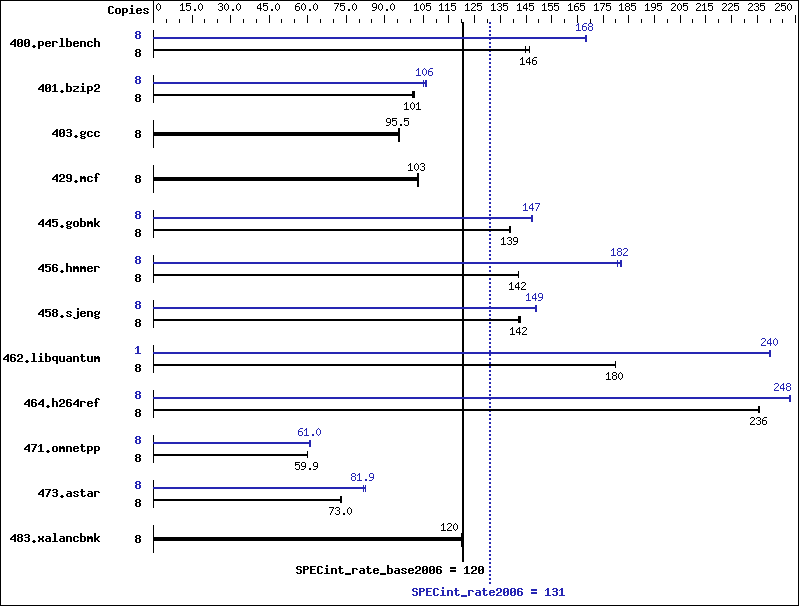

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 534 | 146 | 539 | 145 | 535 | 146 | 8 | 464 | 169 | 464 | 168 | 464 | 168 |
| 401.bzip2 | 8 | 760 | 102 | 764 | 101 | 765 | 101 | 8 | 730 | 106 | 727 | 106 | 734 | 105 |
| 403.gcc | 8 | 674 | 95.5 | 673 | 95.7 | 676 | 95.2 | 8 | 674 | 95.5 | 673 | 95.7 | 676 | 95.2 |
| 429.mcf | 8 | 708 | 103 | 709 | 103 | 709 | 103 | 8 | 708 | 103 | 709 | 103 | 709 | 103 |
| 445.gobmk | 8 | 604 | 139 | 606 | 139 | 605 | 139 | 8 | 570 | 147 | 569 | 148 | 569 | 147 |
| 456.hmmer | 8 | 526 | 142 | 525 | 142 | 525 | 142 | 8 | 410 | 182 | 413 | 181 | 410 | 182 |
| 458.sjeng | 8 | 682 | 142 | 677 | 143 | 680 | 142 | 8 | 650 | 149 | 651 | 149 | 651 | 149 |
| 462.libquantum | 8 | 922 | 180 | 921 | 180 | 922 | 180 | 1 | 86.2 | 240 | 86.5 | 240 | 86.3 | 240 |
| 464.h264ref | 8 | 750 | 236 | 751 | 236 | 750 | 236 | 8 | 716 | 247 | 714 | 248 | 714 | 248 |
| 471.omnetpp | 8 | 835 | 59.9 | 834 | 59.9 | 835 | 59.9 | 8 | 820 | 61.0 | 821 | 60.9 | 819 | 61.0 |
| 473.astar | 8 | 769 | 73.1 | 769 | 73.0 | 770 | 73.0 | 8 | 686 | 81.9 | 686 | 81.9 | 682 | 82.3 |
| 483.xalancbmk | 8 | 461 | 120 | 460 | 120 | 461 | 120 | 8 | 461 | 120 | 460 | 120 | 461 | 120 |
Submit Notes
The config file option 'submit' was used. taskset has been used to bind processes to cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default) KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Adjacent Sector Prefetch = Disable Memory Throttling = Enable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
