SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x iDataPlex dx360 (Intel Xeon E5472)

CPU2006 license: 11 Test date: Oct-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: Nov-2008

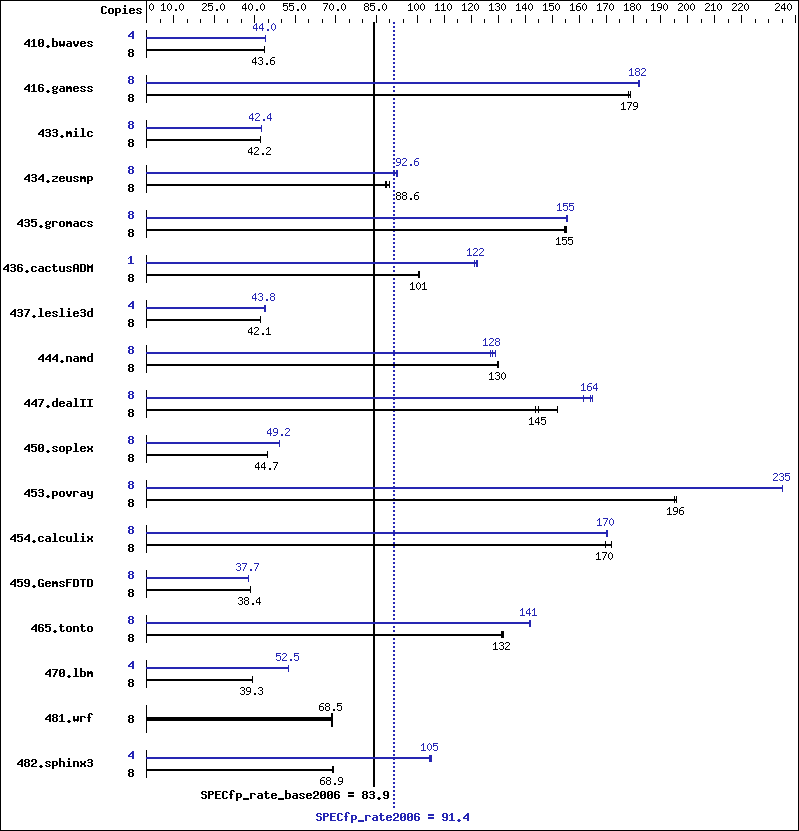

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5472
CPU Characteristics: 1600MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-6400F ECC)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042,
l_fproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 2493 43.6 2491 43.7 2492 43.6 4 1236   44.0 1236   44.0 1236   44.0
416.gamess 8 876 179   878 178   876 179   8 859   182   860   182   862   182
433.milc 8 1739 42.2 1739 42.2 1740 42.2 8 1734   42.3 1733   42.4 1734   42.4
434.zeusmp 8 809 90.0 822 88.6 823 88.5 8 784   92.9 787   92.5 786   92.6
435.gromacs 8 370 155   368 155   368 155   8 367   156   368   155   368   155
436.cactusADM 8 950 101   947 101   948 101   1 97.8 122   98.6 121   98.0 122
437.leslie3d 8 1789 42.0 1787 42.1 1786 42.1 4 858   43.8 859   43.8 860   43.7
444.namd 8 494 130   494 130   493 130   8 502   128   497   129   504   127
447.dealII 8 632 145   637 144   603 152   8 567   162   555   165   558   164
450.soplex 8 1492 44.7 1491 44.7 1490 44.8 8 1357   49.2 1355   49.2 1356   49.2
453.povray 8 217 196   217 196   218 195   8 181   235   181   235   181   235
454.calculix 8 389 170   389 170   384 172   8 387   171   388   170   388   170
459.GemsFDTD 8 2212 38.4 2212 38.4 2213 38.4 8 2257   37.6 2253   37.7 2253   37.7
465.tonto 8 600 131   596 132   597 132   8 557   141   555   142   557   141
470.lbm 8 2798 39.3 2798 39.3 2798 39.3 4 1046   52.6 1047   52.5 1047   52.5
481.wrf 8 1304 68.5 1305 68.5 1303 68.6 8 1304   68.5 1305   68.5 1303   68.6
482.sphinx3 8 2266 68.8 2253 69.2 2264 68.9 4 742   105   741   105   745   105

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except for 436.cactusADM peak

General Notes

 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M
 Hardware Prefetch Enabled and Adjacent Sector Prefetch Disabled
 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Fortran benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  /opt/intel/Compiler/11.0/042/bin/ia32/icc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.0/042/bin/ia32/icpc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/Compiler/11.0/042/bin/ia32/ifort   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias
470.lbm:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
482.sphinx3:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -opt-prefetch
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -opt-prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.01.xml.
