SPEC® CINT2006 Result

Dell Inc.

PowerEdge M805 (AMD Opteron 2384, 2.70 GHz)

SPECint®_rate2006 = 134

SPECint_rate_base2006 = 112

CPU2006 license:	55	Test date:	Oct-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Nov-2008
Tested by:	Dell Inc.	Software Availability:	Oct-2008

Hardware
CPU Name:	AMD Opteron 2384
CPU Characteristics:
CPU MHz:	2700
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (8 x 4 GB DDR2-800)
Disk Subsystem:	1 x 73 GB 15000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries SmartHeap 8.1 32-bit Library for Linux

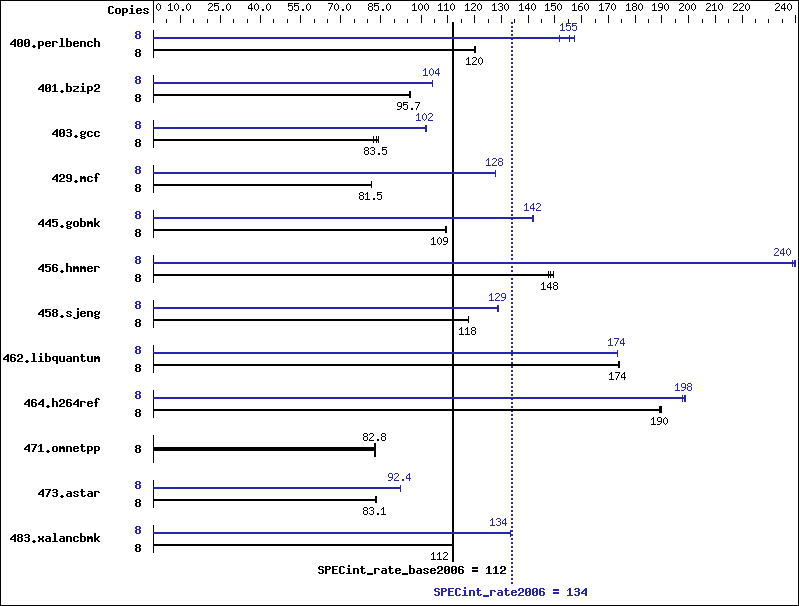

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	652	120	649	120	649	120	8	503	155	515	152	497	157
401.bzip2	8	809	95.5	805	95.9	807	95.7	8	739	104	741	104	741	104
403.gcc	8	785	82.1	767	83.9	771	83.5	8	631	102	633	102	633	102
429.mcf	8	896	81.5	894	81.6	895	81.5	8	571	128	571	128	571	128
445.gobmk	8	768	109	768	109	768	109	8	592	142	592	142	591	142
456.hmmer	8	499	150	506	147	503	148	8	311	240	313	239	311	240
458.sjeng	8	823	118	822	118	823	118	8	751	129	753	129	751	129
462.libquantum	8	953	174	953	174	953	174	8	955	174	955	174	955	173
464.h264ref	8	934	190	936	189	934	190	8	893	198	896	198	891	199
471.omnetpp	8	604	82.8	604	82.8	604	82.7	8	604	82.8	604	82.8	604	82.7
473.astar	8	676	83.1	676	83.0	674	83.4	8	607	92.4	608	92.3	607	92.4
483.xalancbmk	8	494	112	494	112	495	112	8	413	134	413	134	414	133

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=7168 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd909gh-libs/64:/root/cpu2006-1.1/amd909gh-libs/32"

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
456.hmmer:	pgcc
462.libquantum:	pgcc

C++ benchmarks (except as noted below):

	pgcpp
483.xalancbmk:	pathCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -Ofast -IPA:plimit=20000 -IPA:field_reorder=on -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-march=barcelona -O3 -OPT:alias=disjoint -OPT:Ofast -OPT:goto=off -INLINE:aggressive=on -CG:local_sched_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=1 -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:prefer_lru_reg=off -m32
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -L/usr/lib -lhugetlbfs
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -OPT:alias=restrict -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on
456.hmmer:	-Mvect=cachesize:6291456 -fastsse -Mvect=partial -Munroll=n:8 -Msmartalloc=huge -Msafeptr -Mprefetch=t0 -Mfprelaxed -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on
462.libquantum:	-Mvect=cachesize:6291456 -fastsse -Munroll=m:8 -Msmartalloc=huge -Mprefetch=distance:4 -Mfprelaxed -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -Mvect=cachesize:6291456 -fastsse -O4 -Msmartalloc=huge -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:	-Mipa=jobs:4
462.libquantum:	-Mipa=jobs:4

C++ benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
483.xalancbmk:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
