SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade T6340 Server Module

CPU2006 license: 6 Test date: Sep-2008
Test sponsor: Sun Microsystems Hardware Availability: Oct-2008
Tested by: Sun Microsystems Software Availability: Oct-2008

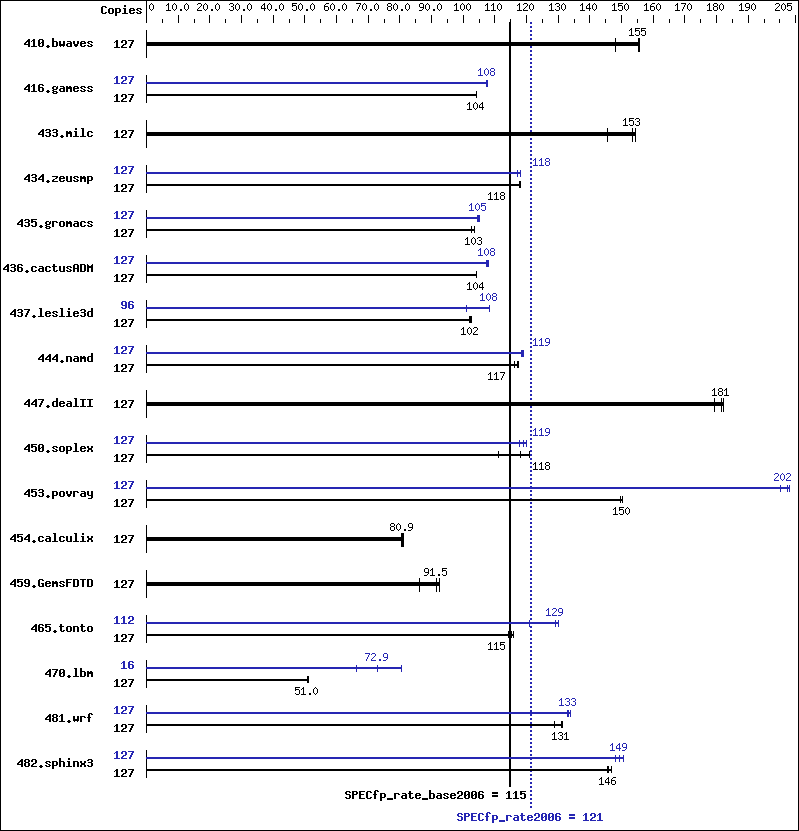

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2 Plus
CPU Characteristics:
CPU MHz: 1415
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 8 threads/core
CPU(s) orderable: 2 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (32 x 4 GB)
Disk Subsystem: Sun Blade 6000 Disk Module
544 GB (8 x 73 GB 15K RPM SAS disks
in software RAID 0 with 8 KB stripe)
Other Hardware: None
Software
Operating System: Solaris 10 10/08
Compiler: Sun Studio 12 (see additional detail below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 127 11663 148   11109 155   11088 156   127 11663 148   11109 155   11088 156
416.gamess 127 23868 104   23838 104   23873 104   127 23122 108   23117 108   23132 107
433.milc 127 7601 153   8002 146   7546 155   127 7601 153   8002 146   7546 155
434.zeusmp 127 9797 118   9814 118   9809 118   127 9870 117   9778 118   9776 118
435.gromacs 127 8747 104   8766 103   8849 102   127 8630 105   8664 105   8645 105
436.cactusADM 127 14553 104   14586 104   14583 104   127 14156 107   14059 108   14085 108
437.leslie3d 127 11641 103   11702 102   11658 102   96 8936 101   8325 108   8323 108
444.namd 127 8755 116   8663 118   8705 117   127 8567 119   8570 119   8606 118
447.dealII 127 7981 182   8108 179   8007 181   127 7981 182   8108 179   8007 181
450.soplex 127 8757 121   8967 118   9535 111   127 8822 120   8902 119   8984 118
453.povray 127 4515 150   4500 150   4497 150   127 3328 203   3339 202   3374 200
454.calculix 127 12959 80.9 12898 81.2 13002 80.6 127 12959 80.9 12898 81.2 13002 80.6
459.GemsFDTD 127 14543 92.7 14730 91.5 15631 86.2 127 14543 92.7 14730 91.5 15631 86.2
465.tonto 127 10834 115   10777 116   10929 114   112 8478 130   8537 129   9116 121
470.lbm 127 34244 51.0 34221 51.0 34213 51.0 16 2735 80.4 3014 72.9 3317 66.3
481.wrf 127 10822 131   10792 131   11007 129   127 10607 134   10669 133   10647 133
482.sphinx3 127 16974 146   17009 146   16850 147   127 16427 151   16587 149   16709 148

Compiler Invocation Notes


 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-05,
 124861-06, 124863-04, 127000-04

Submit Notes


 The config file option 'submit' was used.  Processes were
 bound to cores using "submit" and "pbind".

Operating System Notes


 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    tsb_rss_factor=128
       Suggests that the the size of the TSB (Translation Storage Buffer)
       may be increased if it is more than 25% (128/512) full.  Doing so
       may reduce TSB traps, at the cost of additional kernel memory.

 The "webconsole" service was turned off using
     svcadm disable webconsole

 The system had 159 GB of swap space.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Fortran benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -M /usr/lib/ld/map.bssalign

Benchmarks using both Fortran and C:

 -g   -fast(cc)   -fast(f90)   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xipo=2   -xrestrict
482.sphinx3:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xinline=   -xprefetch_level=2   -Wc,-Qlp-ol=1   -xrestrict   -xalias_level=strong   -fsimple=1   -xlinkopt=2   -lfast

C++ benchmarks:

444.namd:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xprefetch_level=1   -xlinkopt=2
447.dealII:  basepeak = yes
450.soplex:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=2   -fsimple=0   -xrestrict   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=64K   -xdepend   -xalias_level=compatible   -xipo=2   -xrestrict   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xlinkopt=2
434.zeusmp:  -g   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=1   -qoption cg -Qeps:enabled=1   -qoption cg -Qeps:ws=8   -lmopt
437.leslie3d:  -g   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xprefetch=latx:1.6   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4
459.GemsFDTD:  basepeak = yes
465.tonto:  -g   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=1   -xinline=   -xarch=generic   -xchip=generic   -fsimple=0
436.cactusADM:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -fsimple=1   -xlinkopt=2
454.calculix:  basepeak = yes
481.wrf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xlinkopt=2

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.20090713.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 20:11:19 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 11 November 2008.
