CPU2006 license: | 11 | Test date: | Oct-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Nov-2008 |
Tested by: | IBM Corporation | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5260 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 3333 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

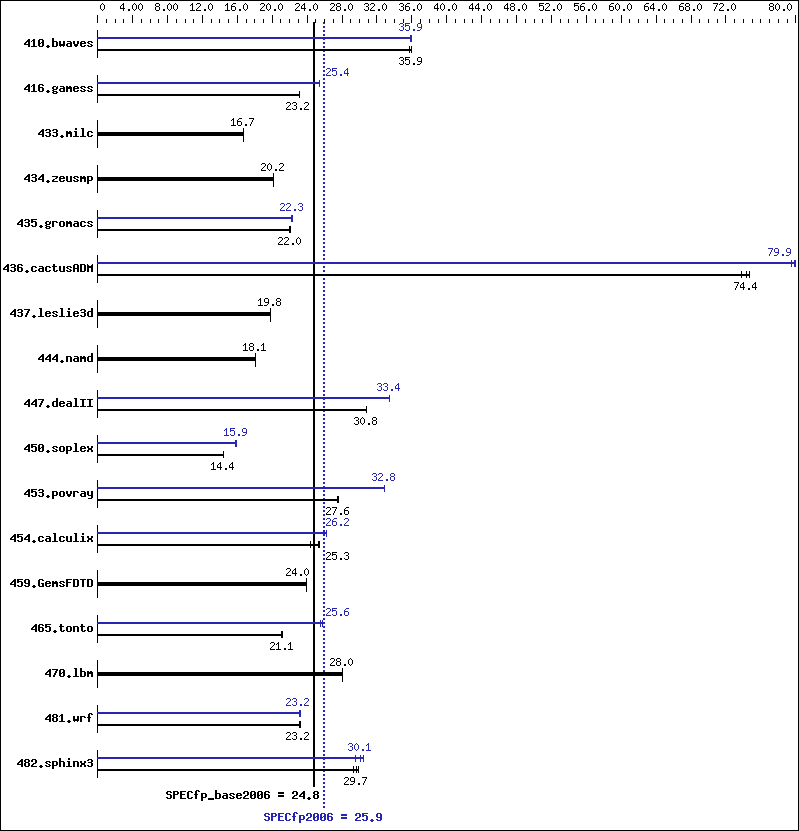

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 380 | 35.8 | 378 | 35.9 | 378 | 35.9 | 378 | 35.9 | 379 | 35.8 | 378 | 36.0 |
416.gamess | 845 | 23.2 | 847 | 23.1 | 846 | 23.2 | 771 | 25.4 | 771 | 25.4 | 772 | 25.4 |
433.milc | 550 | 16.7 | 550 | 16.7 | 550 | 16.7 | 550 | 16.7 | 550 | 16.7 | 550 | 16.7 |
434.zeusmp | 451 | 20.2 | 451 | 20.2 | 453 | 20.1 | 451 | 20.2 | 451 | 20.2 | 453 | 20.1 |
435.gromacs | 324 | 22.0 | 324 | 22.0 | 324 | 22.0 | 321 | 22.3 | 321 | 22.3 | 321 | 22.3 |
436.cactusADM | 161 | 74.4 | 160 | 74.7 | 162 | 73.8 | 150 | 79.9 | 150 | 79.5 | 149 | 80.0 |
437.leslie3d | 474 | 19.8 | 474 | 19.8 | 474 | 19.8 | 474 | 19.8 | 474 | 19.8 | 474 | 19.8 |
444.namd | 444 | 18.1 | 444 | 18.1 | 444 | 18.1 | 444 | 18.1 | 444 | 18.1 | 444 | 18.1 |
447.dealII | 372 | 30.8 | 372 | 30.8 | 372 | 30.8 | 342 | 33.4 | 342 | 33.4 | 342 | 33.4 |
450.soplex | 578 | 14.4 | 577 | 14.5 | 580 | 14.4 | 526 | 15.9 | 525 | 15.9 | 527 | 15.8 |
453.povray | 193 | 27.6 | 194 | 27.5 | 193 | 27.6 | 162 | 32.8 | 162 | 32.8 | 162 | 32.9 |
454.calculix | 339 | 24.3 | 325 | 25.4 | 325 | 25.3 | 315 | 26.2 | 314 | 26.3 | 314 | 26.2 |
459.GemsFDTD | 443 | 24.0 | 443 | 24.0 | 443 | 24.0 | 443 | 24.0 | 443 | 24.0 | 443 | 24.0 |
465.tonto | 465 | 21.2 | 466 | 21.1 | 467 | 21.1 | 382 | 25.7 | 385 | 25.6 | 386 | 25.5 |
470.lbm | 490 | 28.0 | 490 | 28.0 | 489 | 28.1 | 490 | 28.0 | 490 | 28.0 | 489 | 28.1 |
481.wrf | 481 | 23.2 | 482 | 23.2 | 481 | 23.2 | 481 | 23.2 | 482 | 23.2 | 482 | 23.2 |
482.sphinx3 | 652 | 29.9 | 657 | 29.7 | 665 | 29.3 | 639 | 30.5 | 648 | 30.1 | 659 | 29.6 |
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 200M Hardware Prefetch Enabled, Adjacent Sector Prefetch Enabled 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | basepeak = yes |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
