CPU2006 license: | 20 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
Tested by: | Bull SAS | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5430 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 2666 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4x4 GB) FB-DIMM PC2-5300F ECC CL5 |
Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE LINUX Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.50.0.15 |

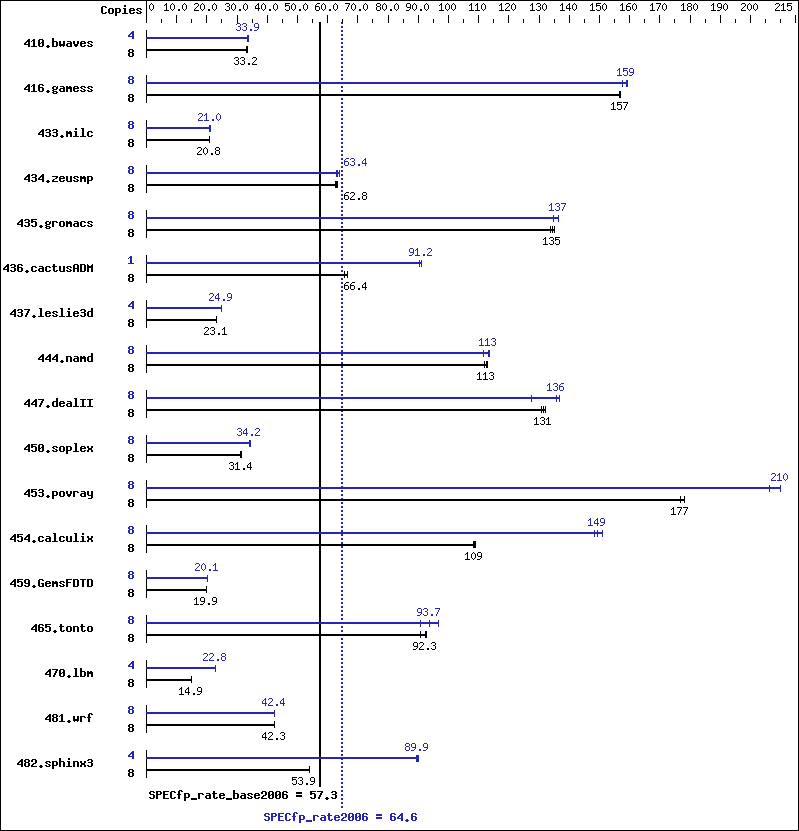

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3257 | 33.4 | 3294 | 33.0 | 3274 | 33.2 | 4 | 1602 | 33.9 | 1605 | 33.9 | 1622 | 33.5 |
416.gamess | 8 | 997 | 157 | 1000 | 157 | 998 | 157 | 8 | 993 | 158 | 984 | 159 | 985 | 159 |
433.milc | 8 | 3541 | 20.7 | 3524 | 20.8 | 3526 | 20.8 | 8 | 3492 | 21.0 | 3489 | 21.1 | 3501 | 21.0 |
434.zeusmp | 8 | 1160 | 62.8 | 1149 | 63.4 | 1163 | 62.6 | 8 | 1149 | 63.4 | 1159 | 62.8 | 1139 | 63.9 |
435.gromacs | 8 | 427 | 134 | 424 | 135 | 423 | 135 | 8 | 418 | 137 | 424 | 135 | 418 | 137 |
436.cactusADM | 8 | 1454 | 65.7 | 1439 | 66.4 | 1440 | 66.4 | 1 | 131 | 91.2 | 132 | 90.5 | 131 | 91.2 |
437.leslie3d | 8 | 3262 | 23.1 | 3255 | 23.1 | 3250 | 23.1 | 4 | 1512 | 24.9 | 1508 | 24.9 | 1523 | 24.7 |
444.namd | 8 | 573 | 112 | 569 | 113 | 569 | 113 | 8 | 574 | 112 | 566 | 113 | 565 | 114 |
447.dealII | 8 | 700 | 131 | 693 | 132 | 697 | 131 | 8 | 669 | 137 | 675 | 136 | 718 | 127 |
450.soplex | 8 | 2139 | 31.2 | 2124 | 31.4 | 2128 | 31.4 | 8 | 1950 | 34.2 | 1949 | 34.2 | 1946 | 34.3 |
453.povray | 8 | 241 | 177 | 241 | 177 | 239 | 178 | 8 | 203 | 210 | 203 | 210 | 206 | 206 |
454.calculix | 8 | 607 | 109 | 607 | 109 | 610 | 108 | 8 | 437 | 151 | 445 | 148 | 442 | 149 |
459.GemsFDTD | 8 | 4274 | 19.9 | 4269 | 19.9 | 4270 | 19.9 | 8 | 4231 | 20.1 | 4225 | 20.1 | 4235 | 20.0 |
465.tonto | 8 | 848 | 92.8 | 852 | 92.3 | 868 | 90.6 | 8 | 867 | 90.8 | 840 | 93.7 | 813 | 96.8 |
470.lbm | 8 | 7356 | 14.9 | 7356 | 14.9 | 7354 | 14.9 | 4 | 2414 | 22.8 | 2415 | 22.8 | 2421 | 22.7 |
481.wrf | 8 | 2115 | 42.3 | 2113 | 42.3 | 2113 | 42.3 | 8 | 2109 | 42.4 | 2111 | 42.3 | 2107 | 42.4 |
482.sphinx3 | 8 | 2883 | 54.1 | 2890 | 53.9 | 2895 | 53.9 | 4 | 871 | 89.6 | 867 | 90.0 | 867 | 89.9 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
BIOS configuration: Hardware Prefetcher Enabled Adjacent Cache-Line Prefetch Disabled
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex, 470.lbm and 482.sphinx3, at peak, are compiled in 32-bit mode
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
