| CPU2006 license: | 20 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

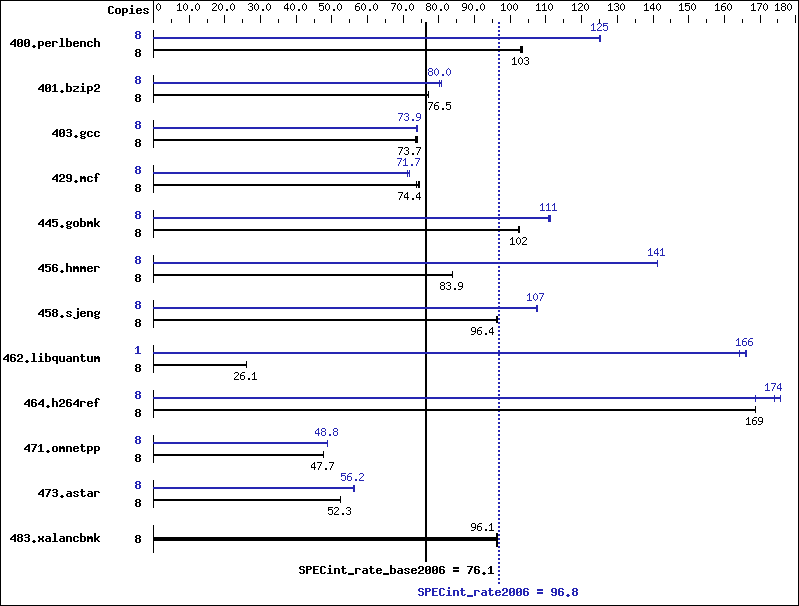

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 758 | 103 | 759 | 103 | 755 | 104 | 8 | 624 | 125 | 624 | 125 | 626 | 125 |
| 401.bzip2 | 8 | 1009 | 76.5 | 1002 | 77.0 | 1013 | 76.2 | 8 | 964 | 80.0 | 957 | 80.7 | 965 | 80.0 |
| 403.gcc | 8 | 871 | 73.9 | 876 | 73.5 | 874 | 73.7 | 8 | 872 | 73.9 | 872 | 73.9 | 872 | 73.8 |
| 429.mcf | 8 | 979 | 74.5 | 981 | 74.4 | 991 | 73.6 | 8 | 1017 | 71.7 | 1018 | 71.7 | 1024 | 71.3 |
| 445.gobmk | 8 | 818 | 103 | 819 | 102 | 820 | 102 | 8 | 755 | 111 | 757 | 111 | 757 | 111 |
| 456.hmmer | 8 | 890 | 83.9 | 890 | 83.9 | 890 | 83.9 | 8 | 529 | 141 | 529 | 141 | 529 | 141 |
| 458.sjeng | 8 | 1003 | 96.5 | 1004 | 96.4 | 1006 | 96.2 | 8 | 900 | 108 | 902 | 107 | 902 | 107 |
| 462.libquantum | 8 | 6353 | 26.1 | 6350 | 26.1 | 6352 | 26.1 | 1 | 125 | 166 | 125 | 166 | 126 | 164 |
| 464.h264ref | 8 | 1049 | 169 | 1050 | 169 | 1050 | 169 | 8 | 1050 | 169 | 1007 | 176 | 1017 | 174 |
| 471.omnetpp | 8 | 1048 | 47.7 | 1047 | 47.8 | 1050 | 47.6 | 8 | 1024 | 48.8 | 1025 | 48.8 | 1025 | 48.8 |
| 473.astar | 8 | 1073 | 52.3 | 1073 | 52.3 | 1074 | 52.3 | 8 | 1002 | 56.1 | 996 | 56.4 | 1000 | 56.2 |
| 483.xalancbmk | 8 | 573 | 96.3 | 574 | 96.1 | 574 | 96.1 | 8 | 573 | 96.3 | 574 | 96.1 | 574 | 96.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Hardware Prefetcher Enabled Adjacent Cache-Line Prefetch Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
