CPU2006 license: | 11 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2008 |
Tested by: | IBM Corporation | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5470 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 3333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
Disk Subsystem: | 1 x 36 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

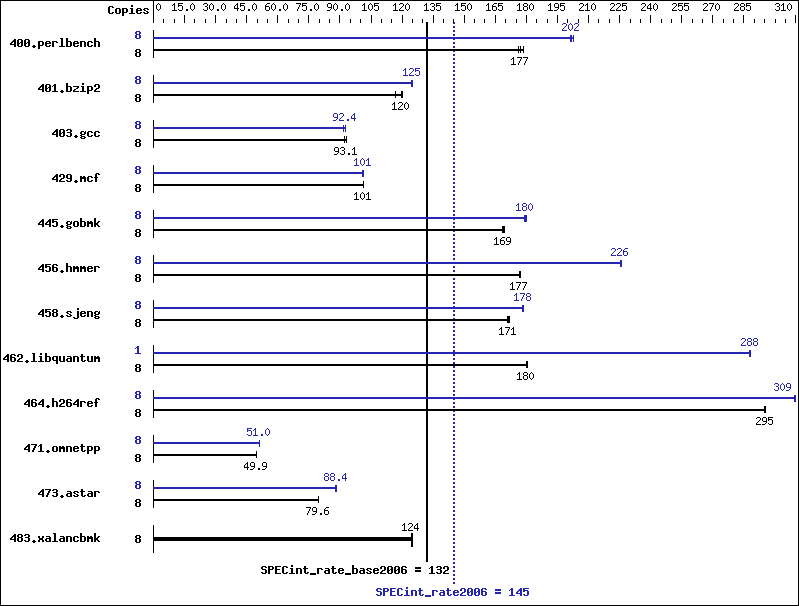

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 437 | 179 | 441 | 177 | 444 | 176 | 8 | 388 | 202 | 385 | 203 | 389 | 201 |
401.bzip2 | 8 | 662 | 117 | 642 | 120 | 644 | 120 | 8 | 620 | 125 | 618 | 125 | 617 | 125 |
403.gcc | 8 | 698 | 92.3 | 690 | 93.3 | 692 | 93.1 | 8 | 697 | 92.4 | 696 | 92.6 | 701 | 91.9 |
429.mcf | 8 | 720 | 101 | 720 | 101 | 721 | 101 | 8 | 721 | 101 | 722 | 101 | 721 | 101 |
445.gobmk | 8 | 496 | 169 | 498 | 169 | 496 | 169 | 8 | 469 | 179 | 467 | 180 | 466 | 180 |
456.hmmer | 8 | 422 | 177 | 423 | 177 | 423 | 176 | 8 | 331 | 226 | 331 | 226 | 331 | 225 |
458.sjeng | 8 | 563 | 172 | 566 | 171 | 566 | 171 | 8 | 543 | 178 | 542 | 179 | 542 | 178 |
462.libquantum | 8 | 920 | 180 | 919 | 180 | 920 | 180 | 1 | 71.9 | 288 | 72.1 | 288 | 71.9 | 288 |
464.h264ref | 8 | 599 | 295 | 599 | 295 | 600 | 295 | 8 | 572 | 310 | 572 | 309 | 572 | 309 |
471.omnetpp | 8 | 1002 | 49.9 | 1003 | 49.9 | 1002 | 49.9 | 8 | 980 | 51.0 | 981 | 51.0 | 980 | 51.0 |
473.astar | 8 | 706 | 79.5 | 705 | 79.7 | 706 | 79.6 | 8 | 635 | 88.5 | 635 | 88.4 | 638 | 88.0 |
483.xalancbmk | 8 | 444 | 124 | 444 | 124 | 442 | 125 | 8 | 444 | 124 | 444 | 124 | 442 | 125 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M Hardware Prefetch Enabled, Adjacent Sector Prefetch Disabled 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
