| CPU2006 license: | 22 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730, Package ID l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User, Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

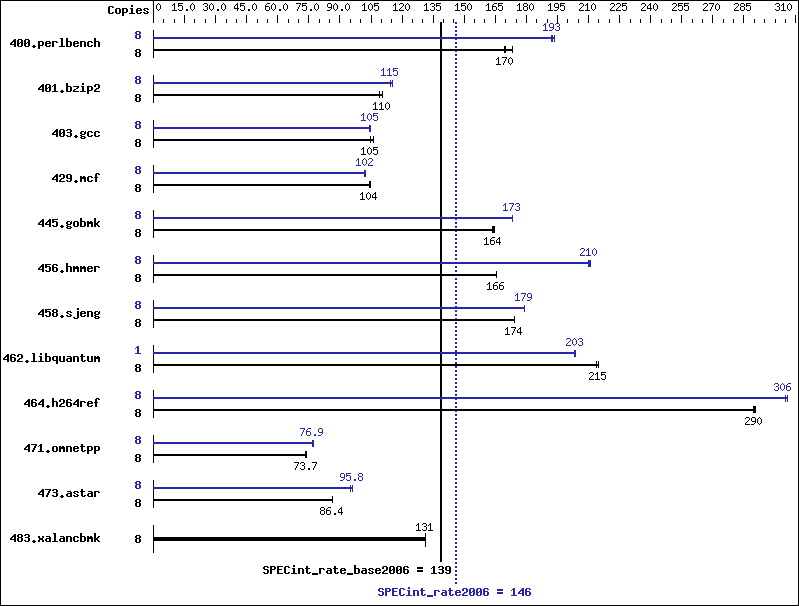

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 452 | 173 | 461 | 169 | 461 | 170 | 8 | 407 | 192 | 405 | 193 | 403 | 194 |
| 401.bzip2 | 8 | 699 | 110 | 708 | 109 | 698 | 111 | 8 | 674 | 115 | 668 | 115 | 675 | 114 |
| 403.gcc | 8 | 615 | 105 | 608 | 106 | 616 | 105 | 8 | 615 | 105 | 615 | 105 | 619 | 104 |
| 429.mcf | 8 | 699 | 104 | 698 | 105 | 700 | 104 | 8 | 714 | 102 | 715 | 102 | 715 | 102 |
| 445.gobmk | 8 | 512 | 164 | 510 | 165 | 512 | 164 | 8 | 485 | 173 | 485 | 173 | 485 | 173 |
| 456.hmmer | 8 | 451 | 166 | 451 | 166 | 451 | 165 | 8 | 354 | 211 | 355 | 210 | 355 | 210 |
| 458.sjeng | 8 | 556 | 174 | 556 | 174 | 556 | 174 | 8 | 540 | 179 | 540 | 179 | 541 | 179 |
| 462.libquantum | 8 | 772 | 215 | 776 | 214 | 772 | 215 | 1 | 102 | 204 | 102 | 203 | 102 | 203 |
| 464.h264ref | 8 | 609 | 290 | 611 | 290 | 611 | 290 | 8 | 579 | 306 | 580 | 305 | 579 | 306 |
| 471.omnetpp | 8 | 680 | 73.5 | 679 | 73.7 | 678 | 73.7 | 8 | 650 | 76.9 | 650 | 76.9 | 649 | 77.0 |
| 473.astar | 8 | 648 | 86.6 | 651 | 86.2 | 650 | 86.4 | 8 | 586 | 95.8 | 589 | 95.3 | 585 | 96.0 |
| 483.xalancbmk | 8 | 420 | 132 | 420 | 131 | 420 | 131 | 8 | 420 | 132 | 420 | 131 | 420 | 131 |
Submit Notes
The config file option 'submit' was used. taskset has been used to bind processes to CPUs
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default).
Platform Notes
BIOS configuration: Enhanced Speedstep Technology = Disable C1 Enhanced Mode = Disable Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable SnoopFilter = Enable
General Notes
For information about Fujitsu Siemens Computers please see: All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
