CPU2006 license: | 22 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Oct-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5270 |
CPU Characteristics: | |
CPU MHz: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730, Package ID l_cproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User, Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

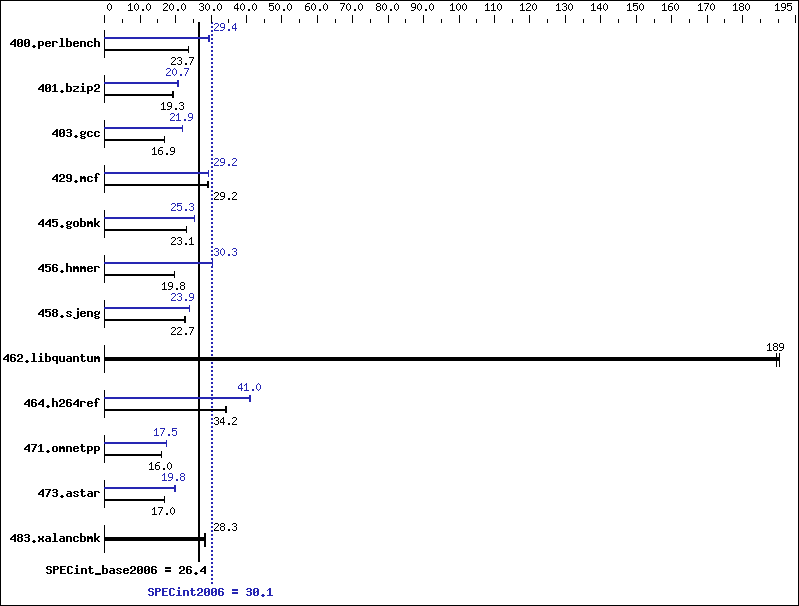

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 413 | 23.6 | 411 | 23.8 | 412 | 23.7 | 332 | 29.4 | 333 | 29.3 | 331 | 29.5 |
401.bzip2 | 501 | 19.3 | 504 | 19.1 | 500 | 19.3 | 466 | 20.7 | 466 | 20.7 | 467 | 20.6 |
403.gcc | 476 | 16.9 | 476 | 16.9 | 478 | 16.8 | 368 | 21.9 | 368 | 21.9 | 368 | 21.9 |
429.mcf | 313 | 29.1 | 312 | 29.2 | 312 | 29.2 | 312 | 29.2 | 312 | 29.2 | 312 | 29.2 |
445.gobmk | 454 | 23.1 | 454 | 23.1 | 454 | 23.1 | 415 | 25.3 | 415 | 25.3 | 414 | 25.3 |
456.hmmer | 472 | 19.8 | 472 | 19.8 | 472 | 19.8 | 308 | 30.3 | 308 | 30.3 | 308 | 30.3 |
458.sjeng | 534 | 22.7 | 533 | 22.7 | 537 | 22.5 | 509 | 23.8 | 507 | 23.9 | 506 | 23.9 |
462.libquantum | 109 | 190 | 109 | 189 | 109 | 189 | 109 | 190 | 109 | 189 | 109 | 189 |
464.h264ref | 647 | 34.2 | 647 | 34.2 | 647 | 34.2 | 542 | 40.8 | 540 | 41.0 | 540 | 41.0 |
471.omnetpp | 392 | 16.0 | 393 | 15.9 | 392 | 16.0 | 357 | 17.5 | 356 | 17.5 | 357 | 17.5 |
473.astar | 414 | 17.0 | 414 | 17.0 | 420 | 16.7 | 355 | 19.8 | 354 | 19.8 | 354 | 19.8 |
483.xalancbmk | 244 | 28.3 | 245 | 28.2 | 244 | 28.3 | 244 | 28.3 | 245 | 28.2 | 244 | 28.3 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
BIOS configuration: Enhanced Speedstep Technology = Disable C1 Enhanced Mode = Disable Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable SnoopFilter = Disable
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
