CPU2006 license: | 22 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7450 |
CPU Characteristics: | 1067 MHz system bus |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 9 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16x4 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x SAS, 36 GB, 10000 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap Library, Version 8.1 Binutils 2.18.50.0.7.20080502 |

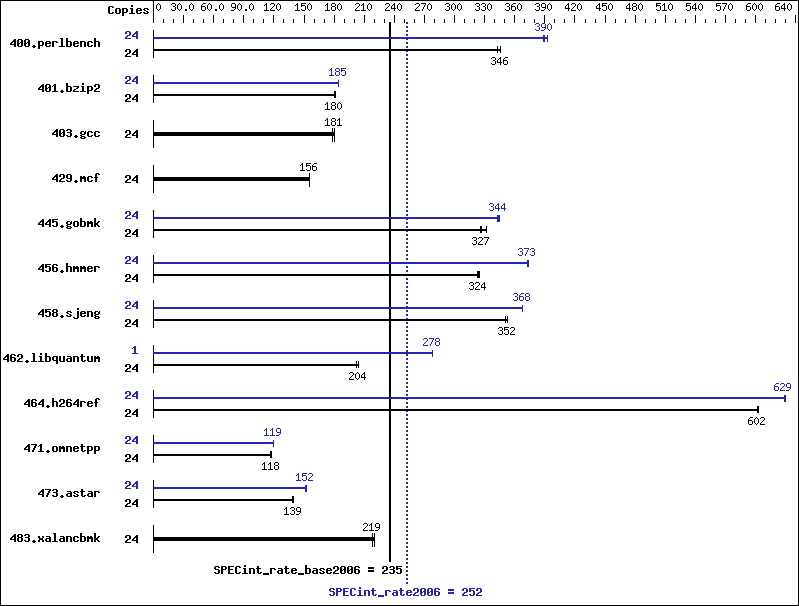

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 684 | 343 | 678 | 346 | 677 | 346 | 24 | 597 | 393 | 602 | 390 | 603 | 389 |
401.bzip2 | 24 | 1287 | 180 | 1280 | 181 | 1283 | 180 | 24 | 1254 | 185 | 1255 | 185 | 1255 | 184 |
403.gcc | 24 | 1081 | 179 | 1069 | 181 | 1069 | 181 | 24 | 1081 | 179 | 1069 | 181 | 1069 | 181 |
429.mcf | 24 | 1409 | 155 | 1405 | 156 | 1404 | 156 | 24 | 1409 | 155 | 1405 | 156 | 1404 | 156 |
445.gobmk | 24 | 759 | 332 | 773 | 326 | 771 | 327 | 24 | 732 | 344 | 729 | 345 | 734 | 343 |
456.hmmer | 24 | 693 | 323 | 690 | 324 | 690 | 324 | 24 | 601 | 373 | 599 | 374 | 600 | 373 |
458.sjeng | 24 | 824 | 352 | 824 | 353 | 828 | 351 | 24 | 790 | 368 | 790 | 368 | 789 | 368 |
462.libquantum | 24 | 2463 | 202 | 2438 | 204 | 2430 | 205 | 1 | 74.6 | 278 | 74.5 | 278 | 74.6 | 278 |
464.h264ref | 24 | 882 | 602 | 881 | 603 | 883 | 602 | 24 | 844 | 629 | 844 | 629 | 843 | 630 |
471.omnetpp | 24 | 1284 | 117 | 1274 | 118 | 1271 | 118 | 24 | 1258 | 119 | 1258 | 119 | 1258 | 119 |
473.astar | 24 | 1213 | 139 | 1208 | 139 | 1205 | 140 | 24 | 1109 | 152 | 1110 | 152 | 1109 | 152 |
483.xalancbmk | 24 | 758 | 219 | 751 | 220 | 760 | 218 | 24 | 758 | 219 | 751 | 220 | 760 | 218 |
All binaries were built with 32-bit mode except: 401.bzip2 and 456.hmmer in peak were built with 64-bit mode.
The config file option 'submit' was used. taskset has been used to bind processes to cores except for 462.libquantum peak
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default) KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
