SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R900 (Intel Xeon X7460, 2.66 GHz)

CPU2006 license: 55 Test date: Sep-2008
Test sponsor: Dell Inc. Hardware Availability: Sep-2008
Tested by: Dell Inc. Software Availability: Nov-2008

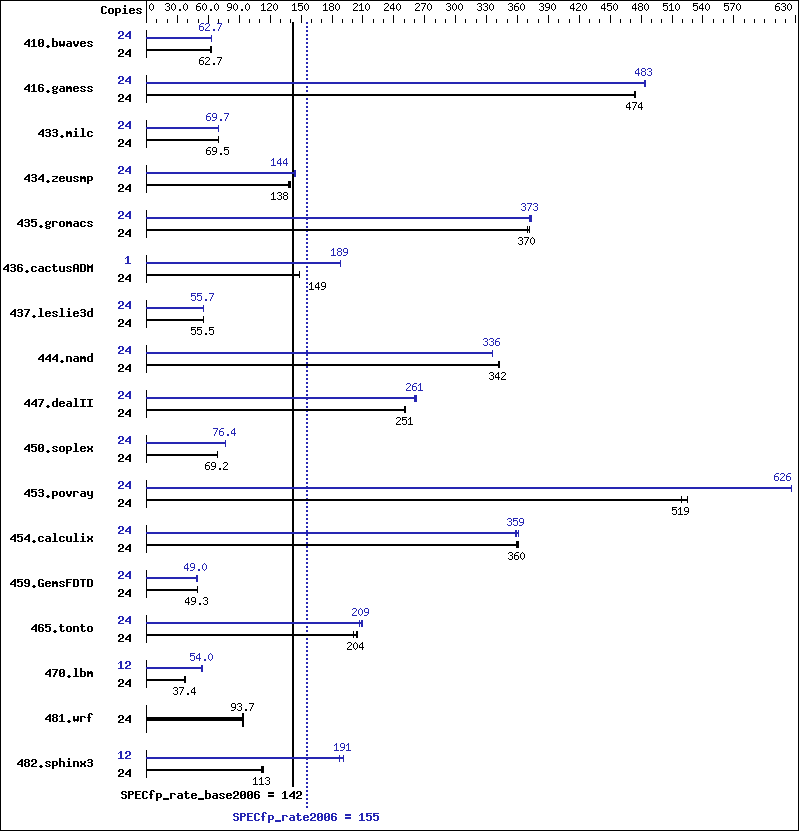

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7460
CPU Characteristics:
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 24 cores, 4 chips, 6 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 9 MB I+D on chip per chip, 3 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4GB DDR2-667 FBDIMM)
Disk Subsystem: 2 x 36 GB SAS 15000 RPM (RAID-0) for OS,
1 x 73 GB SAS 10000 RPM for benchmark
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16-60.0.21-smp
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042,
l_fproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 5221 62.5 5198 62.7 5198 62.7 24 5198   62.7 5199   62.7 5198   62.8
416.gamess 24 991 474   990 475   992 474   24 970   484   973   483   972   483
433.milc 24 3172 69.5 3174 69.4 3172 69.5 24 3161   69.7 3161   69.7 3160   69.7
434.zeusmp 24 1579 138   1565 140   1580 138   24 1519   144   1514   144   1521   144
435.gromacs 24 462 371   464 369   464 370   24 461   372   459   373   458   374
436.cactusADM 24 1930 149   1929 149   1926 149   1 63.6 188   63.4 189   63.4 189
437.leslie3d 24 4062 55.5 4063 55.5 4064 55.5 24 4051   55.7 4052   55.7 4052   55.7
444.namd 24 563 342   563 342   563 342   24 573   336   573   336   573   336
447.dealII 24 1095 251   1095 251   1094 251   24 1050   262   1055   260   1052   261
450.soplex 24 2901 69.0 2893 69.2 2893 69.2 24 2621   76.4 2621   76.4 2622   76.3
453.povray 24 246 519   243 525   246 519   24 204   626   204   626   204   625
454.calculix 24 549 361   551 359   550 360   24 548   361   552   358   551   359
459.GemsFDTD 24 5184 49.1 5164 49.3 5161 49.3 24 5210   48.9 5196   49.0 5199   49.0
465.tonto 24 1174 201   1159 204   1153 205   24 1128   209   1144   206   1131   209
470.lbm 24 8828 37.4 8803 37.5 8805 37.4 12 3053   54.0 3048   54.1 3064   53.8
481.wrf 24 2872 93.4 2860 93.7 2861 93.7 24 2872   93.4 2860   93.7 2861   93.7
482.sphinx3 24 4185 112   4147 113   4135 113   12 1224   191   1246   188   1226   191

Submit Notes

The config file option 'submit' was used.
For peak modules using 1/2 the number of available cores, each
copy was assigned to a single L2 cache using mysubmit.pl script.
See the flags description file for mysubmit.pl details.

Operating System Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Platform Notes

 BIOS Settings:
 Hardware Prefetcher = Disabled (Default = Enabled)
 Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
 High Bandwidth = Enabled (Default = Disabled)

General Notes

 All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex
 and 482.sphinx3, at peak, are compiled in 32-bit mode
 taskset was used to bind processes to cores except
 for 436.cactusADM peak
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Fortran benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  /opt/intel/Compiler/11.0/042/bin/ia32/icc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.0/042/bin/ia32/icpc   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/Compiler/11.0/042/bin/ia32/ifort   -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib   -I/opt/intel/Compiler/11.0/042/ipp/ia32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias
470.lbm:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
482.sphinx3:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -opt-prefetch
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -opt-prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.06.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090713.05.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.06.xml.
