| CPU2006 license: | 55 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 667 MHz ECC CL5 FB-DIMM) |
| Disk Subsystem: | 1 x 80 GB 5400 RPM SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

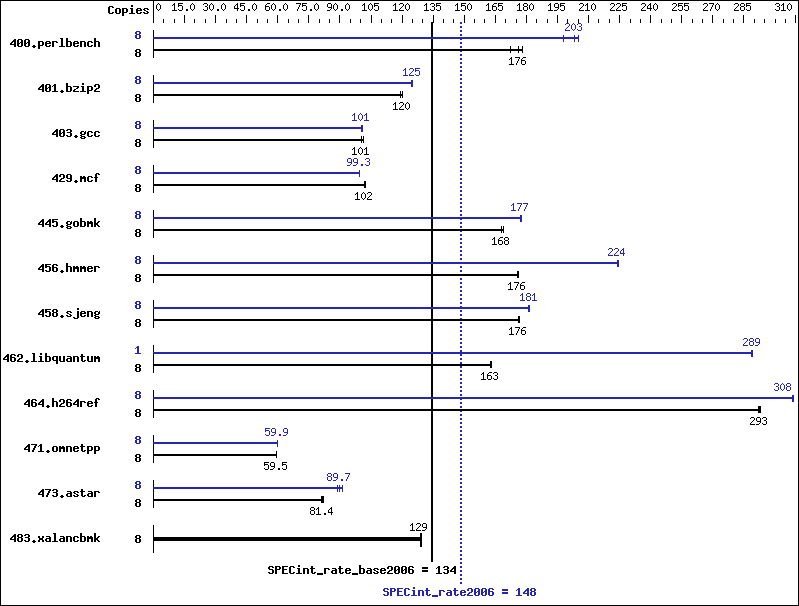

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 454 | 172 | 438 | 178 | 444 | 176 | 8 | 385 | 203 | 395 | 198 | 381 | 205 |
| 401.bzip2 | 8 | 643 | 120 | 644 | 120 | 649 | 119 | 8 | 618 | 125 | 619 | 125 | 616 | 125 |
| 403.gcc | 8 | 641 | 101 | 637 | 101 | 640 | 101 | 8 | 640 | 101 | 638 | 101 | 642 | 100 |
| 429.mcf | 8 | 715 | 102 | 715 | 102 | 715 | 102 | 8 | 734 | 99.4 | 735 | 99.3 | 735 | 99.3 |
| 445.gobmk | 8 | 500 | 168 | 497 | 169 | 500 | 168 | 8 | 473 | 177 | 473 | 178 | 474 | 177 |
| 456.hmmer | 8 | 424 | 176 | 424 | 176 | 424 | 176 | 8 | 332 | 225 | 333 | 224 | 334 | 224 |
| 458.sjeng | 8 | 549 | 176 | 547 | 177 | 550 | 176 | 8 | 534 | 181 | 534 | 181 | 534 | 181 |
| 462.libquantum | 8 | 1018 | 163 | 1018 | 163 | 1017 | 163 | 1 | 71.7 | 289 | 71.7 | 289 | 71.8 | 289 |
| 464.h264ref | 8 | 604 | 293 | 606 | 292 | 605 | 293 | 8 | 574 | 308 | 574 | 308 | 573 | 309 |
| 471.omnetpp | 8 | 841 | 59.5 | 841 | 59.5 | 840 | 59.5 | 8 | 837 | 59.7 | 834 | 60.0 | 834 | 59.9 |
| 473.astar | 8 | 690 | 81.4 | 691 | 81.3 | 685 | 82.0 | 8 | 617 | 91.0 | 631 | 89.0 | 626 | 89.7 |
| 483.xalancbmk | 8 | 428 | 129 | 427 | 129 | 429 | 129 | 8 | 428 | 129 | 427 | 129 | 429 | 129 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Platform Notes
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
