CPU2006 license: | 3 | Test date: | Aug-2008 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2008 |
Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7450 |
CPU Characteristics: | 2.40 GHz, 12 MB L3 shared, 1066 MHz system bus |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 9 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16x4 GB PC2-5300F CL5) |
Disk Subsystem: | 1x146 GB 10 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

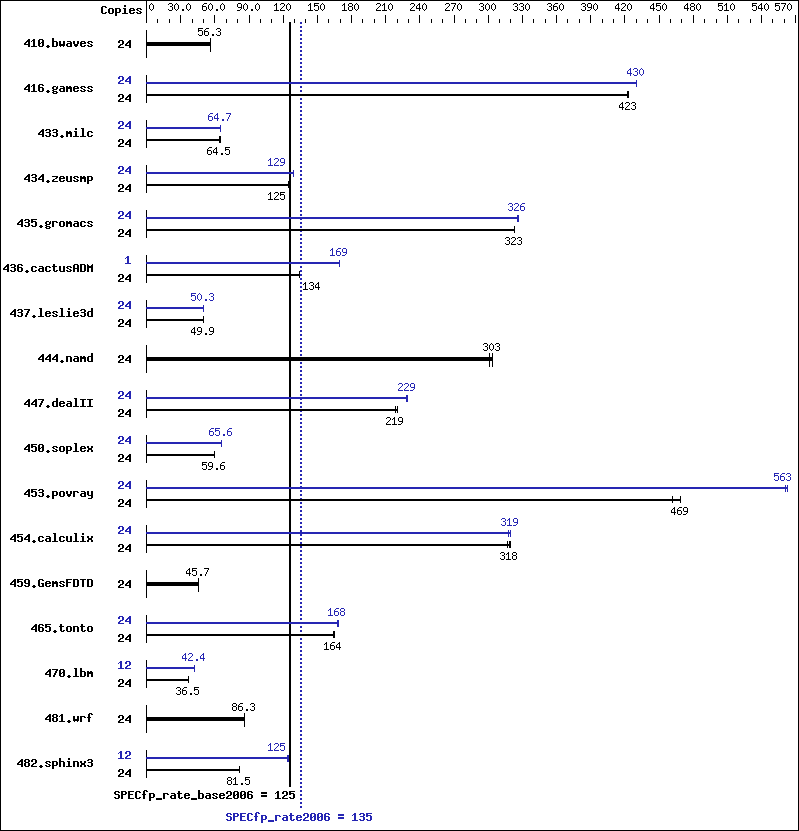

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 5803 | 56.2 | 5797 | 56.3 | 5797 | 56.3 | 24 | 5803 | 56.2 | 5797 | 56.3 | 5797 | 56.3 |
416.gamess | 24 | 1113 | 422 | 1109 | 424 | 1111 | 423 | 24 | 1092 | 430 | 1092 | 430 | 1093 | 430 |
433.milc | 24 | 3419 | 64.4 | 3413 | 64.5 | 3418 | 64.5 | 24 | 3404 | 64.7 | 3405 | 64.7 | 3405 | 64.7 |
434.zeusmp | 24 | 1757 | 124 | 1747 | 125 | 1754 | 125 | 24 | 1695 | 129 | 1692 | 129 | 1694 | 129 |
435.gromacs | 24 | 530 | 323 | 530 | 323 | 531 | 323 | 24 | 527 | 325 | 524 | 327 | 526 | 326 |
436.cactusADM | 24 | 2133 | 134 | 2134 | 134 | 2132 | 135 | 1 | 70.6 | 169 | 70.6 | 169 | 70.7 | 169 |
437.leslie3d | 24 | 4522 | 49.9 | 4519 | 49.9 | 4521 | 49.9 | 24 | 4483 | 50.3 | 4481 | 50.3 | 4484 | 50.3 |
444.namd | 24 | 635 | 303 | 634 | 303 | 640 | 301 | 24 | 635 | 303 | 634 | 303 | 640 | 301 |
447.dealII | 24 | 1257 | 218 | 1255 | 219 | 1248 | 220 | 24 | 1202 | 228 | 1199 | 229 | 1199 | 229 |
450.soplex | 24 | 3361 | 59.6 | 3366 | 59.5 | 3358 | 59.6 | 24 | 3055 | 65.5 | 3051 | 65.6 | 3051 | 65.6 |
453.povray | 24 | 272 | 469 | 276 | 462 | 272 | 469 | 24 | 227 | 563 | 228 | 561 | 227 | 563 |
454.calculix | 24 | 622 | 318 | 619 | 320 | 624 | 317 | 24 | 620 | 319 | 619 | 320 | 623 | 318 |
459.GemsFDTD | 24 | 5578 | 45.7 | 5573 | 45.7 | 5571 | 45.7 | 24 | 5578 | 45.7 | 5573 | 45.7 | 5571 | 45.7 |
465.tonto | 24 | 1442 | 164 | 1433 | 165 | 1438 | 164 | 24 | 1400 | 169 | 1406 | 168 | 1406 | 168 |
470.lbm | 24 | 9033 | 36.5 | 9045 | 36.5 | 9048 | 36.4 | 12 | 3883 | 42.5 | 3934 | 41.9 | 3885 | 42.4 |
481.wrf | 24 | 3115 | 86.1 | 3106 | 86.3 | 3103 | 86.4 | 24 | 3115 | 86.1 | 3106 | 86.3 | 3103 | 86.4 |
482.sphinx3 | 24 | 5735 | 81.6 | 5738 | 81.5 | 5743 | 81.5 | 12 | 1876 | 125 | 1888 | 124 | 1877 | 125 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak For peak modules using 1/2 the number of available cores, each copy was assigned to a single L2 cache using mysubmit.pl script. See the flags description file for mysubmit.pl details.
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled Hardware Prefetcher Disabled Defer All Transactions Enabled
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
/opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -scalar-rep- -opt-prefetch -opt-malloc-options=3 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | basepeak = yes |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
