| CPU2006 license: | 9008 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Sep-2008 |
| Tested by: | ACTION S.A. | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7430 |
| CPU Characteristics: | Quad-Core, 1066 MHz bus |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (8x 2 GB PC2-5300 ECC FBDIMM) |
| Disk Subsystem: | 1x 250 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

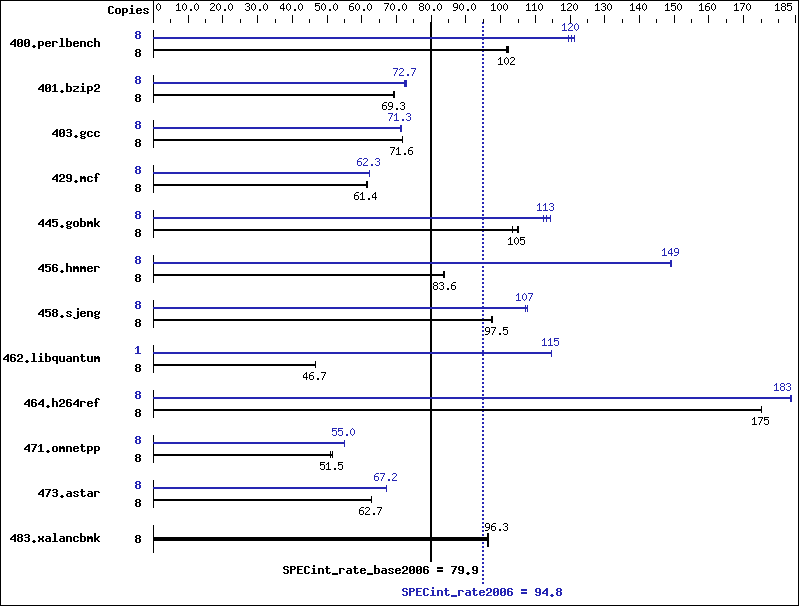

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 768 | 102 | 764 | 102 | 767 | 102 | 8 | 649 | 120 | 653 | 120 | 645 | 121 |
| 401.bzip2 | 8 | 1112 | 69.4 | 1114 | 69.3 | 1116 | 69.1 | 8 | 1061 | 72.7 | 1061 | 72.7 | 1066 | 72.4 |
| 403.gcc | 8 | 897 | 71.8 | 899 | 71.6 | 900 | 71.6 | 8 | 900 | 71.6 | 903 | 71.3 | 905 | 71.1 |
| 429.mcf | 8 | 1189 | 61.4 | 1188 | 61.4 | 1184 | 61.6 | 8 | 1172 | 62.3 | 1173 | 62.2 | 1171 | 62.3 |
| 445.gobmk | 8 | 797 | 105 | 801 | 105 | 810 | 104 | 8 | 734 | 114 | 748 | 112 | 742 | 113 |
| 456.hmmer | 8 | 894 | 83.5 | 892 | 83.6 | 891 | 83.7 | 8 | 501 | 149 | 500 | 149 | 500 | 149 |
| 458.sjeng | 8 | 992 | 97.6 | 993 | 97.5 | 995 | 97.3 | 8 | 904 | 107 | 899 | 108 | 904 | 107 |
| 462.libquantum | 8 | 3543 | 46.8 | 3547 | 46.7 | 3546 | 46.7 | 1 | 181 | 115 | 181 | 115 | 181 | 115 |
| 464.h264ref | 8 | 1010 | 175 | 1011 | 175 | 1010 | 175 | 8 | 964 | 184 | 965 | 183 | 965 | 183 |
| 471.omnetpp | 8 | 970 | 51.6 | 979 | 51.1 | 971 | 51.5 | 8 | 908 | 55.0 | 909 | 55.0 | 909 | 55.0 |
| 473.astar | 8 | 896 | 62.7 | 896 | 62.7 | 896 | 62.7 | 8 | 835 | 67.2 | 836 | 67.2 | 837 | 67.1 |
| 483.xalancbmk | 8 | 574 | 96.2 | 573 | 96.3 | 571 | 96.6 | 8 | 574 | 96.2 | 573 | 96.3 | 571 | 96.6 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode. Taskset command was used to bind processes to CPUs.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
