| CPU2006 license: | 3388 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Dec-2007 |
| Tested by: | ACTION S.A. | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7210 |
| CPU Characteristics: | 1066 MHz bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x 2 GB PC2-5300 ECC FBDIMM) |
| Disk Subsystem: | 1x 250 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

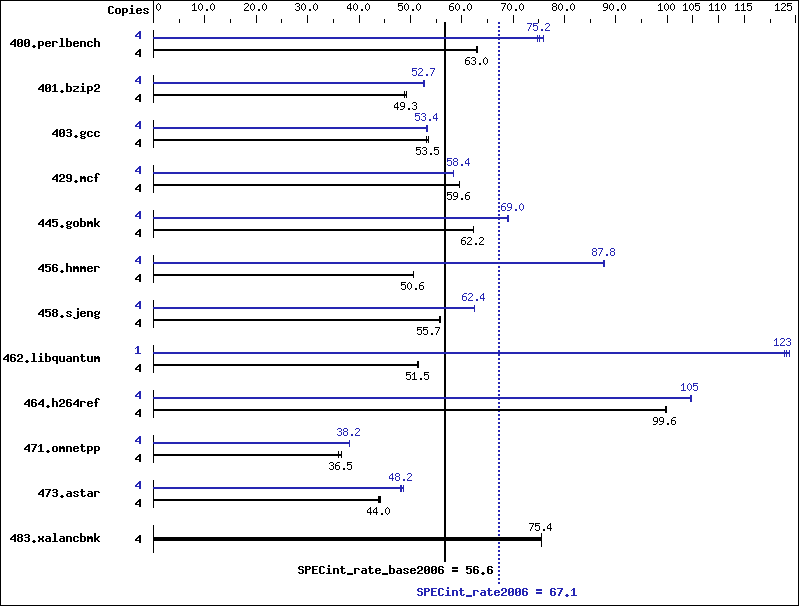

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 620 | 63.0 | 620 | 63.0 | 622 | 62.9 | 4 | 520 | 75.2 | 515 | 75.9 | 523 | 74.8 |
| 401.bzip2 | 4 | 783 | 49.3 | 783 | 49.3 | 789 | 48.9 | 4 | 732 | 52.7 | 733 | 52.7 | 734 | 52.6 |
| 403.gcc | 4 | 602 | 53.5 | 602 | 53.5 | 606 | 53.1 | 4 | 605 | 53.2 | 604 | 53.4 | 603 | 53.4 |
| 429.mcf | 4 | 613 | 59.5 | 612 | 59.6 | 612 | 59.6 | 4 | 624 | 58.4 | 625 | 58.4 | 625 | 58.3 |
| 445.gobmk | 4 | 674 | 62.3 | 674 | 62.2 | 674 | 62.2 | 4 | 608 | 69.0 | 608 | 69.0 | 608 | 69.0 |
| 456.hmmer | 4 | 737 | 50.6 | 737 | 50.6 | 737 | 50.6 | 4 | 426 | 87.6 | 425 | 87.8 | 425 | 87.8 |
| 458.sjeng | 4 | 869 | 55.7 | 867 | 55.8 | 871 | 55.6 | 4 | 775 | 62.4 | 775 | 62.4 | 775 | 62.4 |
| 462.libquantum | 4 | 1608 | 51.5 | 1615 | 51.3 | 1609 | 51.5 | 1 | 169 | 123 | 168 | 123 | 167 | 124 |
| 464.h264ref | 4 | 887 | 99.8 | 889 | 99.6 | 889 | 99.6 | 4 | 847 | 105 | 847 | 105 | 846 | 105 |
| 471.omnetpp | 4 | 694 | 36.0 | 684 | 36.5 | 683 | 36.6 | 4 | 655 | 38.2 | 656 | 38.1 | 654 | 38.2 |
| 473.astar | 4 | 641 | 43.8 | 637 | 44.1 | 638 | 44.0 | 4 | 583 | 48.2 | 576 | 48.7 | 583 | 48.2 |
| 483.xalancbmk | 4 | 366 | 75.5 | 366 | 75.4 | 366 | 75.4 | 4 | 366 | 75.5 | 366 | 75.4 | 366 | 75.4 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode. Taskset command was used to bind processes to CPUs.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
