SPEC® CFP2006 Result

Dell Inc.

PowerEdge M805 (AMD Opteron 2356, 2.3 GHz)

SPECfp®2006 = 14.9

SPECfp_base2006 = 13.0

CPU2006 license:	55	Test date:	Aug-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Aug-2008
Tested by:	Dell Inc.	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 2356
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	16 GB (8 x 2 GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 36 GB SAS 15000 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

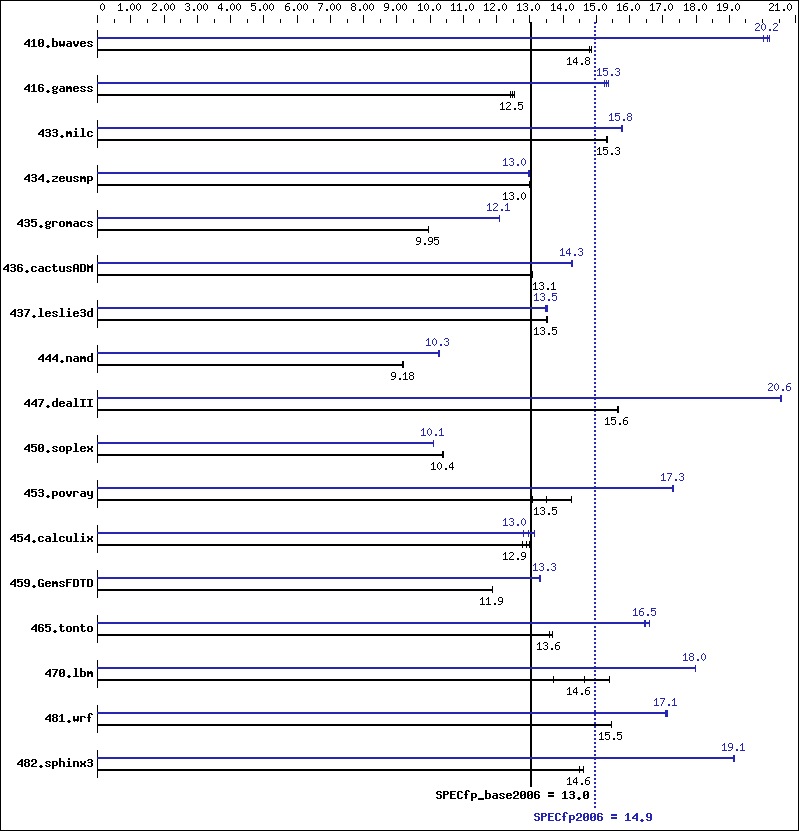

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	918	14.8	916	14.8	914	14.9	679	20.0	673	20.2	674	20.2
416.gamess	1562	12.5	1568	12.5	1577	12.4	1280	15.3	1284	15.2	1275	15.4
433.milc	599	15.3	599	15.3	599	15.3	582	15.8	582	15.8	583	15.8
434.zeusmp	700	13.0	701	13.0	701	13.0	701	13.0	703	12.9	700	13.0
435.gromacs	718	9.95	717	9.95	717	9.96	591	12.1	590	12.1	590	12.1
436.cactusADM	918	13.0	914	13.1	913	13.1	836	14.3	838	14.3	836	14.3
437.leslie3d	697	13.5	696	13.5	695	13.5	697	13.5	698	13.5	695	13.5
444.namd	873	9.19	875	9.17	873	9.18	782	10.3	781	10.3	780	10.3
447.dealII	731	15.7	732	15.6	732	15.6	557	20.6	556	20.6	556	20.6
450.soplex	802	10.4	802	10.4	804	10.4	826	10.1	826	10.1	825	10.1
453.povray	394	13.5	407	13.1	373	14.3	307	17.3	307	17.3	308	17.3
454.calculix	640	12.9	636	13.0	646	12.8	628	13.1	637	13.0	644	12.8
459.GemsFDTD	893	11.9	893	11.9	894	11.9	798	13.3	796	13.3	799	13.3
465.tonto	719	13.7	724	13.6	724	13.6	597	16.5	593	16.6	598	16.5
470.lbm	939	14.6	892	15.4	1002	13.7	764	18.0	764	18.0	763	18.0
481.wrf	723	15.5	723	15.5	722	15.5	652	17.1	653	17.1	654	17.1
482.sphinx3	1334	14.6	1333	14.6	1345	14.5	1017	19.2	1018	19.1	1018	19.1

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages = 1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Fortran benchmarks:

-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
433.milc:	pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -m3dnow
482.sphinx3:	-march=barcelona -Ofast

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1
465.tonto:	-march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-fast -Mfpapprox=rsqrt -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:aggstr=0
454.calculix:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -OPT:malloc_alg=1 -m3dnow -LANG:copyinout=off -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:

-w -Mipa=jobs:4

C++ benchmarks:

444.namd:

-w -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:	-w -Mipa=jobs:4(pass 2)
434.zeusmp:	-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:	-w -Mipa=jobs:4
454.calculix:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.xml.
