| CPU2006 license: | 20 | Test date: | Jul-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

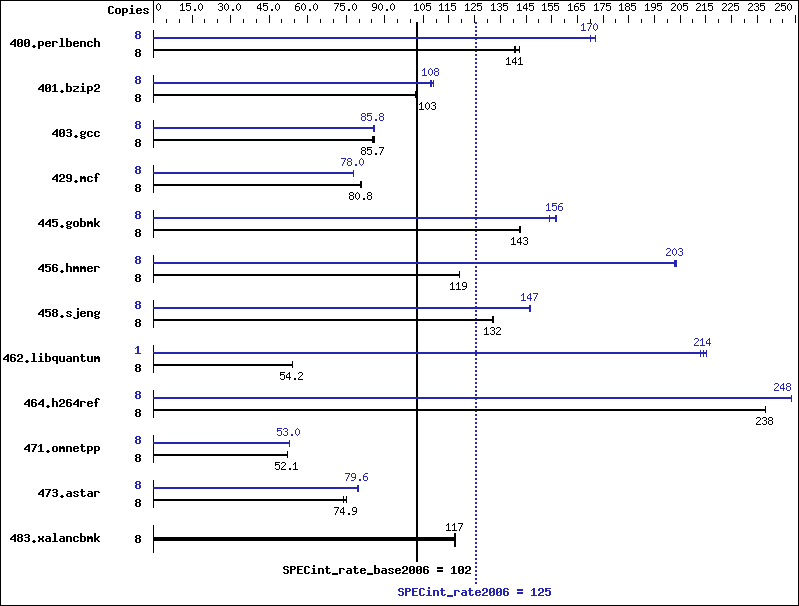

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 549 | 142 | 555 | 141 | 556 | 141 | 8 | 455 | 172 | 459 | 170 | 460 | 170 |
| 401.bzip2 | 8 | 752 | 103 | 752 | 103 | 757 | 102 | 8 | 716 | 108 | 709 | 109 | 713 | 108 |
| 403.gcc | 8 | 752 | 85.7 | 756 | 85.2 | 749 | 85.9 | 8 | 754 | 85.5 | 751 | 85.8 | 749 | 86.0 |
| 429.mcf | 8 | 901 | 81.0 | 902 | 80.8 | 907 | 80.5 | 8 | 935 | 78.0 | 935 | 78.0 | 937 | 77.8 |
| 445.gobmk | 8 | 588 | 143 | 588 | 143 | 587 | 143 | 8 | 535 | 157 | 544 | 154 | 537 | 156 |
| 456.hmmer | 8 | 626 | 119 | 626 | 119 | 626 | 119 | 8 | 367 | 203 | 368 | 203 | 368 | 203 |
| 458.sjeng | 8 | 734 | 132 | 731 | 132 | 732 | 132 | 8 | 662 | 146 | 660 | 147 | 660 | 147 |
| 462.libquantum | 8 | 3057 | 54.2 | 3055 | 54.3 | 3057 | 54.2 | 1 | 96.7 | 214 | 97.3 | 213 | 96.3 | 215 |
| 464.h264ref | 8 | 743 | 238 | 744 | 238 | 743 | 238 | 8 | 713 | 248 | 713 | 248 | 712 | 248 |
| 471.omnetpp | 8 | 960 | 52.1 | 960 | 52.1 | 959 | 52.1 | 8 | 944 | 53.0 | 944 | 53.0 | 944 | 53.0 |
| 473.astar | 8 | 749 | 74.9 | 758 | 74.1 | 748 | 75.1 | 8 | 706 | 79.6 | 705 | 79.7 | 706 | 79.6 |
| 483.xalancbmk | 8 | 471 | 117 | 470 | 117 | 470 | 118 | 8 | 471 | 117 | 470 | 117 | 470 | 118 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode BIOS settings : Hardware Prefetcher : Enabled Adjacent Cache-Line Prefetch : Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
