SPEC® CINT2006 Result

IBM Corporation

IBM BladeCenter LS22 (AMD Opteron 2347 HE)

SPECint®_rate2006 = 87.8

SPECint_rate_base2006 = 76.4

CPU2006 license:	11	Test date:	Jul-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Sep-2008
Tested by:	IBM Corporation	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 2347 HE
CPU Characteristics:
CPU MHz:	1900
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (8 x 4 GB DDR2-6400 ECC)
Disk Subsystem:	1 x 73 GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ext2
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 8.0 32-bit Library for Linux

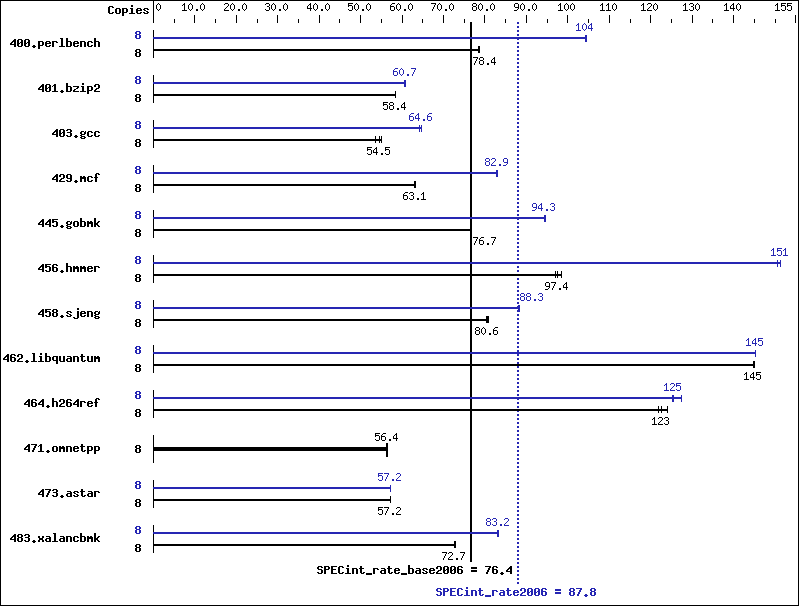

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	997	78.4	997	78.4	994	78.6	8	747	105	749	104	750	104
401.bzip2	8	1323	58.3	1322	58.4	1322	58.4	8	1275	60.5	1270	60.8	1271	60.7
403.gcc	8	1182	54.5	1168	55.1	1203	53.5	8	997	64.6	1004	64.2	997	64.6
429.mcf	8	1157	63.0	1155	63.1	1155	63.1	8	880	82.9	880	82.9	879	83.0
445.gobmk	8	1096	76.6	1095	76.7	1093	76.8	8	887	94.6	890	94.3	890	94.3
456.hmmer	8	770	96.9	766	97.4	757	98.5	8	493	151	493	151	496	150
458.sjeng	8	1199	80.7	1206	80.3	1200	80.6	8	1096	88.3	1098	88.1	1094	88.4
462.libquantum	8	1144	145	1144	145	1142	145	8	1141	145	1142	145	1142	145
464.h264ref	8	1452	122	1427	124	1444	123	8	1389	127	1412	125	1412	125
471.omnetpp	8	885	56.5	888	56.3	886	56.4	8	885	56.5	888	56.3	886	56.4
473.astar	8	980	57.3	981	57.2	981	57.2	8	982	57.2	982	57.2	982	57.2
483.xalancbmk	8	758	72.9	759	72.7	759	72.7	8	663	83.3	665	83.1	663	83.2

Operating System Notes

 'numactl' was used to bind copies to the cores
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600'  was used to set environment locked pages in memory limit
 Environment variable PGI_HUGE_PAGES set to 896
 Set vm/nr_hugepages=7168 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 Processor Performance States Disabled in BIOS
 Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

-fastsse -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -tp barcelona -Bstatic_pgi

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pgcc
400.perlbench:	pathcc
403.gcc:	pathcc
445.gobmk:	pathcc

C++ benchmarks (except as noted below):

	pathCC
471.omnetpp:	pgcpp

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-Mpfi(pass 1) -Mpfo(pass 2) -fast -O4 -Msmartalloc=huge:150 -Mnounroll -tp barcelona-64 -Bstatic_pgi
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast
429.mcf:	-fastsse -Mipa=fast -Mipa=inline:1 -Msmartalloc=huge:150 -tp barcelona -Bstatic_pgi
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -LNO:opt=0 -CG:p2align=on
456.hmmer:	-fastsse -Munroll=n:8 -Msmartalloc=huge:150 -Mfprelaxed -Mvect=partial -Msafeptr -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline:1(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
462.libquantum:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Munroll=m:8 -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-Mpfi=indirect(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo=indirect(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-march=barcelona -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -IPA:plimit=525 -m32 -lsmartheap
483.xalancbmk:	-march=barcelona -Ofast -m32 -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

	-w -Mipa=jobs:4(pass 2)
400.perlbench:	No flags used
401.bzip2:	-w
403.gcc:	No flags used
445.gobmk:	No flags used

C++ benchmarks (except as noted below):

	-L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.01.xml.
