SPEC® CINT2006 Result

Fujitsu Siemens Computers

PRIMERGY RX200 S4, Intel Xeon E5430, 2.66 GHz

Hardware
CPU Name:	Intel Xeon E5430
CPU Characteristics:	1333 MHz system bus
CPU MHz:	2667
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC)
Disk Subsystem:	1x SAS, 73 GB, 15000 rpm
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) with SP2, kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913
Auto Parallel:	Yes
File System:	ext3
System State:	Multi-User Run Level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64

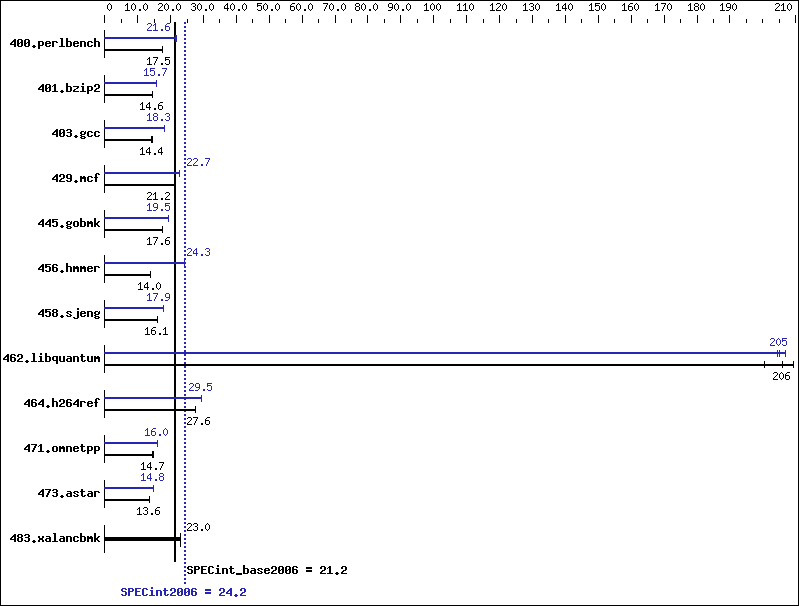

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	557	17.5	553	17.7	557	17.5	453	21.6	450	21.7	452	21.6
401.bzip2	662	14.6	662	14.6	667	14.5	615	15.7	615	15.7	614	15.7
403.gcc	561	14.3	560	14.4	557	14.4	441	18.3	441	18.2	440	18.3
429.mcf	431	21.2	430	21.2	430	21.2	401	22.8	402	22.7	401	22.7
445.gobmk	597	17.6	597	17.6	597	17.6	538	19.5	538	19.5	538	19.5
456.hmmer	667	14.0	668	14.0	668	14.0	384	24.3	384	24.3	383	24.3
458.sjeng	753	16.1	754	16.1	756	16.0	677	17.9	676	17.9	677	17.9
462.libquantum	98.9	209	103	200	101	206	100	207	101	205	101	205
464.h264ref	801	27.6	801	27.6	801	27.6	750	29.5	753	29.4	750	29.5
471.omnetpp	424	14.7	424	14.7	427	14.6	390	16.0	390	16.0	390	16.0
473.astar	516	13.6	516	13.6	520	13.5	473	14.8	473	14.9	476	14.8
483.xalancbmk	300	23.0	301	22.9	301	23.0	300	23.0	301	22.9	301	23.0

 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler.

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores (default)

 BIOS configuration:
 Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable


 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

403.gcc:

	/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include
401.bzip2:	icc
456.hmmer:	icc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32
403.gcc:	-fast -inline-calloc -opt-malloc-options=3
429.mcf:	-fast -prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4
462.libquantum:	-fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.xml.
