SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 2970 (AMD Opteron 2344 HE, 1.7 GHz)

CPU2006 license: 55 Test date: May-2008
Test sponsor: Dell Inc. Hardware Availability: Apr-2008
Tested by: Dell Inc. Software Availability: Jun-2008

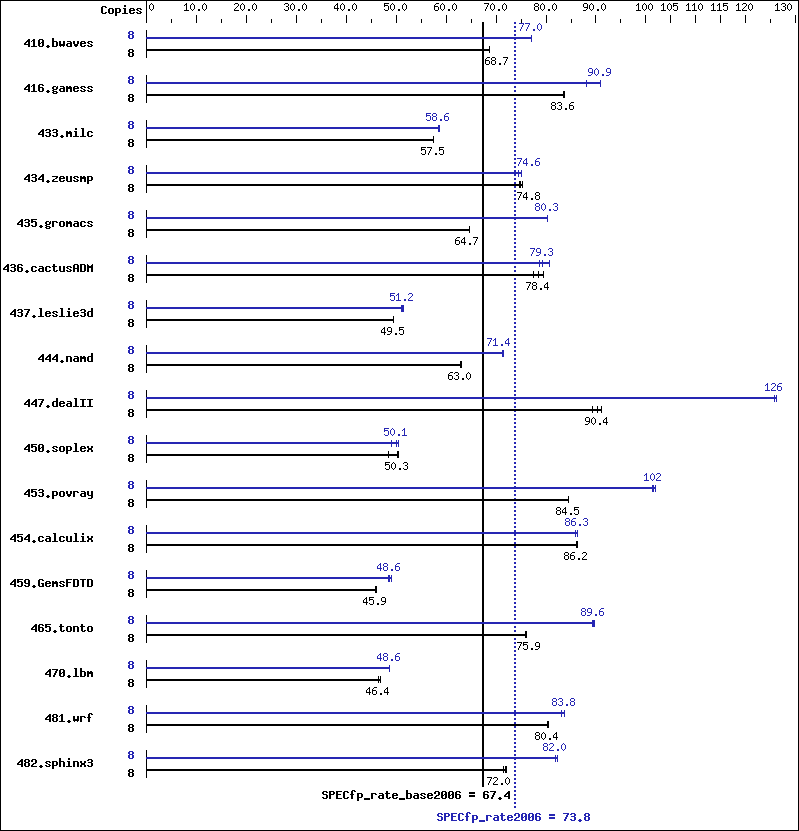

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2344 HE
CPU Characteristics:
CPU MHz: 1700
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (4 x 4GB, DDR2-667, CL5)
Disk Subsystem: 1 x 73GB 2.5" SAS 10000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1585 68.6 1582 68.7 1581 68.8 8 1411 77.0 1411 77.1 1412 77.0
416.gamess 8 1876 83.5 1870 83.8 1874 83.6 8 1723 90.9 1779 88.0 1724 90.9
433.milc 8 1278 57.5 1278 57.5 1277 57.5 8 1255 58.5 1254 58.6 1254 58.6
434.zeusmp 8 976 74.6 973 74.8 968 75.2 8 969 75.1 978 74.4 976 74.6
435.gromacs 8 883 64.7 883 64.7 883 64.7 8 711 80.3 712 80.3 712 80.2
436.cactusADM 8 1234 77.5 1219 78.4 1202 79.6 8 1216 78.6 1186 80.6 1206 79.3
437.leslie3d 8 1521 49.4 1520 49.5 1518 49.5 8 1471 51.1 1462 51.4 1469 51.2
444.namd 8 1021 62.8 1019 63.0 1018 63.0 8 899 71.3 899 71.4 899 71.4
447.dealII 8 1003 91.2 1013 90.4 1024 89.4 8 728 126   725 126   728 126
450.soplex 8 1377 48.4 1323 50.4 1326 50.3 8 1359 49.1 1333 50.1 1323 50.4
453.povray 8 504 84.5 504 84.5 504 84.4 8 419 102   420 101   418 102
454.calculix 8 764 86.4 767 86.0 766 86.2 8 765 86.3 765 86.3 768 86.0
459.GemsFDTD 8 1845 46.0 1848 45.9 1854 45.8 8 1728 49.1 1746 48.6 1750 48.5
465.tonto 8 1036 76.0 1037 75.9 1038 75.9 8 879 89.6 878 89.6 882 89.2
470.lbm 8 2369 46.4 2370 46.4 2343 46.9 8 2260 48.6 2260 48.6 2260 48.6
481.wrf 8 1113 80.3 1112 80.4 1110 80.5 8 1075 83.1 1067 83.8 1067 83.8
482.sphinx3 8 2178 71.6 2166 72.0 2163 72.1 8 1903 82.0 1895 82.3 1904 81.9

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit
 mount -t hugetlbfs nodev /mnt/hugepages
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w   -Mipa=jobs:4

C++ benchmarks:

 -w   -Mipa=jobs:4

Fortran benchmarks:

 -w   -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -w   -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
433.milc:  pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -m3dnow
482.sphinx3:  -march=barcelona   -Ofast

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:load_exe=0

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -march=barcelona   -Ofast   -m3dnow   -OPT:unroll_size=256   -CG:load_exe=0   -OPT:malloc_alg=1
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -OPT:malloc_alg=1
465.tonto:  -march=barcelona   -Ofast   -OPT:malloc_alg=1   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mfpapprox=rsqrt   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -WOPT:aggstr=0
454.calculix:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -OPT:malloc_alg=1   -m3dnow   -LANG:copyinout=off   -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:  -w   -Mipa=jobs:4

C++ benchmarks:

444.namd:  -w   -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:  -w   -Mipa=jobs:4(pass 2)
434.zeusmp:  -w   -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:  -w   -Mipa=jobs:4
454.calculix:  -w   -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.xml.
