SPEC® CINT2006 Result

Hewlett-Packard Company

ProLiant DL585 G5
(2.5 GHz AMD Opteron 8360 SE)

SPECint®_rate2006 = 110

SPECint_rate_base2006 = 94.4

CPU2006 license:	3	Test date:	Jul-2008
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Jul-2008
Tested by:	Hewlett-Packard Company	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8360 SE
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16x4 GB, PC2-5300P CL5)
Disk Subsystem:	1x146 GB 15 K SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Release 3.2
Auto Parallel:	No
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 8.1 32-bit Library for Linux

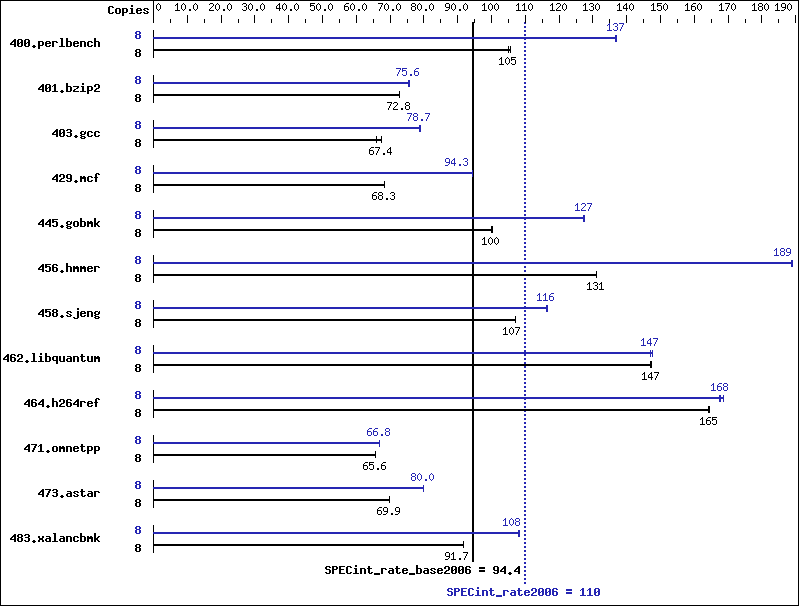

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	744	105	743	105	741	105	8	570	137	572	137	570	137
401.bzip2	8	1060	72.8	1060	72.8	1060	72.9	8	1020	75.7	1022	75.6	1022	75.6
403.gcc	8	956	67.4	976	66.0	956	67.4	8	819	78.6	818	78.7	814	79.1
429.mcf	8	1069	68.3	1069	68.3	1069	68.3	8	774	94.3	774	94.3	774	94.3
445.gobmk	8	838	100	838	100	836	100	8	659	127	659	127	659	127
456.hmmer	8	570	131	570	131	570	131	8	396	189	395	189	395	189
458.sjeng	8	904	107	904	107	904	107	8	831	116	832	116	833	116
462.libquantum	8	1126	147	1125	147	1126	147	8	1128	147	1127	147	1124	147
464.h264ref	8	1076	165	1078	164	1076	165	8	1056	168	1058	167	1049	169
471.omnetpp	8	761	65.7	763	65.6	762	65.6	8	748	66.8	749	66.8	749	66.7
473.astar	8	803	69.9	803	69.9	805	69.8	8	702	80.0	702	80.0	703	79.9
483.xalancbmk	8	602	91.7	602	91.7	602	91.6	8	511	108	511	108	510	108

Submit Notes

The config file option 'submit' was used.
 numactl used to bind processes to CPUs

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 7168.
 NCPUS set to number of cores

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Compiler Invocation

C benchmarks (except as noted below):

	pgcc
400.perlbench:	pathcc
403.gcc:	pathcc
445.gobmk:	pathcc
464.h264ref:	pathcc

C++ benchmarks (except as noted below):

	pathCC
473.astar:	pgcpp

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -fastsse -O4 -Msmartalloc=huge:896 -Mprefetch=t0 -Mnounroll -tp barcelona-64 -Bstatic_pgi
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast
429.mcf:	-fastsse -Msmartalloc=huge:896 -Mipa=jobs:4 -Mipa=fast -Mipa=inline:1 -tp barcelona -Bstatic_pgi
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on
456.hmmer:	-fastsse -Mvect=partial -Munroll=n:8 -Msmartalloc=huge:896 -Msafeptr -Mprefetch=t0 -Mfprelaxed -Mipa=jobs:4 -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-Mpfi(pass 1) -Mipa=jobs:4(pass 2) -Mipa=fast(pass 2) -Mipa=inline:1(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc=huge:896 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
462.libquantum:	-fastsse -Munroll=m:8 -Msmartalloc=huge:896 -Mprefetch=distance:4 -Mfprelaxed -Mipa=jobs:4 -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off

C++ benchmarks:

471.omnetpp:	-march=barcelona -Ofast -CG:gcm=off -INLINE:aggressive=on -OPT:alias=disjoint -WOPT:if_conv=0 -m32 -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
473.astar:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=jobs:4(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -fastsse -O4 -Msmartalloc=huge:896 -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona -Bstatic_pgi
483.xalancbmk:	-march=barcelona -Ofast -m32 -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -L/cpu2006/SmartHeap_8.1/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.20090713.xml.
