SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M9000

CPU2006 license: 19 Test date: Jun-2008
Test sponsor: Fujitsu Limited Hardware Availability: Jul-2008
Tested by: Sun Microsystems Software Availability: Jul-2008

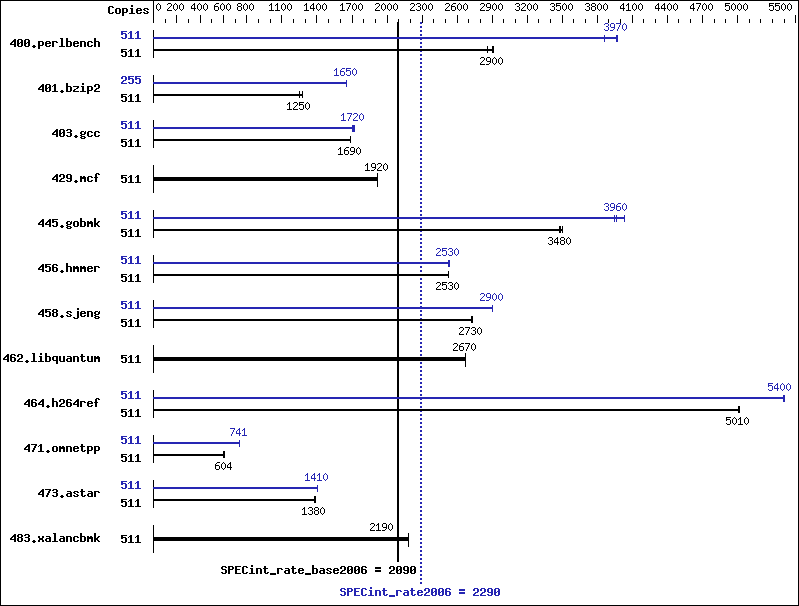

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2520
FPU: Integrated
CPU(s) enabled: 256 cores, 64 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 1 TB (512 x 2 GB)
Disk Subsystem: 12 TB RAID 0 Solaris Volume
24 x 500 GB 15000 RPM disk
Stripe interlace size 128Kbytes
Other Hardware: None
Software
Operating System: Solaris 10 5/08 with Patch 137111-03
Compiler: Sun Studio 12 with patches
124867-06, 124861-07, 124863-05
(see patch information below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 511 1744 2860 1717 2910 1719 2900 511 1292 3860 1257 3970 1258 3970
401.bzip2 511 3867 1280 3955 1250 3956 1250 255 1491 1650 1488 1650 1492 1650
403.gcc 511 2442 1680 2440 1690 2439 1690 511 2420 1700 2397 1720 2395 1720
429.mcf 511 2424 1920 2426 1920 2427 1920 511 2424 1920 2426 1920 2427 1920
445.gobmk 511 1529 3500 1544 3470 1540 3480 511 1353 3960 1358 3950 1328 4040
456.hmmer 511 1886 2530 1890 2520 1885 2530 511 1887 2530 1883 2530 1884 2530
458.sjeng 511 2267 2730 2266 2730 2268 2730 511 2131 2900 2132 2900 2130 2900
462.libquantum 511 3962 2670 3963 2670 3963 2670 511 3962 2670 3963 2670 3963 2670
464.h264ref 511 2254 5020 2256 5010 2255 5010 511 2095 5400 2093 5400 2098 5390
471.omnetpp 511 5285 604 5296 603 5287 604 511 4315 740 4312 741 4312 741
473.astar 511 2590 1380 2597 1380 2598 1380 511 2552 1410 2548 1410 2554 1400
483.xalancbmk 511 1614 2190 1614 2190 1617 2180 511 1614 2190 1614 2190 1617 2180

Compiler Invocation Notes

Sun Studio compiler patches are available at
    http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp

Submit Notes


Processes were assigned to specific processors using 'pbind' commands.  The config
file option 'submit' was used, along with a list of processors in the 'BIND'
variable, to generate the pbind commands.  (For details, please see the config file.)

Operating System Notes


Environment Variable Settings:

export LD_PRELOAD=mpss.so.1:madv.so.1
export MPSSHEAP=4MB
export MPSSSTACK=4MB
    Requests system to use 4 MB pages when possible.
export MADV access_lwp
    access_lwp requests that the next light weight process to touch
    the specified address range will access it most heavily.
ulimit -s 131072 was used to limit the space consumed
    by the stack (making more space available for the heap)

System Tunables (/etc/system parameters):

autoup=200
    Causes pages older than the listed number of seconds to
    be written by fsflush.
lpg_alloc_prefer=1
    Set lgroup page allocation to strongly prefer local pages

Other System Settings:

The webconsole service was turned off using
    svcadm disable webconsole

The SPEC toolset was bound to processors 1-511 using processor sets:
    psrset -c 1-511
    psrset -e 1 ksh

Platform Notes


Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

This result is measured on a Sun SPARC Enterprise M9000 Server.
Note that the Sun SPARC Enterprise M9000 and Fujitsu SPARC Enterprise
M9000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xprefetch_level=1   -xalias_level=std   -ll2amm

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xprefetch_level=2   -xalias_level=compatible   -ll2amm   -lfast

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=std   -xrestrict   -xprefetch=no   -lfast   -ll2amm
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=strong   -xprefetch=latx:5   -ll2amm
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=std   -ll2amm
429.mcf:  basepeak = yes
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=std   -xrestrict   -ll2amm
456.hmmer:  Same as 403.gcc
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -ll2amm
462.libquantum:  basepeak = yes
464.h264ref:  Same as 403.gcc

C++ benchmarks:

471.omnetpp:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=compatible   -ll2amm
473.astar:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=4M   -fma=fused   -xalias_level=compatible   -xprefetch=latx:3   -lfast   -ll2amm
483.xalancbmk:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.xml.
