SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/i120Ra-e1
(Intel Xeon L5410)

CPU2006 license: 9006 Test date: Jun-2008
Test sponsor: NEC Corporation Hardware Availability: May-2008
Tested by: NEC Corporation Software Availability: Nov-2007

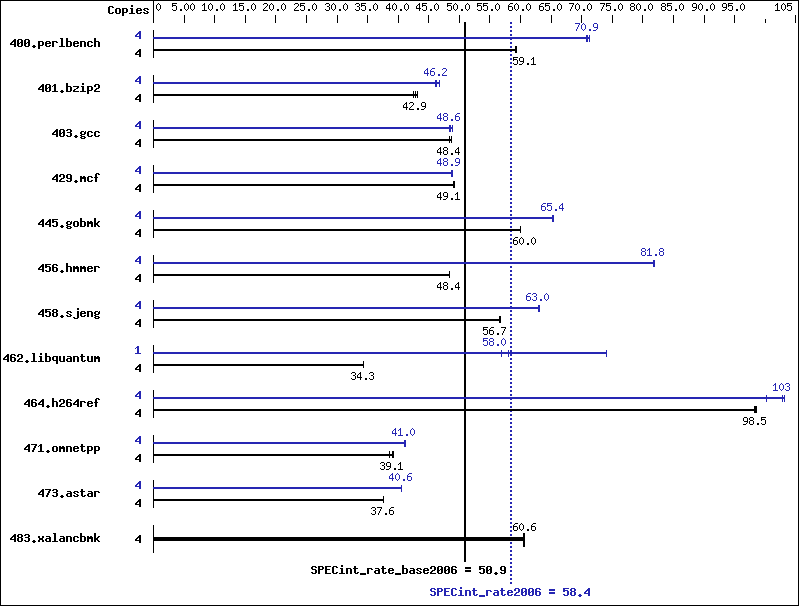

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5410
CPU Characteristics: 2.33 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz: 2333
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB PC2-5300P, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x80.0 GB SATAII, 7200RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ Compiler 10.1 for Linux
Build 20070913 Package ID: l_cc_p_10.1.008
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 661 59.1 661 59.1 659 59.3 4 552 70.8 549 71.2 551 70.9
401.bzip2 4 893 43.2 900 42.9 906 42.6 4 835 46.2 826 46.7 836 46.2
403.gcc 4 666 48.3 665 48.4 662 48.7 4 664 48.5 659 48.8 663 48.6
429.mcf 4 743 49.1 743 49.1 742 49.2 4 746 48.9 749 48.7 745 48.9
445.gobmk 4 699 60.0 699 60.1 699 60.0 4 642 65.4 643 65.3 641 65.4
456.hmmer 4 770 48.5 771 48.4 771 48.4 4 456 81.8 457 81.7 456 81.9
458.sjeng 4 853 56.7 854 56.6 853 56.8 4 769 62.9 767 63.1 769 63.0
462.libquantum 4 2414 34.3 2414 34.3 2414 34.3 1 280 74.1 364 57.0 357 58.0
464.h264ref 4 899 98.5 901 98.3 899 98.5 4 861 103   858 103   884 100
471.omnetpp 4 639 39.1 637 39.3 648 38.6 4 609 41.0 609 41.0 606 41.3
473.astar 4 748 37.6 747 37.6 747 37.6 4 693 40.5 692 40.6 692 40.6
483.xalancbmk 4 456 60.5 456 60.6 455 60.6 4 456 60.5 456 60.6 455 60.6

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
  OMP_NUM_THREADS set to number of cores

Platform Notes

Bios settings:
Hardware Prefetcher:          Disabled
Adjacent Cache Line Prefetch: Disabled
Intel SpeedStep Technology:   Disabled

General Notes

All benchmarks compiled in 32-bit mode except 401.bzip2,
456.hmmer, for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include
456.hmmer:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.xml.
