SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS V840, AMD Opteron 2346 HE (1.8 GHz)

SPECfp®2006 = 16.1

CPU2006 license: 22 Test date: Jun-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2008
Tested by: Fujitsu Siemens Computers Software Availability: May-2008

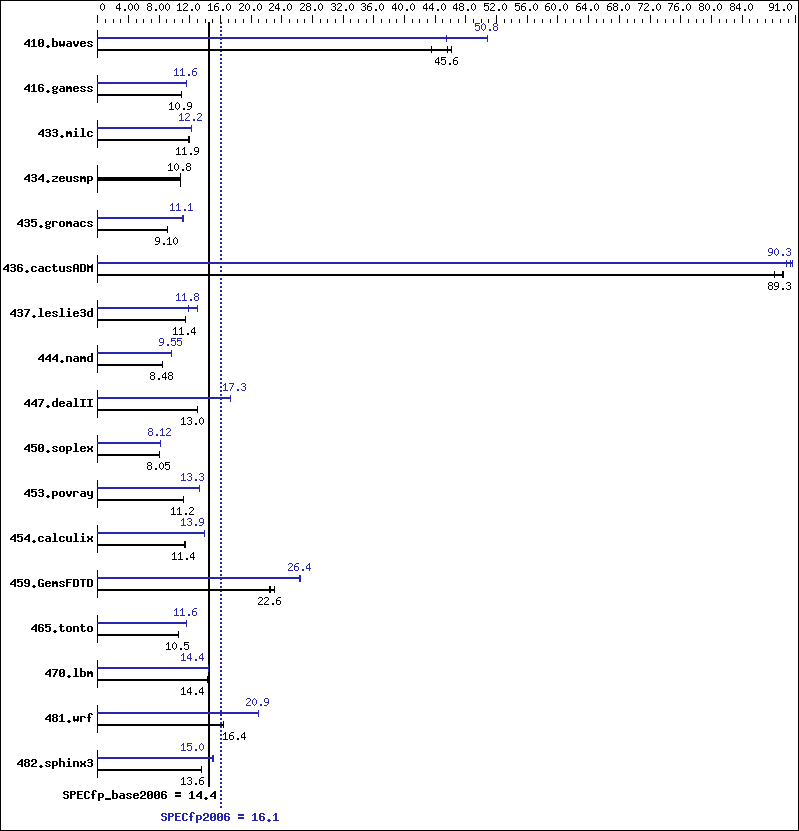

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2346 HE
CPU Characteristics:
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (8x2GB PC2-5300P, CL5, dual rank ECC)
Disk Subsystem: 1 x 400 GB SATA II, 7200 rpm
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Workstation Complete Version 7.2-1
PathScale Compiler Suite, Release 3.2 Beta
Auto Parallel: Yes
File System: ext3
System State: Multi-User SuSE Run Level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 295 46.1  312 43.5  298 45.6  268 50.8  299 45.4  268 50.8
416.gamess 1800 10.9  1802 10.9  1802 10.9  1698 11.5  1694 11.6  1695 11.6
433.milc 773 11.9  770 11.9  772 11.9  751 12.2  752 12.2  751 12.2
434.zeusmp 844 10.8  843 10.8  844 10.8  844 10.8  843 10.8  844 10.8
435.gromacs 787 9.08 784 9.10 784 9.11 643 11.1  644 11.1  642 11.1
436.cactusADM 134 89.4  135 88.2  134 89.3  132 90.6  132 90.3  133 89.8
437.leslie3d 823 11.4  824 11.4  825 11.4  795 11.8  794 11.8  720 13.0
444.namd 945 8.48 944 8.49 947 8.47 840 9.55 839 9.56 840 9.55
447.dealII 879 13.0  880 13.0  880 13.0  663 17.2  662 17.3  663 17.3
450.soplex 1035 8.06 1036 8.05 1036 8.05 1026 8.13 1028 8.12 1027 8.12
453.povray 475 11.2  474 11.2  477 11.2  401 13.3  402 13.2  401 13.3
454.calculix 726 11.4  725 11.4  725 11.4  595 13.9  594 13.9  595 13.9
459.GemsFDTD 474 22.4  460 23.1  470 22.6  403 26.3  402 26.4  402 26.4
465.tonto 936 10.5  940 10.5  935 10.5  846 11.6  848 11.6  848 11.6
470.lbm 955 14.4  952 14.4  962 14.3  954 14.4  955 14.4  955 14.4
481.wrf 683 16.3  683 16.4  682 16.4  533 21.0  535 20.9  534 20.9
482.sphinx3 1436 13.6  1436 13.6  1437 13.6  1297 15.0  1296 15.0  1298 15.0

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run
 ulimit -l 2457600
 PGI_HUGE_PAGES set to 150
 (Total number of huge pages available is 1200)

General Notes



For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fastsse   -Msmartalloc=huge:896   -Mconcur   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Msmartalloc=huge:896   -Mfprelaxed   -Mconcur   --zc_eh   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fastsse   -Mfprelaxed   -Msmartalloc=huge:896   -Mconcur   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fastsse   -Msmartalloc=huge:896   -Mconcur   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
470.lbm:  pathcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pgf95
459.GemsFDTD:  pathf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:896   -Msafeptr   -Mconcur   -Mfprelaxed   -Mipa=jobs:4   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -m3dnow   -apo
482.sphinx3:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge:896   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -fno-exceptions   -m32   -apo
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1   -OPT:malloc_alg=1   -CG:load_exe=0   -m32   -apo
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo

Fortran benchmarks:

410.bwaves:  -fastsse   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mconcur   -Mloop32   -Mpre   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=noaltcode   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
434.zeusmp:  basepeak = yes
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mconcur=noaltcode(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=fuse   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -apo
465.tonto:  -fastsse   -O4   -Mvect=noaltcode   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fastsse   -Msmartalloc=huge:896   -Mfprelaxed   -Mconcur   -Mfpapprox=rsqrt   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -fastsse   -Msmartalloc=huge:896   -Mfprelaxed   -Mconcur   -Mdse   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Msmartalloc=huge:896   -Mloop32   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -fastsse   -Mvect=noaltcode   -Msmartalloc   -Mprefetch=distance:8   -Mconcur=noaltcode   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 19:55:53 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2008.
