SPEC® CFP2006 Result

IBM Corporation

IBM System x3655 (AMD Opteron 2356)

SPECfp®2006 = 14.3

SPECfp_base2006 = 12.5

CPU2006 license:	11	Test date:	Apr-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Jul-2008
Tested by:	Advanced Micro Devices	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 2356
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	16 GB (8 x 2 GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 73.4 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ext3
System State:	Runlevel 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

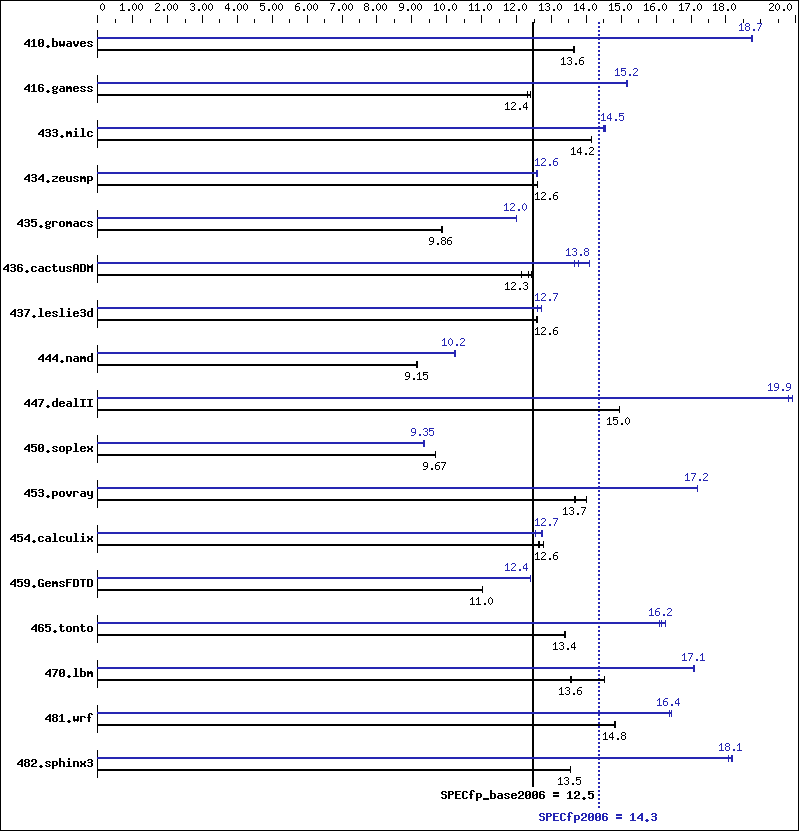

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	997	13.6	995	13.7	996	13.6	725	18.7	724	18.8	726	18.7
416.gamess	1590	12.3	1581	12.4	1579	12.4	1293	15.1	1289	15.2	1289	15.2
433.milc	649	14.1	649	14.2	649	14.2	633	14.5	633	14.5	631	14.6
434.zeusmp	723	12.6	722	12.6	721	12.6	723	12.6	722	12.6	721	12.6
435.gromacs	725	9.85	724	9.86	724	9.87	595	12.0	595	12.0	595	12.0
436.cactusADM	961	12.4	968	12.3	984	12.1	867	13.8	876	13.6	849	14.1
437.leslie3d	748	12.6	747	12.6	746	12.6	739	12.7	747	12.6	740	12.7
444.namd	877	9.14	876	9.15	876	9.15	785	10.2	785	10.2	783	10.2
447.dealII	765	15.0	765	15.0	766	14.9	575	19.9	575	19.9	578	19.8
450.soplex	863	9.67	863	9.66	862	9.67	892	9.35	892	9.35	893	9.34
453.povray	380	14.0	389	13.7	390	13.6	310	17.2	310	17.2	309	17.2
454.calculix	652	12.6	654	12.6	646	12.8	658	12.5	649	12.7	647	12.7
459.GemsFDTD	962	11.0	962	11.0	961	11.0	855	12.4	856	12.4	856	12.4
465.tonto	735	13.4	734	13.4	734	13.4	605	16.3	611	16.1	609	16.2
470.lbm	1014	13.5	1012	13.6	947	14.5	805	17.1	803	17.1	804	17.1
481.wrf	754	14.8	753	14.8	752	14.8	681	16.4	682	16.4	679	16.4
482.sphinx3	1438	13.6	1439	13.5	1440	13.5	1071	18.2	1079	18.1	1074	18.1

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 powersave -f was used to set the CPU frequency to its maximum.

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-w

C++ benchmarks:

-w

Fortran benchmarks:

-w

Benchmarks using both Fortran and C:

-w

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
433.milc:	pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=jobs:4 -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -m3dnow
482.sphinx3:	-march=barcelona -Ofast

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mipa=jobs:4(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mipa=jobs:4(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=jobs:4 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1
465.tonto:	-march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

Peak Other Flags

C benchmarks:

433.milc:

-w

C++ benchmarks:

444.namd:

-w

Fortran benchmarks:

410.bwaves:	-w
434.zeusmp:	-w

Benchmarks using both Fortran and C:

435.gromacs:	-w
454.calculix:	-w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.03.xml.

435.gromacs:	-fast -Mfpapprox=rsqrt -Mipa=jobs:4 -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:aggstr=0
454.calculix:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=jobs:4 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -OPT:malloc_alg=1 -m3dnow -LANG:copyinout=off -IPA:callee_limit=5000
