| CPU2006 license: | 9001 | Test date: | May-2008 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
| Tested by: | Itautec | Software Availability: | Jan-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5450 |
| CPU Characteristics: | |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (6 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 1 x SCSI, 73GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.1 Build 20080112 Package ID: l_cc_p_10.1.012 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run Level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.10.50 MicroQuill SmartHeap V8.1 |

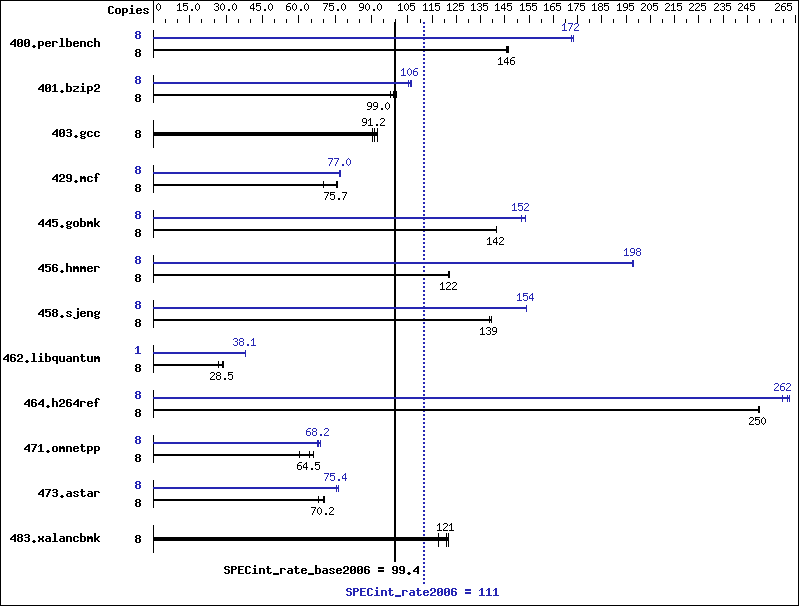

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 535 | 146 | 534 | 146 | 536 | 146 | 8 | 454 | 172 | 451 | 173 | 453 | 172 |
| 401.bzip2 | 8 | 788 | 97.9 | 780 | 99.0 | 771 | 100 | 8 | 735 | 105 | 728 | 106 | 726 | 106 |
| 403.gcc | 8 | 712 | 90.5 | 706 | 91.2 | 697 | 92.4 | 8 | 712 | 90.5 | 706 | 91.2 | 697 | 92.4 |
| 429.mcf | 8 | 1038 | 70.3 | 964 | 75.7 | 961 | 75.9 | 8 | 945 | 77.2 | 947 | 77.0 | 949 | 76.9 |
| 445.gobmk | 8 | 593 | 142 | 592 | 142 | 593 | 142 | 8 | 547 | 153 | 552 | 152 | 552 | 152 |
| 456.hmmer | 8 | 614 | 122 | 612 | 122 | 611 | 122 | 8 | 378 | 198 | 377 | 198 | 377 | 198 |
| 458.sjeng | 8 | 698 | 139 | 698 | 139 | 695 | 139 | 8 | 629 | 154 | 629 | 154 | 629 | 154 |
| 462.libquantum | 8 | 6176 | 26.8 | 5809 | 28.5 | 5763 | 28.8 | 1 | 544 | 38.1 | 544 | 38.1 | 544 | 38.1 |
| 464.h264ref | 8 | 709 | 250 | 709 | 250 | 708 | 250 | 8 | 683 | 259 | 675 | 262 | 677 | 262 |
| 471.omnetpp | 8 | 831 | 60.2 | 775 | 64.5 | 759 | 65.9 | 8 | 726 | 68.9 | 733 | 68.2 | 738 | 67.8 |
| 473.astar | 8 | 825 | 68.1 | 800 | 70.2 | 797 | 70.5 | 8 | 736 | 76.3 | 745 | 75.4 | 744 | 75.4 |
| 483.xalancbmk | 8 | 469 | 118 | 457 | 121 | 454 | 122 | 8 | 469 | 118 | 457 | 121 | 454 | 122 |
Compiler Invocation Notes
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. '/usr/bin/taskset' used to bind benchmark copies to processors, except for 462.libquantum at peak.
Platform Notes
BIOS configuration: Hardware Prefetch Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
