SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel QX9650, 3.00 GHz)

CPU2006 license: 55 Test date: Apr-2008
Test sponsor: Dell Inc. Hardware Availability: Jan-2008
Tested by: Dell Inc. Software Availability: Mar-2008

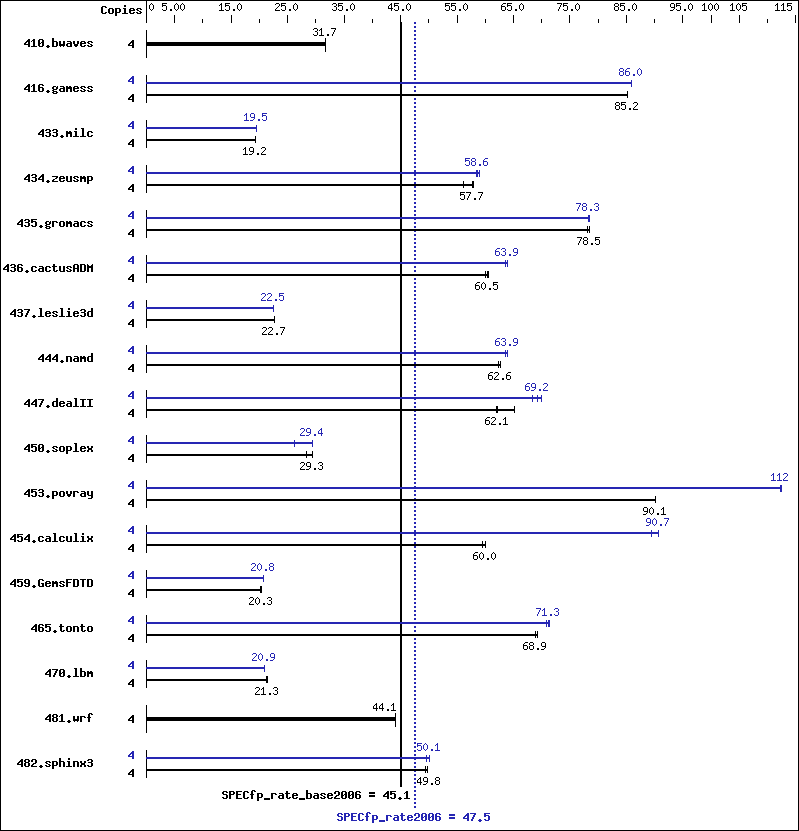

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9650
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB 800 MHz ECC CL6 DDR2)
Disk Subsystem: 1 x 160 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20080312 Package ID: w_cc_p_10.1.021
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20080312 Package ID: w_fc_p_10.1.021
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1715 31.7 1716 31.7 1714 31.7 4 1715 31.7 1716 31.7 1714 31.7
416.gamess 4 920 85.2 919 85.2 920 85.2 4 911 86.0 912 85.9 911 86.0
433.milc 4 1907 19.3 1908 19.2 1909 19.2 4 1885 19.5 1886 19.5 1886 19.5
434.zeusmp 4 647 56.2 628 58.0 630 57.7 4 621 58.6 617 59.0 623 58.4
435.gromacs 4 366 78.1 364 78.5 364 78.5 4 365 78.3 364 78.5 365 78.2
436.cactusADM 4 790 60.5 795 60.1 790 60.5 4 747 64.0 748 63.9 751 63.6
437.leslie3d 4 1658 22.7 1657 22.7 1654 22.7 4 1670 22.5 1672 22.5 1670 22.5
444.namd 4 515 62.3 512 62.6 512 62.6 4 505 63.6 502 63.9 501 64.0
447.dealII 4 737 62.1 738 62.0 703 65.1 4 661 69.2 670 68.3 654 70.0
450.soplex 4 1178 28.3 1136 29.4 1138 29.3 4 1273 26.2 1135 29.4 1133 29.4
453.povray 4 236 90.1 236 90.1 236 90.1 4 189 112   189 112   190 112
454.calculix 4 554 59.5 549 60.1 550 60.0 4 364 90.7 364 90.7 369 89.5
459.GemsFDTD 4 2095 20.3 2084 20.4 2087 20.3 4 2045 20.8 2041 20.8 2041 20.8
465.tonto 4 571 68.9 571 68.9 568 69.3 4 552 71.3 551 71.4 555 70.9
470.lbm 4 2579 21.3 2574 21.4 2574 21.3 4 2632 20.9 2630 20.9 2630 20.9
481.wrf 4 1014 44.0 1014 44.1 1012 44.1 4 1014 44.0 1014 44.1 1012 44.1
482.sphinx3 4 1579 49.4 1567 49.8 1565 49.8 4 1569 49.7 1556 50.1 1556 50.1

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 17:15:42 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 13 May 2008.
