SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T7400 (Intel Xeon X5482, 3.20 GHz)

SPECfp®2006 = 22.1

CPU2006 license: 55 Test date: Apr-2008
Test sponsor: Dell Inc. Hardware Availability: Jan-2008
Tested by: Dell Inc. Software Availability: Mar-2008

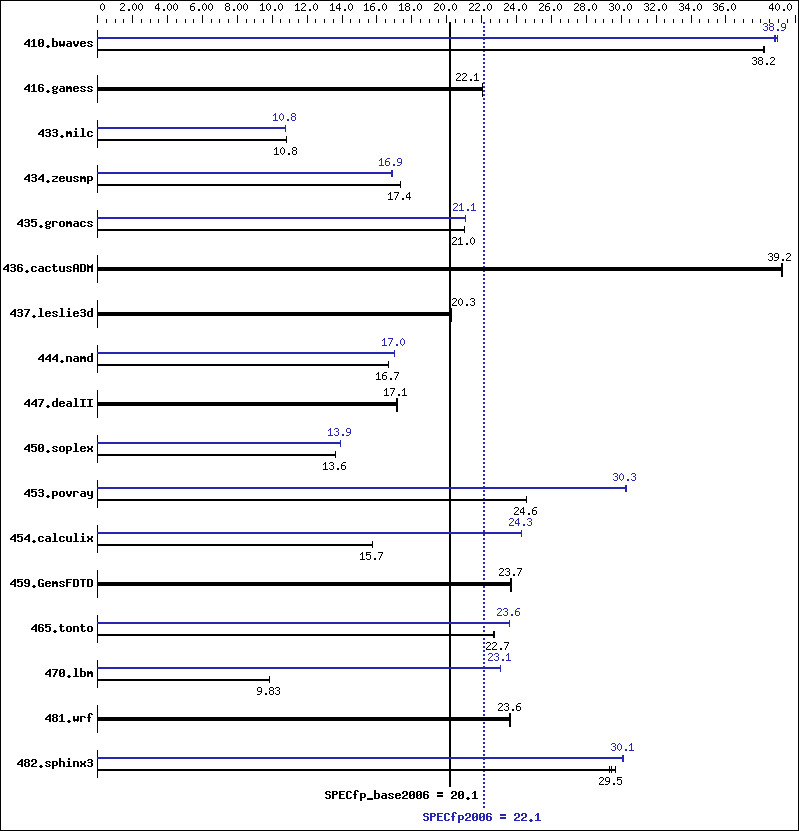

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5482
CPU Characteristics: 1600 MHz Bus Speed
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB 800 MHz CL5 FB-DIMM)
Disk Subsystem: 1 x 160 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20080312 Package ID: w_cc_p_10.1.021
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20080312 Package ID: w_fc_p_10.1.021
Microsoft Visual Studio 2005 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 356 38.2  355 38.2  356 38.1  351 38.8 349 39.0 350 38.9
416.gamess 887 22.1  888 22.1  888 22.0  887 22.1 888 22.1 888 22.0
433.milc 847 10.8  847 10.8  847 10.8  853 10.8 852 10.8 853 10.8
434.zeusmp 524 17.4  524 17.4  524 17.4  539 16.9 540 16.9 540 16.9
435.gromacs 339 21.0  339 21.0  339 21.0  339 21.1 339 21.1 339 21.1
436.cactusADM 304 39.3  305 39.2  305 39.2  304 39.3 305 39.2 305 39.2
437.leslie3d 463 20.3  466 20.2  464 20.3  463 20.3 466 20.2 464 20.3
444.namd 481 16.7  481 16.7  481 16.7  471 17.0 471 17.0 471 17.0
447.dealII 668 17.1  667 17.2  668 17.1  668 17.1 667 17.2 668 17.1
450.soplex 611 13.6  611 13.6  611 13.6  599 13.9 599 13.9 598 13.9
453.povray 216 24.6  216 24.6  216 24.6  176 30.3 176 30.3 176 30.3
454.calculix 524 15.7  524 15.7  524 15.7  340 24.3 340 24.3 340 24.3
459.GemsFDTD 449 23.7  448 23.7  448 23.7  449 23.7 448 23.7 448 23.7
465.tonto 433 22.7  433 22.7  433 22.7  417 23.6 417 23.6 417 23.6
470.lbm 1399 9.82 1397 9.83 1395 9.85 595 23.1 596 23.1 595 23.1
481.wrf 474 23.6  473 23.6  473 23.6  474 23.6 473 23.6 473 23.6
482.sphinx3 662 29.5  664 29.3  656 29.7  647 30.1 648 30.1 647 30.1

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64m.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   -Qauto-ilp32   -Qparallel   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.xml.
