| CPU2006 license: | 22 | Test date: | Apr-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | May-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | May-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2356 |
| CPU Characteristics: | |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 2 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (8x2GB PC2-5300P, CL5, dual rank ECC) |
| Disk Subsystem: | 1 x 400 GB SATA II |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | PGI Server Complete Version 7.2 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User SuSE Run Level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | binutils 2.18.50 Microquill SmartHeap 8.1 32-bit Library for Linux |

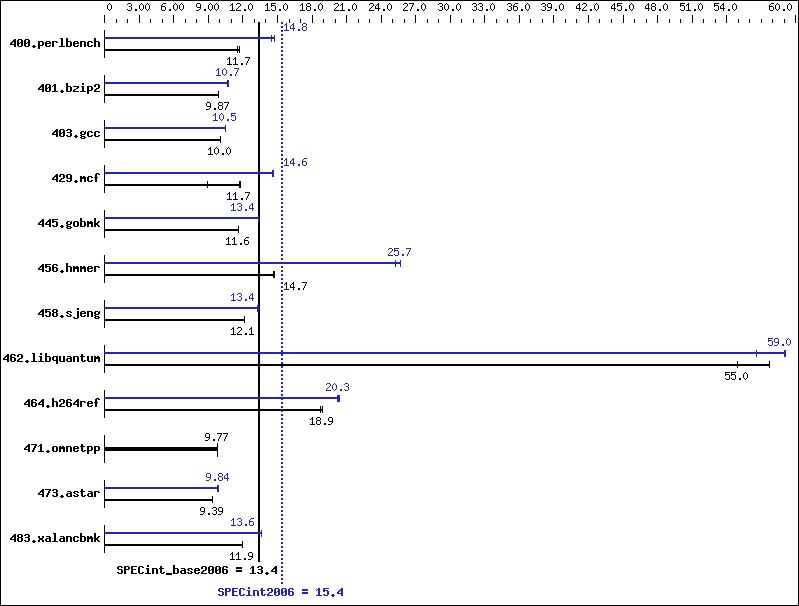

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 849 | 11.5 | 836 | 11.7 | 835 | 11.7 | 661 | 14.8 | 661 | 14.8 | 675 | 14.5 |
| 401.bzip2 | 977 | 9.87 | 974 | 9.90 | 980 | 9.85 | 903 | 10.7 | 902 | 10.7 | 900 | 10.7 |
| 403.gcc | 803 | 10.0 | 804 | 10.0 | 803 | 10.0 | 770 | 10.5 | 770 | 10.5 | 770 | 10.5 |
| 429.mcf | 776 | 11.8 | 1027 | 8.88 | 778 | 11.7 | 625 | 14.6 | 624 | 14.6 | 622 | 14.7 |
| 445.gobmk | 901 | 11.6 | 901 | 11.6 | 901 | 11.6 | 784 | 13.4 | 784 | 13.4 | 783 | 13.4 |
| 456.hmmer | 637 | 14.6 | 632 | 14.8 | 633 | 14.7 | 369 | 25.3 | 363 | 25.7 | 363 | 25.7 |
| 458.sjeng | 996 | 12.1 | 996 | 12.1 | 997 | 12.1 | 913 | 13.3 | 906 | 13.4 | 905 | 13.4 |
| 462.libquantum | 359 | 57.7 | 377 | 55.0 | 377 | 55.0 | 351 | 59.1 | 351 | 59.0 | 366 | 56.6 |
| 464.h264ref | 1172 | 18.9 | 1179 | 18.8 | 1169 | 18.9 | 1094 | 20.2 | 1091 | 20.3 | 1086 | 20.4 |
| 471.omnetpp | 640 | 9.77 | 639 | 9.78 | 640 | 9.76 | 640 | 9.77 | 639 | 9.78 | 640 | 9.76 |
| 473.astar | 747 | 9.39 | 747 | 9.40 | 747 | 9.39 | 716 | 9.81 | 713 | 9.84 | 711 | 9.87 |
| 483.xalancbmk | 578 | 11.9 | 579 | 11.9 | 576 | 12.0 | 508 | 13.6 | 506 | 13.6 | 505 | 13.7 |
Operating System Notes
powersave -f is applied to set CPU to maximum frequency prior to run stacksize is set to unlimited prior to run ulimit -l 2457600 PGI_HUGE_PAGES set to 150 (Total number of huge pages available is 1200)
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fastsse -Msmartalloc=huge:896 -Mloop32 -Mconcur=innermost -Mfprelaxed -Mipa=jobs:4 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi |
C++ benchmarks:
| -fastsse -Msmartalloc=huge:896 -Mloop32 -Mfprelaxed --zc_eh -Mipa=jobs:4 -Mipa=fast -Mipa=inline -tp barcelona -Bstatic_pgi |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=jobs:4(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -fastsse -O4 -Msmartalloc=huge:896 -Msafeptr=global -Mloop32 -Mfprelaxed --zc_eh -tp barcelona -Bstatic_pgi |
| 483.xalancbmk: | --zc_eh -fastsse -O4 -Mfprelaxed -Msmartalloc -Mipa=jobs:4 -Mipa=fast -Mipa=inline -tp barcelona -Bstatic_pgi -lsmartheap |
