| CPU2006 license: | 20 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Feb-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 2.00 GHz, 2x6 MB L2 shared, 1333 MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

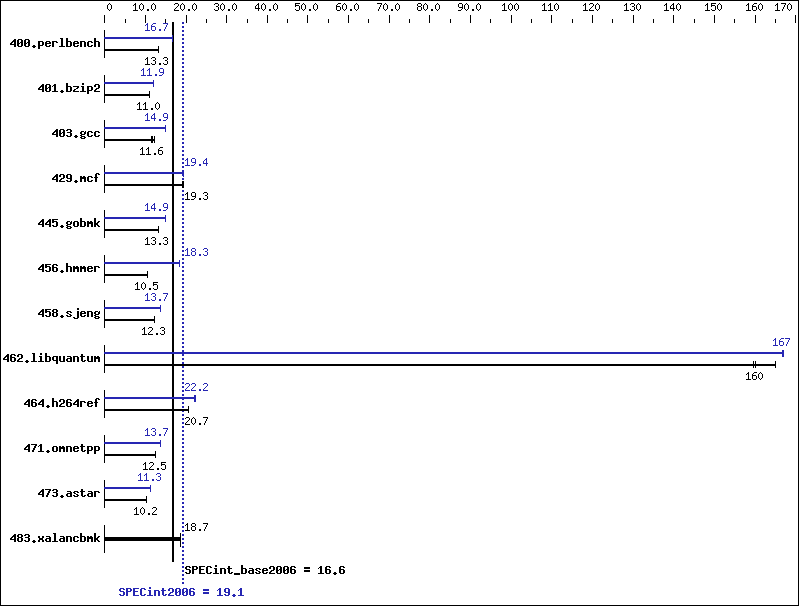

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 736 | 13.3 | 737 | 13.3 | 738 | 13.2 | 585 | 16.7 | 585 | 16.7 | 588 | 16.6 |
| 401.bzip2 | 875 | 11.0 | 876 | 11.0 | 882 | 10.9 | 811 | 11.9 | 812 | 11.9 | 809 | 11.9 |
| 403.gcc | 693 | 11.6 | 662 | 12.2 | 692 | 11.6 | 541 | 14.9 | 540 | 14.9 | 543 | 14.8 |
| 429.mcf | 473 | 19.3 | 474 | 19.3 | 475 | 19.2 | 469 | 19.4 | 469 | 19.4 | 468 | 19.5 |
| 445.gobmk | 789 | 13.3 | 791 | 13.3 | 790 | 13.3 | 706 | 14.9 | 706 | 14.9 | 707 | 14.8 |
| 456.hmmer | 889 | 10.5 | 889 | 10.5 | 889 | 10.5 | 510 | 18.3 | 510 | 18.3 | 510 | 18.3 |
| 458.sjeng | 981 | 12.3 | 980 | 12.3 | 987 | 12.3 | 885 | 13.7 | 879 | 13.8 | 884 | 13.7 |
| 462.libquantum | 125 | 165 | 129 | 160 | 130 | 160 | 124 | 167 | 124 | 167 | 124 | 167 |
| 464.h264ref | 1070 | 20.7 | 1069 | 20.7 | 1068 | 20.7 | 993 | 22.3 | 995 | 22.2 | 997 | 22.2 |
| 471.omnetpp | 500 | 12.5 | 500 | 12.5 | 503 | 12.4 | 456 | 13.7 | 457 | 13.7 | 456 | 13.7 |
| 473.astar | 680 | 10.3 | 687 | 10.2 | 685 | 10.2 | 626 | 11.2 | 618 | 11.4 | 622 | 11.3 |
| 483.xalancbmk | 368 | 18.7 | 368 | 18.8 | 369 | 18.7 | 368 | 18.7 | 368 | 18.8 | 369 | 18.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores
Platform Notes
Bios settings: Intel SpeedStep Technology: Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode The NEC Express5800/120Lj(Intel Xeon E5405) and the Bull NovaScale T860 E1(Intel Xeon E5405,2.00GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/120Lj(Intel Xeon E5405) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
