SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec LX201 (Intel Xeon E5410)

CPU2006 license: 9001 Test date: Apr-2008
Test sponsor: Itautec Hardware Availability: Dec-2007
Tested by: Itautec Software Availability: Jan-2008

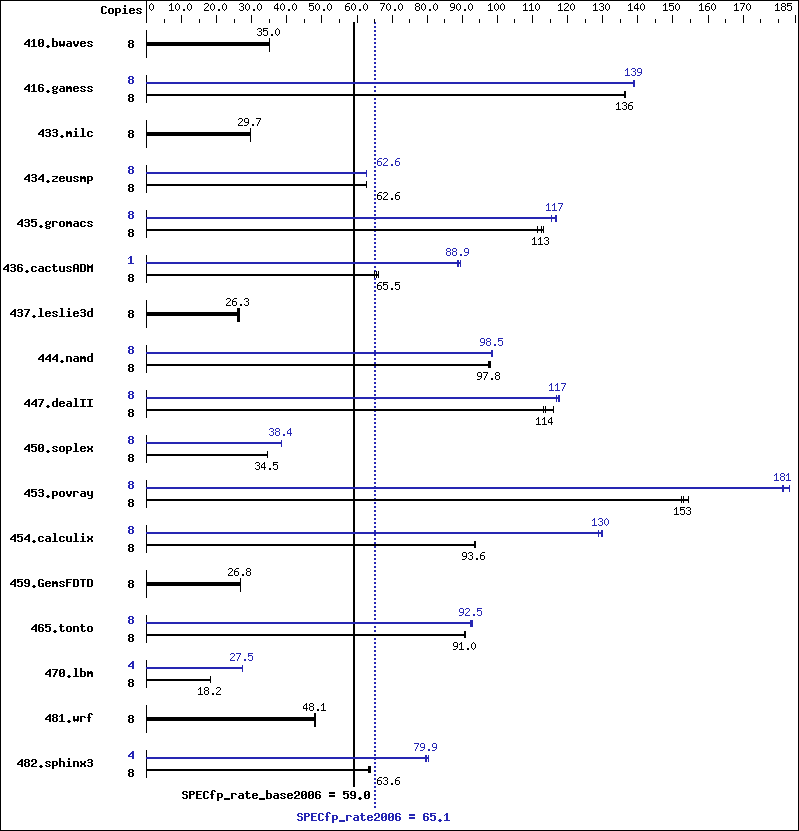

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5410
CPU Characteristics:
CPU MHz: 2330
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (8 * 1 GB PC2-5300 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: 1 x SATA-2, 160GB, 7200 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux version
10.1
Build 20080112 Package ID: l_cc_p_10.1.012,
l_fc_p_10.1.012
Auto Parallel: Yes
File System: ReiserFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.10.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3101 35.1 3114 34.9 3108 35.0 8 3101 35.1 3114 34.9 3108 35.0
416.gamess 8 1148 136   1148 136   1150 136   8 1127 139   1129 139   1125 139
433.milc 8 2486 29.5 2472 29.7 2476 29.7 8 2486 29.5 2472 29.7 2476 29.7
434.zeusmp 8 1163 62.6 1161 62.7 1164 62.6 8 1159 62.8 1164 62.5 1164 62.6
435.gromacs 8 513 111   505 113   507 113   8 489 117   490 117   495 115
436.cactusADM 8 1472 65.0 1448 66.0 1459 65.5 1 135 88.6 134 88.9 134 89.4
437.leslie3d 8 2912 25.8 2854 26.3 2846 26.4 8 2912 25.8 2854 26.3 2846 26.4
444.namd 8 658 97.5 655 97.9 656 97.8 8 651 98.6 653 98.3 651 98.5
447.dealII 8 789 116   809 113   804 114   8 778 118   780 117   783 117
450.soplex 8 1931 34.5 1940 34.4 1936 34.5 8 1737 38.4 1740 38.3 1737 38.4
453.povray 8 278 153   276 154   279 152   8 232 183   235 181   235 181
454.calculix 8 705 93.6 707 93.4 705 93.6 8 507 130   509 130   512 129
459.GemsFDTD 8 3157 26.9 3167 26.8 3163 26.8 8 3157 26.9 3167 26.8 3163 26.8
465.tonto 8 866 91.0 868 90.7 865 91.0 8 853 92.2 847 93.0 851 92.5
470.lbm 8 6031 18.2 6031 18.2 6032 18.2 4 2003 27.4 2001 27.5 2001 27.5
481.wrf 8 1854 48.2 1859 48.1 1867 47.9 8 1854 48.2 1859 48.1 1867 47.9
482.sphinx3 8 2451 63.6 2446 63.7 2467 63.2 4 976 79.9 971 80.3 979 79.6

Compiler Invocation Notes

   OMP_NUM_THREADS set to number of cores
   KMP_STACK_SIZE set to 64M
   KMP_AFFINITY set to physical,0

Operating System Notes

  'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
  '/usr/bin/taskset' used to bind benchmark copies to processors, except for 436.cactusADM at peak.

Platform Notes

  BIOS configuration:
  Hardware Prefetch Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.012/bin/icc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.012/bin/icpc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.20090713.00.xml.
