| CPU2006 license: | 9001 | Test date: | Apr-2008 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
| Tested by: | Itautec | Software Availability: | Jan-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5410 |
| CPU Characteristics: | |
| CPU MHz: | 2330 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 1 x SCSI, 73GB, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.1 Build 20080112 Package ID: l_cc_p_10.1.012 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run Level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.10.50 MicroQuill SmartHeap V8.1 |

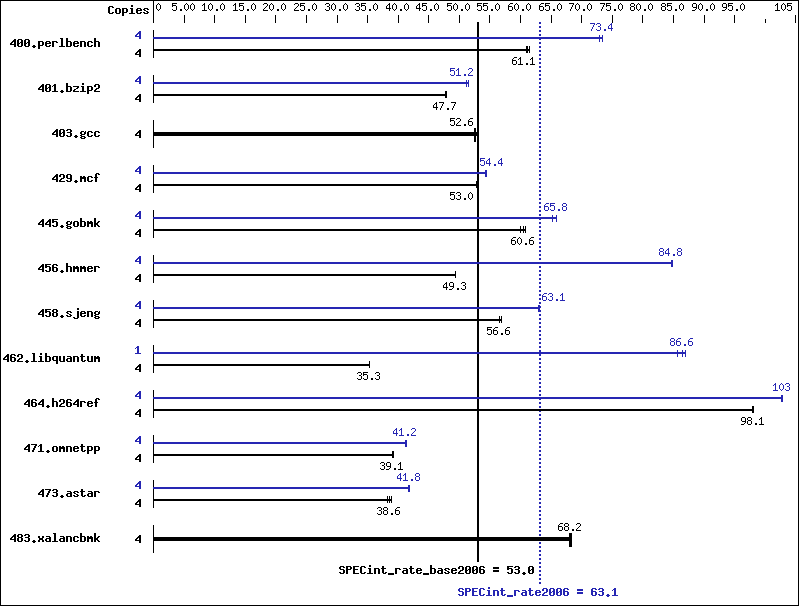

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 641 | 60.9 | 640 | 61.1 | 635 | 61.5 | 4 | 532 | 73.4 | 536 | 73.0 | 532 | 73.4 |
| 401.bzip2 | 4 | 809 | 47.7 | 809 | 47.7 | 807 | 47.8 | 4 | 755 | 51.1 | 749 | 51.6 | 754 | 51.2 |
| 403.gcc | 4 | 608 | 53.0 | 613 | 52.5 | 613 | 52.6 | 4 | 608 | 53.0 | 613 | 52.5 | 613 | 52.6 |
| 429.mcf | 4 | 688 | 53.0 | 689 | 53.0 | 690 | 52.9 | 4 | 672 | 54.3 | 671 | 54.4 | 670 | 54.4 |
| 445.gobmk | 4 | 690 | 60.8 | 693 | 60.6 | 700 | 60.0 | 4 | 643 | 65.2 | 637 | 65.8 | 637 | 65.9 |
| 456.hmmer | 4 | 757 | 49.3 | 757 | 49.3 | 757 | 49.3 | 4 | 440 | 84.7 | 440 | 84.8 | 440 | 84.9 |
| 458.sjeng | 4 | 856 | 56.5 | 851 | 56.9 | 855 | 56.6 | 4 | 767 | 63.1 | 769 | 63.0 | 766 | 63.2 |
| 462.libquantum | 4 | 2350 | 35.3 | 2350 | 35.3 | 2352 | 35.2 | 1 | 242 | 85.7 | 239 | 86.6 | 238 | 87.0 |
| 464.h264ref | 4 | 904 | 97.9 | 902 | 98.2 | 902 | 98.1 | 4 | 862 | 103 | 861 | 103 | 860 | 103 |
| 471.omnetpp | 4 | 638 | 39.2 | 639 | 39.1 | 639 | 39.1 | 4 | 605 | 41.3 | 606 | 41.2 | 606 | 41.2 |
| 473.astar | 4 | 727 | 38.6 | 722 | 38.9 | 733 | 38.3 | 4 | 673 | 41.7 | 671 | 41.8 | 670 | 41.9 |
| 483.xalancbmk | 4 | 405 | 68.2 | 404 | 68.3 | 405 | 68.1 | 4 | 405 | 68.2 | 404 | 68.3 | 405 | 68.1 |
Compiler Invocation Notes
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. '/usr/bin/taskset' used to bind benchmark copies to processors, except for 462.libquantum at peak.
Platform Notes
BIOS configuration: Hardware Prefetch Enabled
General Notes
This result was measured on the Servidor Itautec MX201. The Servidor Itautec MX221 and the Servidor Itautec MX201 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
