SPEC® CFP2006 Result

Fujitsu Limited

PRIMEQUEST 580A

SPECfp®_rate2006 = 683

SPECfp_rate_base2006 = 667

CPU2006 license:	19	Test date:	Mar-2008
Test sponsor:	Fujitsu Limited	Hardware Availability:	May-2008
Tested by:	Fujitsu Limited	Software Availability:	Feb-2008

Hardware
CPU Name:	Dual-Core Intel Itanium 9130M
CPU Characteristics:	1.66GHz/8MB, 667MHz FSB
CPU MHz:	1667
FPU:	Integrated
CPU(s) enabled:	64 cores, 32 chips, 2 cores/chip
CPU(s) orderable:	2-32 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	4 MB I+D on chip per core
Other Cache:	None
Memory:	512 GB (256 x 2GB DDR2-667 DIMMs)
Disk Subsystem:	2 x 147GB (SCSI Ultra 320, 10000rpm) No RAID configuration
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux 5.1, Kernel 2.6.18-53.el5 on an ia64
Compiler:	Intel C++ Compiler for Linux 10.1 (Build 20080112) Intel Fortran Compiler for Linux 10.1 (Build 20080112)
Auto Parallel:	No
File System:	ext2
System State:	Runlevel 1 (single user mode)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

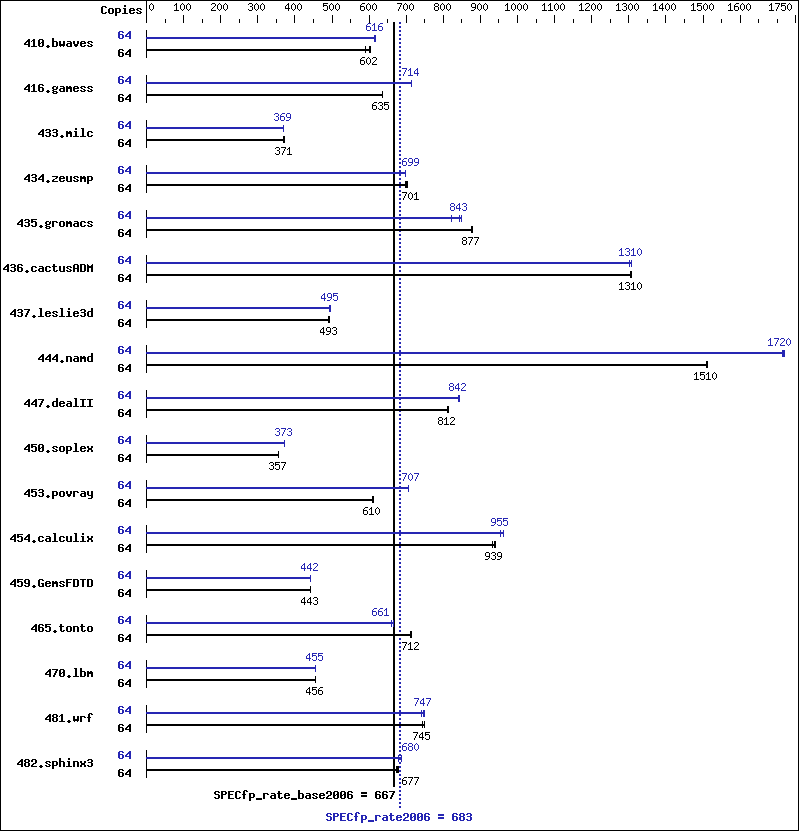

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	64	1472	591	1444	602	1442	603	64	1407	618	1412	616	1415	615
416.gamess	64	1971	636	1972	635	1973	635	64	1754	714	1754	715	1754	714
433.milc	64	1586	370	1583	371	1583	371	64	1591	369	1591	369	1586	370
434.zeusmp	64	834	698	830	701	827	704	64	834	699	834	699	834	698
435.gromacs	64	520	879	522	875	521	877	64	539	848	555	823	542	843
436.cactusADM	64	585	1310	585	1310	586	1300	64	588	1300	585	1310	585	1310
437.leslie3d	64	1216	495	1220	493	1226	491	64	1215	495	1214	496	1219	493
444.namd	64	339	1510	340	1510	340	1510	64	299	1720	299	1720	299	1710
447.dealII	64	901	812	900	814	901	812	64	871	841	869	843	870	842
450.soplex	64	1498	356	1496	357	1497	357	64	1430	373	1431	373	1432	373
453.povray	64	559	610	557	612	558	610	64	482	707	482	707	482	707
454.calculix	64	562	940	563	939	566	933	64	553	955	554	954	548	963
459.GemsFDTD	64	1533	443	1533	443	1534	443	64	1535	442	1536	442	1538	442
465.tonto	64	880	715	884	712	884	712	64	953	661	953	661	944	667
470.lbm	64	1929	456	1932	455	1928	456	64	1927	456	1931	455	1931	455
481.wrf	64	953	750	961	744	960	745	64	954	749	957	747	965	741
482.sphinx3	64	1853	673	1843	677	1835	680	64	1835	680	1816	687	1836	679

General Notes


 Processes are bound to CPUs using taskset.

 limit stacksize unlimited

 Memory system is in "Non Mirror Mode".

 The following 2 environment variables were set
     MALLOC_MMAP_MAX_=0
     MALLOC_TRIM_THRESHOLD_=-1
 This will cause use of sbrk() calls instead of
 mmap() calls to get memory from the system.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -fno-alias -ansi-alias
470.lbm:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -ansi-alias
482.sphinx3:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -fno-alias -no-opt-prefetch-initial-values -ansi-alias

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch -auto-ilp32 -fno-alias -ansi-alias
447.dealII:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-alias-args -no-opt-loadpair -ansi-alias
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -auto-ilp32 -no-alias-args -ansi-alias
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -ansi-alias

Fortran benchmarks:

410.bwaves:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch
434.zeusmp:	Same as 410.bwaves
437.leslie3d:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-opt-loadpair
459.GemsFDTD:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-prefetch

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-prefetch -fno-alias -ansi-alias
436.cactusADM:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -ansi-alias
454.calculix:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -inline-factor=150 -no-opt-prefetch-initial-values -ansi-alias
481.wrf:	-fast -IPF-fp-relaxed -opt-prefetch-next-iteration -no-opt-loadpair -ansi-alias

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ580A.ipf.linux.flags.xml.
