SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4140

CPU2006 license: 6 Test date: Mar-2008
Test sponsor: Sun Microsystems Hardware Availability: Apr-2008
Tested by: Sun Microsystems Software Availability: Dec-2007

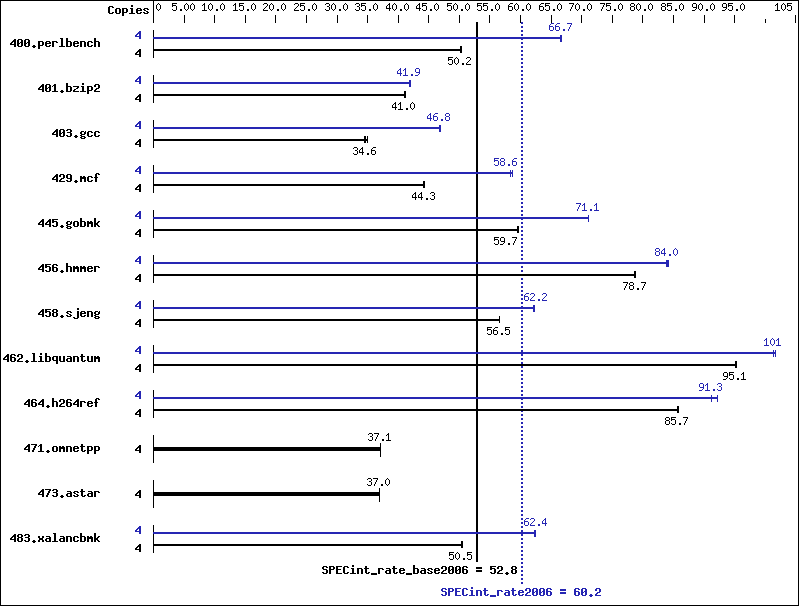

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB, DDR2-667 CL5 Reg Dual Rank)
Disk Subsystem: SAS, 72 GB,10 K RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 SP1 64-bit kernel
Compiler: The Portland Group (PGI)
PGI pgcc 7.1-3 C Compiler
PGI pgCC 7.1-3 C++ Compiler
The PathScale Compiler v3.0
PathScale pathcc 3.0 C Compiler
PathScale pathCC 3.0 C++ Compiler
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 776 50.4 778 50.2 780 50.1 4 586 66.7 588 66.5 586 66.7
401.bzip2 4 940 41.0 940 41.0 937 41.2 4 919 42.0 922 41.9 923 41.8
403.gcc 4 919 35.1 932 34.6 930 34.6 4 688 46.8 690 46.7 687 46.8
429.mcf 4 823 44.3 827 44.1 824 44.3 4 626 58.3 621 58.7 622 58.6
445.gobmk 4 706 59.5 703 59.7 703 59.7 4 590 71.1 590 71.1 590 71.1
456.hmmer 4 474 78.7 474 78.8 474 78.7 4 443 84.2 445 83.8 444 84.0
458.sjeng 4 857 56.5 857 56.5 857 56.5 4 778 62.2 779 62.1 778 62.2
462.libquantum 4 870 95.3 871 95.1 872 95.1 4 815 102   818 101   818 101
464.h264ref 4 1031 85.9 1032 85.7 1033 85.7 4 960 92.2 970 91.3 971 91.2
471.omnetpp 4 673 37.1 673 37.1 673 37.1 4 673 37.1 673 37.1 673 37.1
473.astar 4 759 37.0 760 37.0 759 37.0 4 759 37.0 760 37.0 759 37.0
483.xalancbmk 4 546 50.5 547 50.5 547 50.4 4 442 62.5 443 62.3 443 62.4

Operating System Notes

 'ulimit -s unlimited' used to set environment stack size
 'ulimit -l 2457600' was used to set environment lock pages quantity
 'numactl' was used to bind copies to the cores
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 Environment variable PGI_HUGE_PAGES set to 150

Platform Notes

Default BIOS configurations were used.

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mfprelaxed   -Msmartalloc=huge:840   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:448   --zc_eh   -tp k8   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
400.perlbench:  pathcc
403.gcc:  pathcc
445.gobmk:  pathcc
464.h264ref:  pathcc

C++ benchmarks (except as noted below):

 pgcpp
483.xalancbmk:  pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:opt=0
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:448   -tp k8-64   -Bstatic_pgi
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -fastsse   -Mipa=fast   -Mipa=inline:1   -Msmartalloc=huge:420   -tp k8    -Bstatic_pgi
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -fast   -Msmartalloc=huge:448   -Mfprelaxed   -Msafeptr   -Mipa=const   -Mipa=ptr   -Mipa=arg   -tp k8-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline:1(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -Msmartalloc=huge:448   -Mfprelaxed   -tp k8-64   -Bstatic_pgi
462.libquantum:  -fast   -Mfprelaxed   -Msmartalloc=huge:448   -Munroll=m:4   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Bstatic_pgi
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  basepeak = yes
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/data1/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

 -w
400.perlbench:  No flags used
403.gcc:  No flags used
445.gobmk:  No flags used
464.h264ref:  No flags used

C++ benchmarks (except as noted below):

 -w
483.xalancbmk:  No flags used

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd814GH-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd814GH-flags.xml.
